Non-Contact Measurement: Employs capacitive sensing technology, free from mechanical wear and unaffected by fuel impurities, ensuring high reliability.
High-Precision Measurement: Capable of millimeter-level accuracy in fuel level measurement.
Wireless Connectivity: Utilizes Bluetooth Low Energy (BLE) 5.x technology for stable and reliable wireless data transmission, with backward compatibility for Bluetooth 4.0 and above.
Ultra-Long Battery Life: Powered by two 3.6V batteries, offering an average lifespan of 5-7 years (actual lifespan may vary depending on environmental temperature and other factors).
Low-Power Design: Optimized circuit design and low-power Bluetooth technology extend battery life.
Easy Installation: Simple and quick to install.
Customizable Length: Sensor length can be tailored to specific application needs, with standard lengths of 700mm and 1000mm, and a maximum length of up to 1500mm.
OTA Firmware Updates: Supports wireless firmware upgrades via DFU (Device Firmware Upgrade) software, facilitating maintenance and feature enhancements.
APP Configuration: Provides a Bluetooth APP for convenient user setup of empty and full fuel levels, as well as sensor functionality testing.

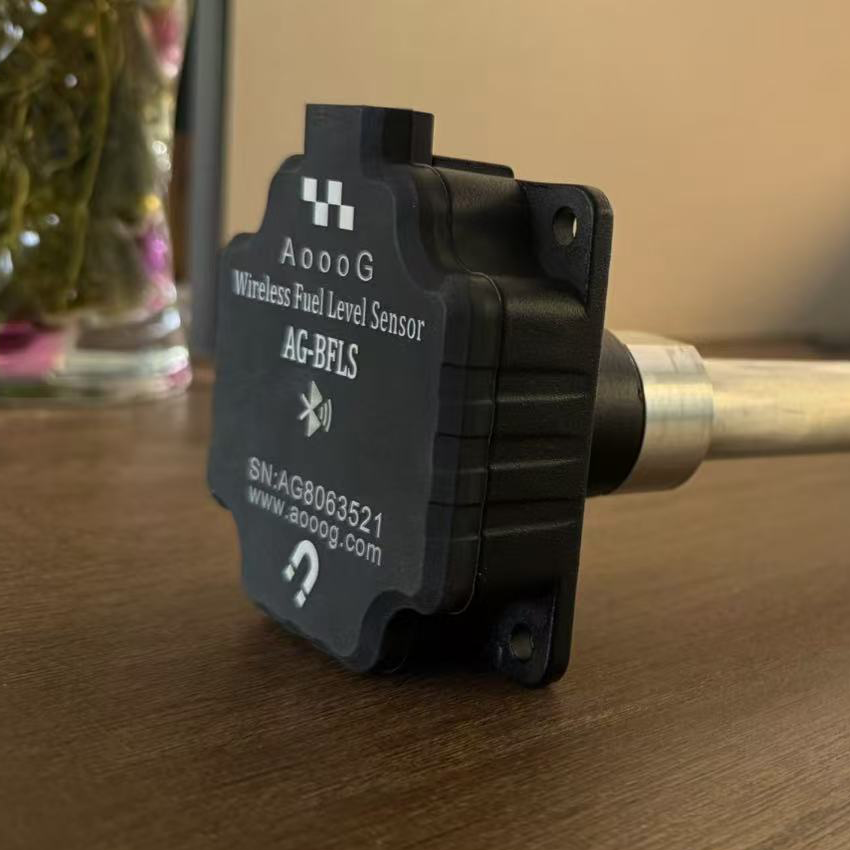

AoooG AG-BFLS – Bluetooth Wireless Fuel Level Sensor
The AG-BFLS is a wireless capacitive fuel-level sensor from AoooG designed for monitoring fuel in vehicles, trucks, generator sets, construction machinery, agricultural equipment, and stationary fuel/storage tanks. It uses Bluetooth Low Energy (BLE), so it can transmit fuel-level data to a compatible tracker or Bluetooth receiver without requiring an external communication cable. DongGuan AoooG Co.,LTD
Specification
Details
Model
AG-BFLS
Product Type
Wireless Bluetooth Capacitive Fuel Level Sensor
Measurement Technology
Capacitive
Output / Interface
Bluetooth Low Energy (BLE)
Communication Protocol
AoooG BLE / Dominator BT
Data Transmission Interval
5 seconds on firmware V8.0
Measurement Error
≤1%
Advertised Accuracy
Up to 99.5%
Resolution
Detects level changes below 1 mm
Wireless Range
≥15 m in normal unobstructed conditions
Power Supply
Internal lithium battery; no external power cable required
Battery Service Life
Average 3–5 years, depending on temperature and operating conditions
Protection Rating
IP67
Probe Length
Made to order; 700 mm / 1000 mm and customized lengths are marketed
Adjustable Probe
Yes; probe can be shortened according to installation instructions
Dimensions
90 × 80 × (L + 38) mm, where L is sensor/probe length
Maximum Weight
Approx. 0.51 kg
Compatible Liquids
Non-conductive fuels/liquids such as diesel and other light oils
Not Suitable For
Conductive liquids such as water
Configuration
Fuel Master mobile application
Mobile Platforms
Android, iPhone and iPad; compatible Apple-silicon Macs also supported
AoooG’s dedicated AG-BFLS technical page specifies ≤1% measurement error, IP67 protection, at least 15 m BLE range, internal lithium battery and an average 3–5 year battery service life. Its broader product page markets the sensor as having up to 99.5% accuracy and standard 700 mm/1000 mm probe options. DongGuan AoooG Co.,LTD
Fuel monitoring and integration
The sensor can be used with a compatible BLE-enabled GPS tracker/gateway to send fuel information into a fleet-management or monitoring platform. The platform can then use tank calibration to turn level measurements into useful fuel-volume information and support analysis of refuelling or changes in fuel level. AoooG specifically advises confirming that the chosen tracker supports the AG-BFLS Bluetooth protocol before ordering. DongGuan AoooG Co.,LTD
The Fuel Master application is provided for sensor setup, calibration and testing. It can display fuel level and sensor information and allows installers to configure parameters and establish empty/full calibration references. DongGuan AoooG Co.,LTD
Suitable applications
It is particularly suitable for fleet fuel monitoring, trucks and commercial vehicles, diesel generators, construction equipment, agricultural machinery, marine applications and stationary diesel/storage tanks. The wireless design is useful where running an additional power/data cable to the tank is undesirable. DongGuan AoooG Co.,LTD
Quotation-ready description: AoooG AG-BFLS Wireless Bluetooth Capacitive Fuel Level Sensor – BLE communication, ≤1% measurement error, IP67 protection, internal lithium battery, ≥15 m wireless range, configurable/cuttable probe, Fuel Master mobile configuration and calibration, suitable for diesel fuel tanks, fleet vehicles, generators, construction machinery and stationary fuel-storage monitoring.
