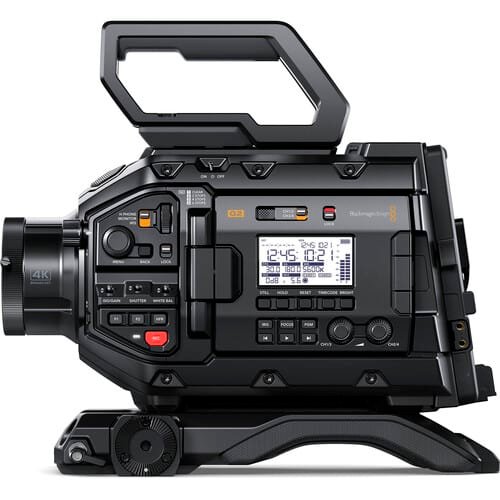

Blackmagic Design URSA Broadcast G2

Brands:Blackmagic
  • 2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
  • 1 x 3.5mm headphone jack, supports iPhone style headset for talkback.
  • 1 x 12-pin Hirose Broadcast Lens Connector.
  • 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
  • 1 x USB Type‑C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1 x USB Type‑C for software updates.
Finance Schemes
Call 08112710155 To Place Your Order
Add to Wishlist
Add to Wishlist

Description

Camera Features

Effective Sensor Size

2/3 inch sensor size when using 4K B4 mount

(Actual sensor size 23.10mm x 12.99mm)

Lens Mount

B4 2/3 inch installed

Active EF mount also included

Lens Control

Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.

Lens Correction

In-camera correction of color fringing when using compatible broadcast lenses.

Dynamic Range

13 Stops

Dual Native ISO

0dB and 18dB gain.

Sensitivity at 0dB Gain

f11 with 2160p59.94.

f12 with 2160p50.

at 2,000 lux with 89.9% reflectance.

additional 1.1 stop light loss using 4K B4 mount.

Signal to Noise Ratio

64.62dB for 2160p

Ultra HD scaled from 5.3K

Built in ND Filters

Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.

Focus

Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.

Screen Dimensions

4 inch

Screen Type

LCD capacitive touchscreen.

Controls

Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.

ProRes Shooting Resolutionsand Frame Rates

3840 x 2160 (Ultra HD) up to 60 fps

from Ultra HD window or scaled from 5.3Kwindowed sensor

3840 x 2160 (Ultra HD) up to 50 fps

scaled from full sensor

1920 x 1080 (HD) up to 120 fps

scaled from 2.7K windowed sensor

1920 x 1080 (HD) up to 60 fps

scaled from Ultra HD or 5.3Kwindowed sensor

1920 x 1080 (HD) up to 50 fps

scaled from full sensor

H.265 Shooting Resolutionsand Frame Rates

3840 x 2160 (Ultra HD) up to 60 fps

from Ultra HD window or scaled from 5.3Kwindowed sensor

3840 x 2160 (Ultra HD) up to 50 fps

scaled from full sensor

H.264 Shooting Resolutionsand Frame Rates

1920 x 1080 (HD) up to 60 fps

scaled from Ultra HD or 5.3K windowed sensor

1920 x 1080 (HD) up to 50 fps

scaled from full sensor

Blackmagic RAW Shooting Resolutionsand Frame Rates

6144 x 3456 (6K) up to 50 fps

6144 x 2560 (6K 2.4:1) up to 60 fps

5376 x 3024 (5.3K 16:9) up to 60 fps

3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps

3840 x 2160 (Ultra HD) up to 60 fps

1920 x 1080 (HD) up to 150 fps

Project Frame Rates

23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps.

Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.

Metadata Support

Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Audio Sampling

48 kHz and 24 bit

Media

Media

2 x CFast 2.0 card slots, 2 x SD UHS‑II card slots, 1 x USB‑C 3.1 Gen 2 expansion port with power delivery for recording to external media.

Media Format

Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems).

Power Requirements

Power Supply

1 x External 12V DC 100W power supply with 100 – 240V AC 50/60Hz IEC C14 input.

External Power Input

1 x 4-pin XLR port for external mains power supply or battery use.

1 x 12-pin Molex connector under rear battery plate.

Power Output

+12V 4-pin XLR regulated output on side of camera

+12V D-Tap regulated output on VLock battery plate

Power

Rear camera mount compatible with industry standard V-mount or gold mount battery plates.

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 45°C (-4° to 113°F)

Relative Humidity

0% to 90% non-condensing

Additional information

Weight 4.5 kg
