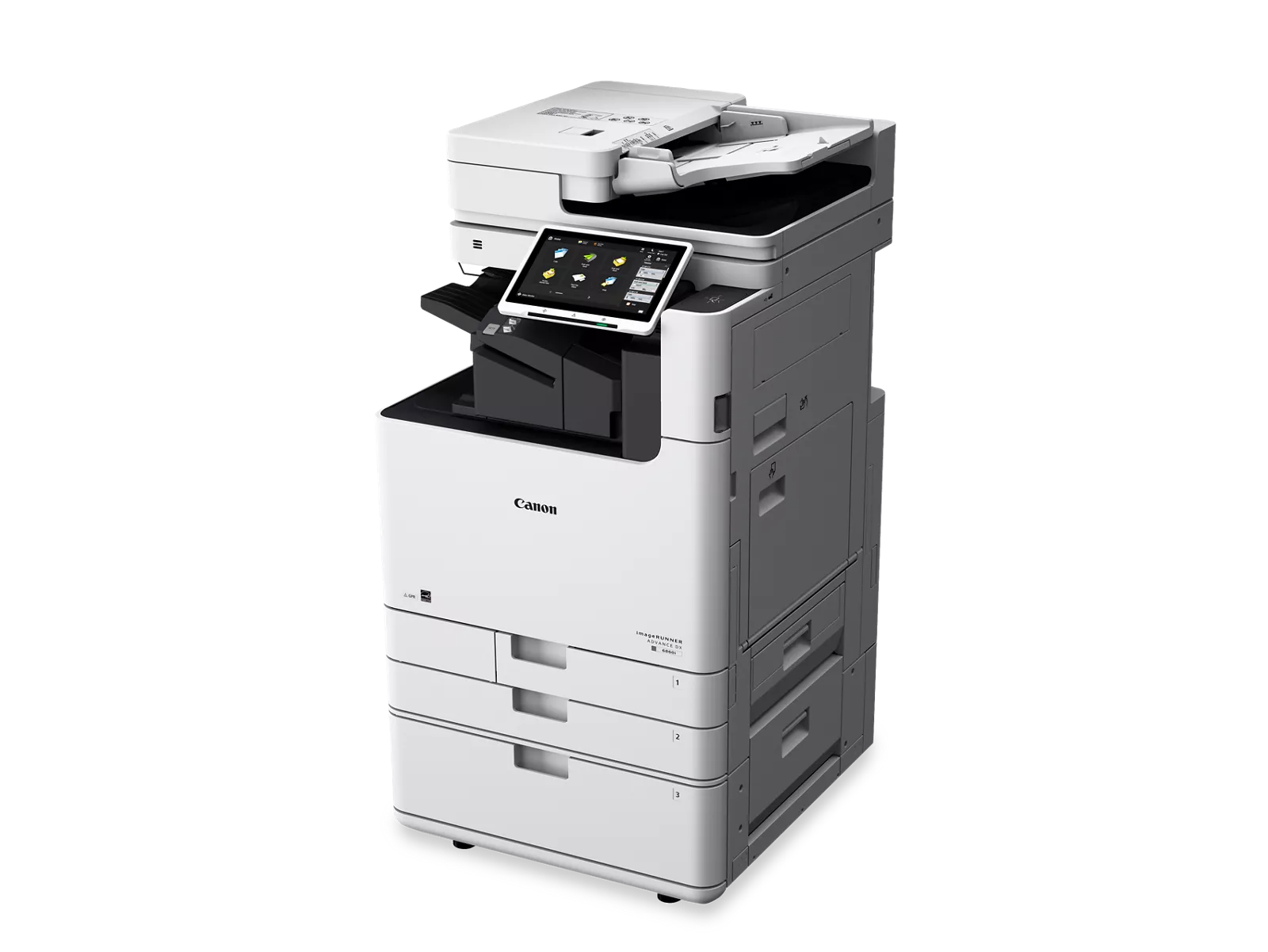

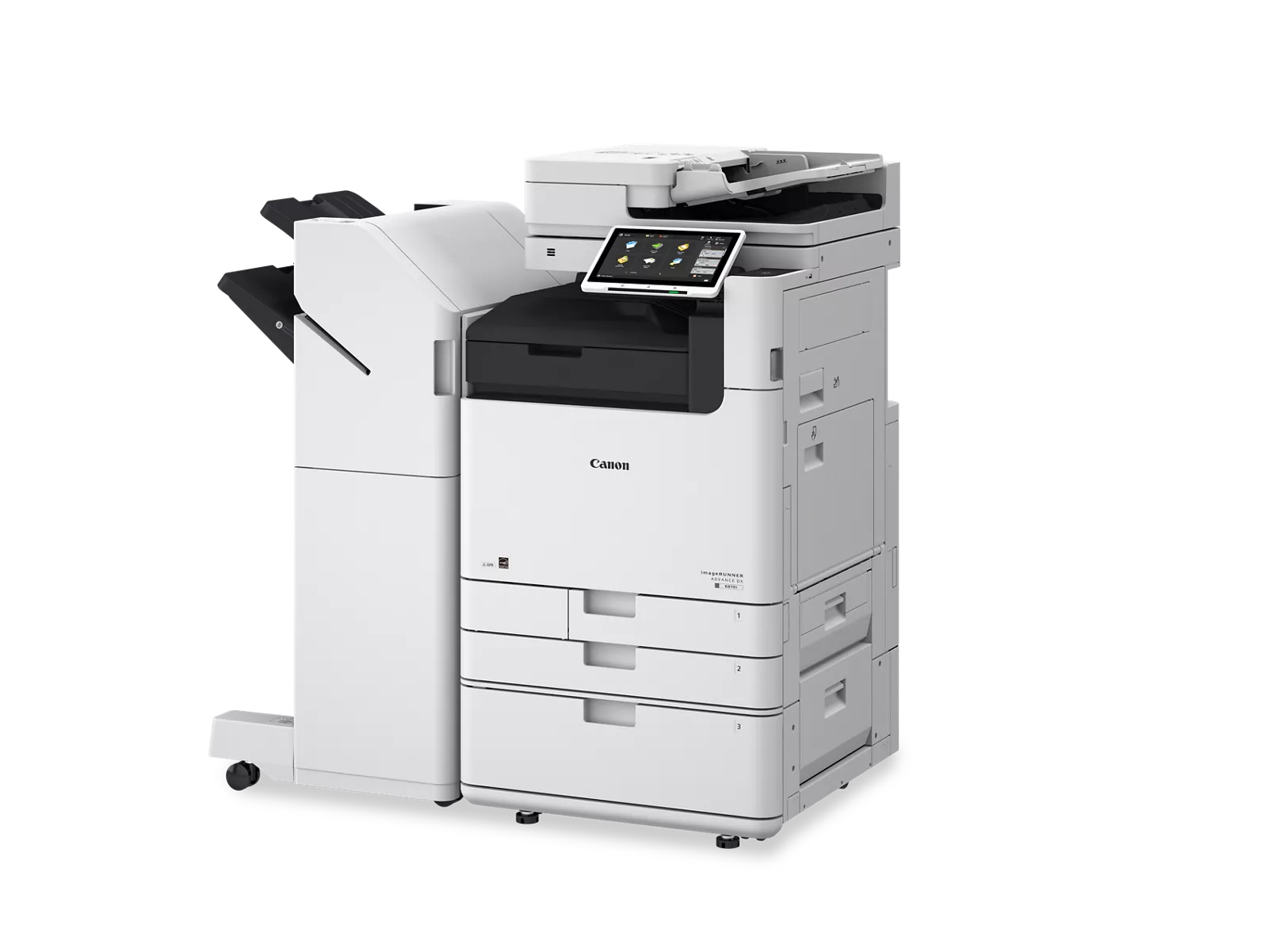

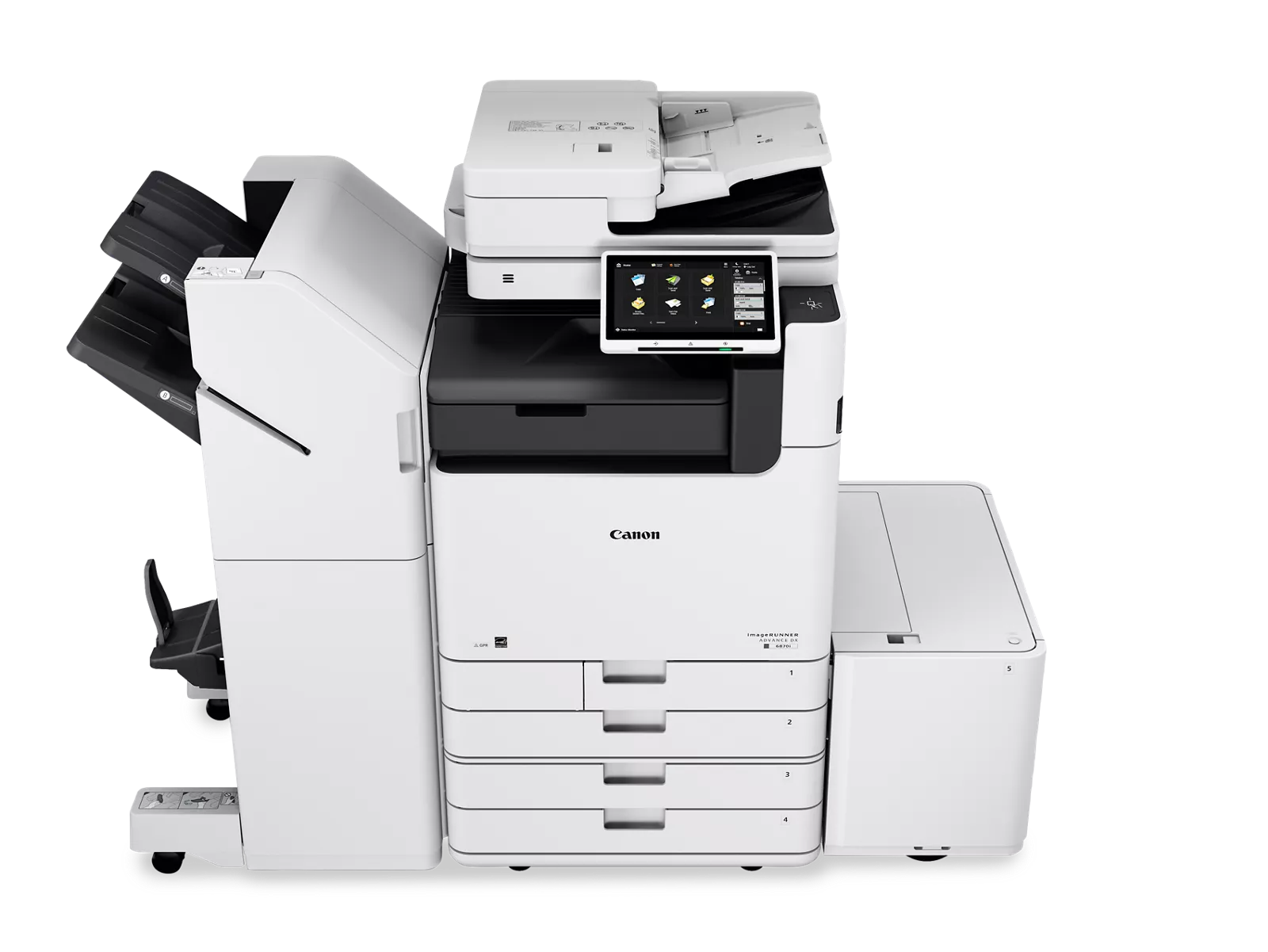

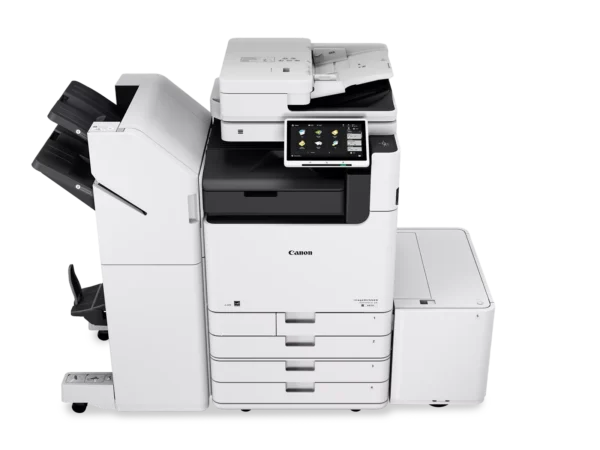

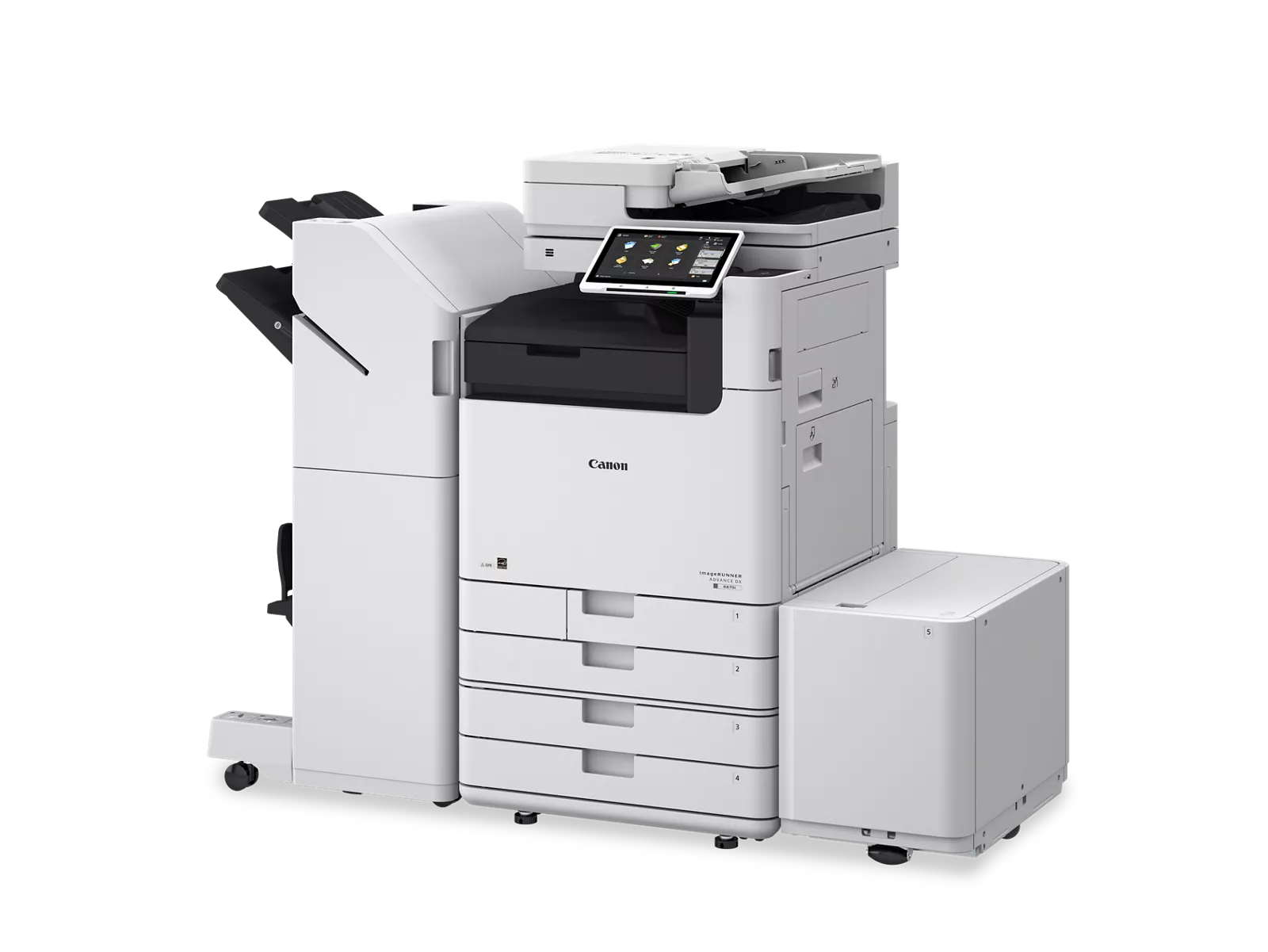

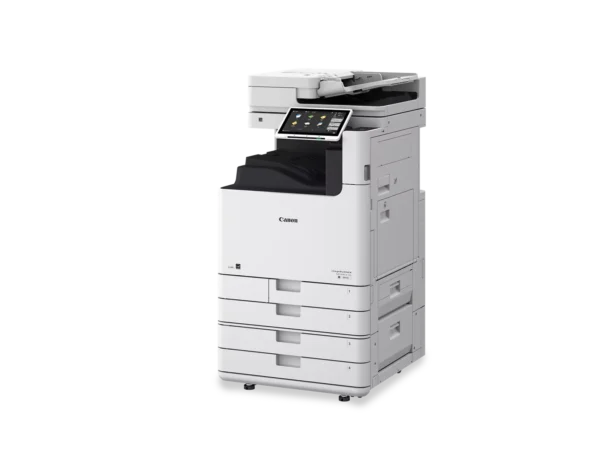

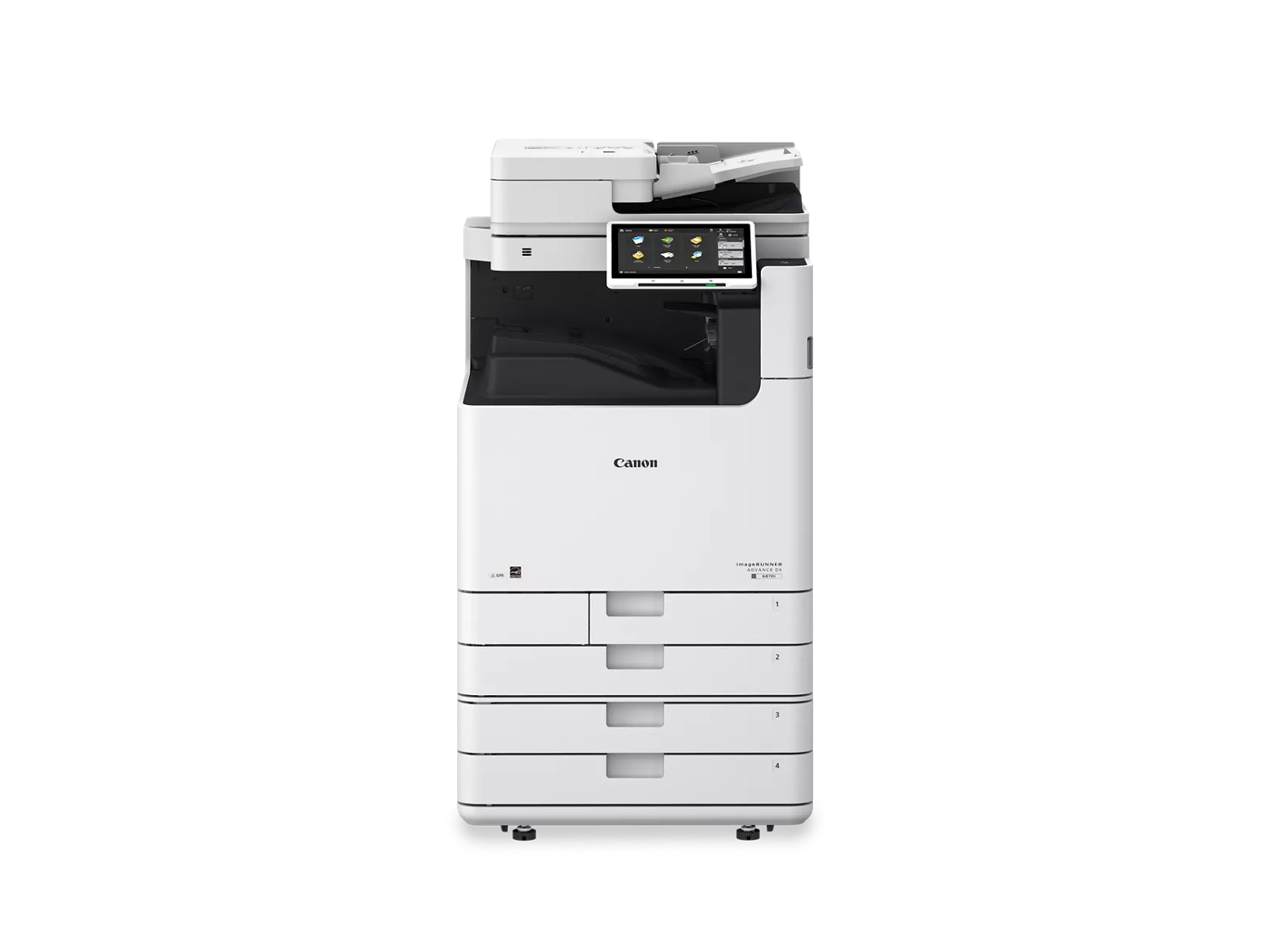

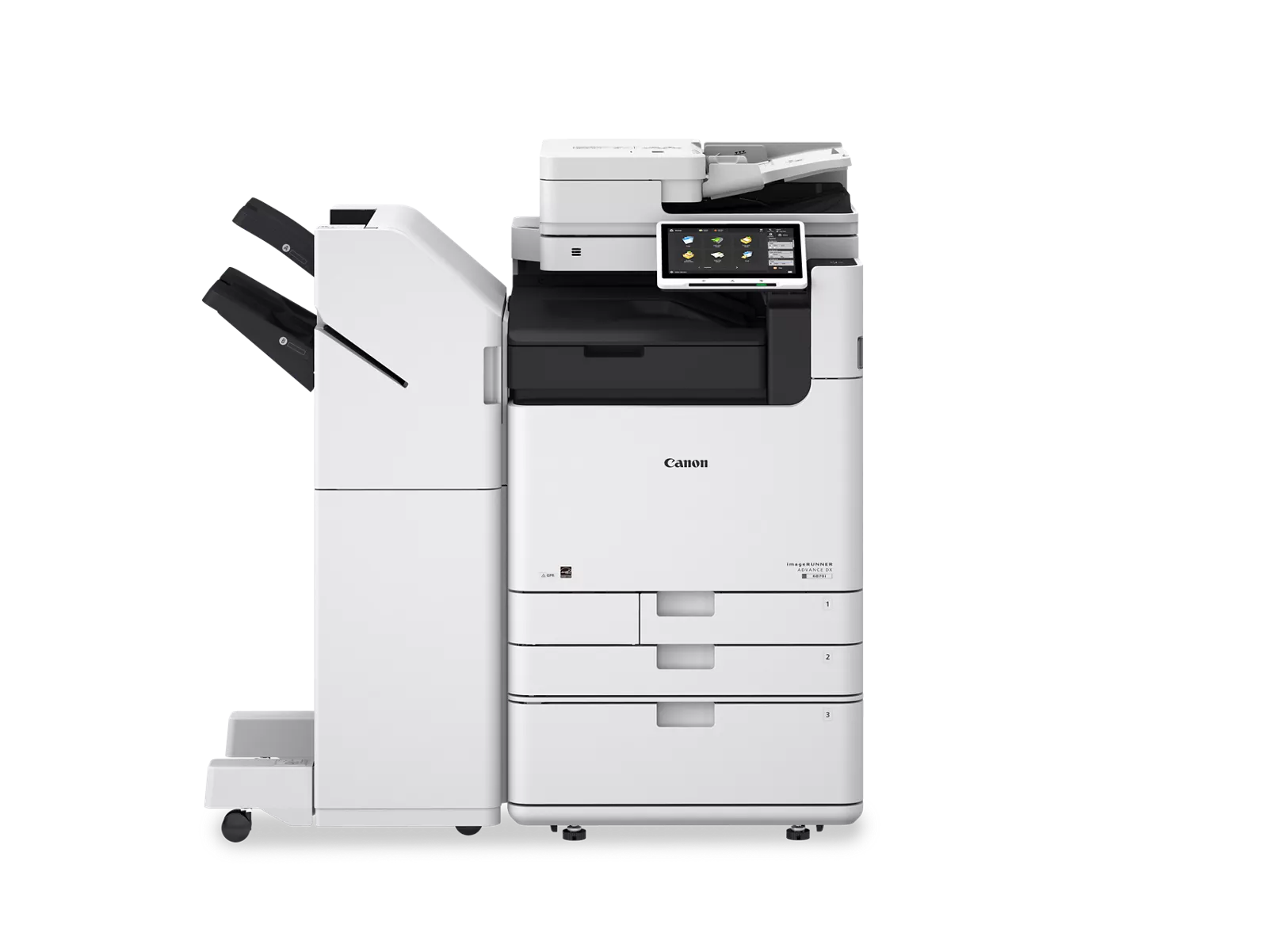

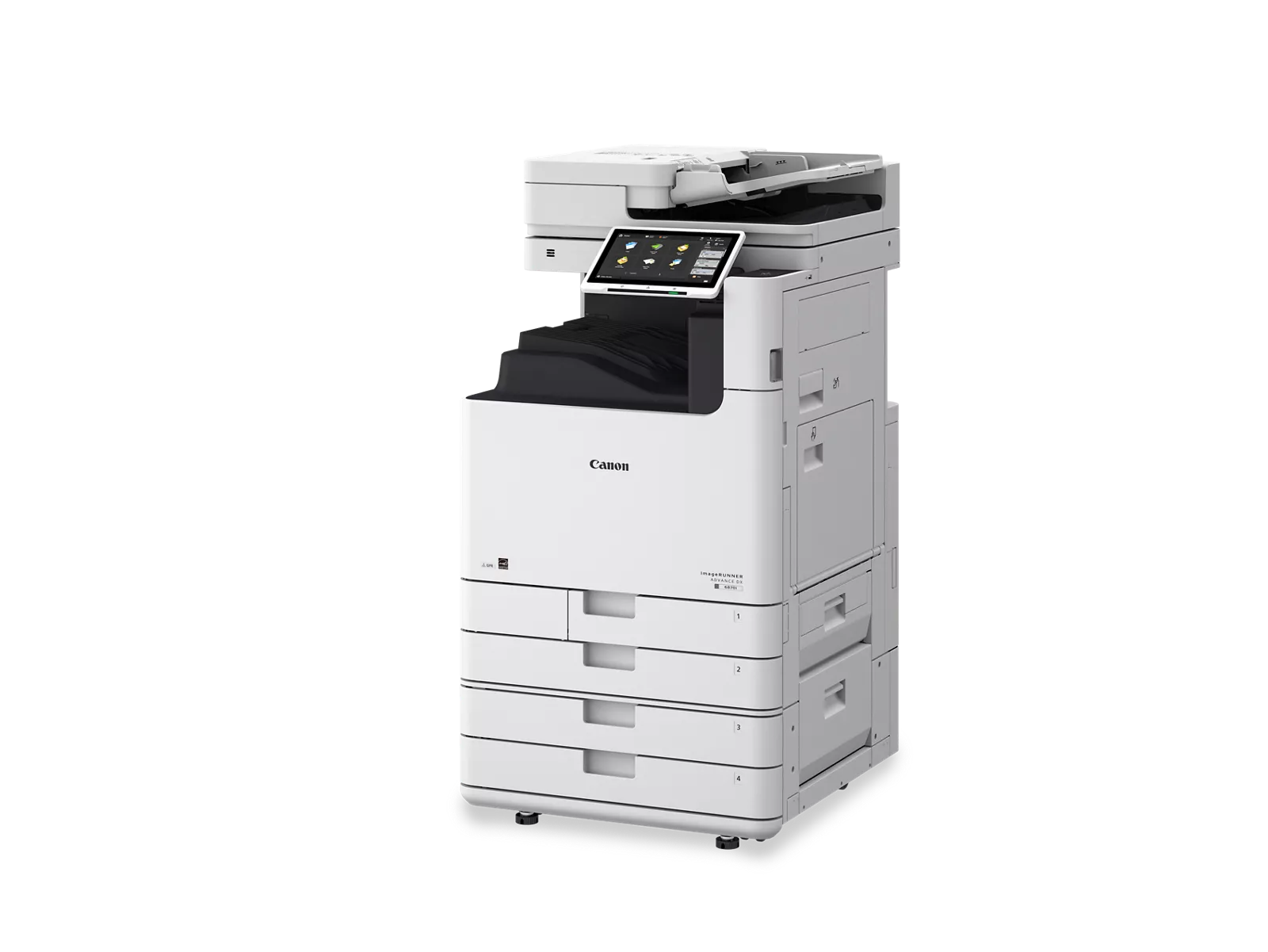

Canon imageRUNNER ADVANCE DX 6870i

Description

Main Unit

• Machine Type

  A3 Monochrome Laser Multifunctional

• Core Functions

  Print, Copy, Scan, Send, Store and Optional Fax

• Processor Speed

  1.8GHz Dual Core Processor

• Control Panel

  10.1″ TFT LCD WSVGA Color Touch panel

• Memory

  Standard: 6.0GB RAM

• Storage

  Standard: (SSD) 256GB
  Optional: (SSD) 1TB

• Interface Connection

  NETWORK
  Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
  Optional: Bluetooth Low Energy
  OTHERS
  Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
  Optional: Serial Interface, Copy Control Interface

• Paper Supply Capacity (A4, 80 gsm)

  Standard: 1,200 sheets
  100-sheet Multi-purpose tray x 1
  550-sheet Paper Cassettes x 2,
  Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1)

• Paper Output Capacity (A4, 80 gsm)

  Maximum: 3,450 Sheets
  (with Staple Finisher-AB2 or Paper Folding/Booklet Finisher-A1 and 3rd Copy Tray Kit-A1)

• Finishing Capabilities

  Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, V-fold, C-fold, Z-fold

  * Finishing capabilities vary depending on the options connected.

• Supported Media Types

  Multi-purpose tray:
  Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope

  Paper Cassette (Upper/Lower):
  Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*

  * Envelope Feeder Attachment (standard) is required.

• Supported Media Sizes

  Multi-purpose tray:
  Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
  Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
  Envelopes: COM 10 No.10, Monarch, DL, ISO-C5
  Envelope custom size: 98.0 x 90.0 mm to 320.0 x 457.2 mm

  Upper Cassette:
  Standard size: A4, A5, A5R, A6R, B5
  Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm
  Envelopes: COM10 No.10, Monarch, DL, ISO-C5

  Lower Cassette:
  Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
  Envelopes: COM10 No.10, Monarch, DL, ISO-C5

• Supported Media Weights

  Multi-purpose tray: 52 to 300 gsm
  Paper Cassettes (Upper/Lower): 52 to 256 gsm
  Duplex: 52 to 256 gsm

• Warm-up Time

  Quick Startup Mode: 4 Seconds or less*

  * Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.

  From Sleep Mode:
  7 Seconds or Less (iR-ADV DX 6870i)
  6 Seconds or Less (iR-ADV DX 6855i/6860i)
  From Power On: 6 Seconds or less*

  * Time from device power-on, until copy ready (not print reservation).

• Dimensions (W x D x H)

  620 x 722 x 937 mm

• Installation Space (W x D)

  Basic: 1,138 x 1,162 mm
  (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)

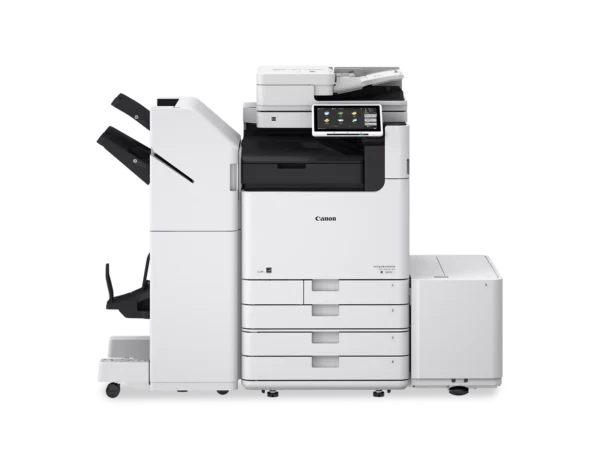

  Fully Configured: 1,866 x 1,162 mm
  (Staple Finisher-AB2+ Paper Folding/Booklet Finisher-A1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)

• Weight

  iR-ADV DX 6870i: Approx. 93 kg
  iR-ADV DX 6860i/6855i: Approx. 91 kg
  (including regular toner)

Print Specifications

• Print Speed

  iR-ADV DX 6870i
  up to 70 ppm (A4, A5*, A5R, A6R*), up to 36 ppm (A3), up to 42 ppm (A4R)

  iR-ADV DX 6860i
  up to 60 ppm (A4, A5*, A5R, A6R*), up to 32 ppm (A3), up to 36 ppm (A4R)

  iR-ADV DX 6855i
  up to 55 ppm (A4, A5*, A5R, A6R*), up to 29 ppm (A3), up to 36 ppm (A4R)

  * 1-sided only

• Print Resolution (dpi)

  1,200 x 1,200

• Page Description Languages

  Standard: UFR II, PCL6
  Optional: Adobe® PostScript®3^TM

• Direct Print

  Supported file types: PDF, EPS, TIFF/JPEG, and XPS

• Mobile / Cloud Printing

  AirPrint, Mopria, Universal Print by Microsoft, Canon PRINT App, and uniFLOW Online (optional)

• OS Standard Printing

  Android/Windows® 10/Windows® 11/Chrome OS/macOS (11.2.2 or later)/iOS (15.2 or later)/iPadOS

• Fonts

  PS fonts: 136 Roman
  PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1
  (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*2

  *1 Optional PCL International Font Set-A1 is required.
  *2 Optional Barcode Printing Kit-D1 is required.

• Print Features

  Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

• Operating Systems

  UFRII: Windows® 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server2022, Mac OS X (10.11 or later)
  PCL: Windows® 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server2022
  PS: Windows® 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server2022, Mac OS X (10.11 or later)
  PPD: Windows® 8.1/10/11, Mac OS X (10.11 or later)
  As of Jan. 2022

Copy Specifications

• Copy Speed

  iR-ADV DX 6870i
  up to 70 ppm (A4, A5*, A5R, A6R*), up to 36 ppm (A3), up to 42 ppm (A4R)

  iR-ADV DX 6860i
  up to 60 ppm (A4, A5*, A5R, A6R*), up to 32 ppm (A3), up to 36 ppm (A4R)

  iR-ADV DX 6855i
  up to 55 ppm (A4, A5*, A5R, A6R*), up to 29 ppm (A3), up to 36 ppm (A4R)

  * 1-sided only

• First-Copy-Out Time

  iR-ADV DX 6870i: Approx. 2.7 seconds or less
  iR-ADV DX 6860i/6855i: Approx. 2.9 seconds or less

• Copy Resolution (dpi)

  600 x 600

• Multiple Copies

  Up to 9,999 copies

• Copy Density

  Automatic or Manual (9 Levels)

• Magnification

  Variable zoom: 25% to 400% (1% Increments)
  Preset reduction/enlargement: 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%

• Basic Copy Features

  Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample

Scan Specifications

• Type

  Single-pass Duplexing Automatic Document Feeder* [2-sided to 2-sided (Automatic)]

  * Multi-Sheet Feed Detection.

• Pull Scan Specifications

  Color Network ScanGear2. For both TWAIN and WIA
  Supported OS: Windows® 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server2019/Server2022
  As of Nov. 2021

• Scan Resolution (dpi)

  Scan for Copy: 600 x 600
  Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
  Scan for Fax: 600 x 600

• Document Feeder Paper Capacity (80 gsm)

  Up to 200 Sheets

• Acceptable Originals/Weights

  Platen: Sheet, Book, and 3-Dimensional Objects

  Document Feeder media weight:
  1-sided scanning: 38 to 220 gsm
  2-sided scanning: 38 to 220 gsm

  * An acceptable weights of A6R or smaller is 50 to 220gsm.

• Supported Media Sizes

  Platen scanning size: up to 297.0 x 431.8 mm
  Document Feeder media size:
  A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
  Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm

• Scan Method

  Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to Cloud (uniFLOW Online, Cloud Connector – Optional)

• Scan Speed

  1-sided Scanning:
  135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)

  2-sided Scanning:
  270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

Send Specifications

• Destination

  Standard: E-mail/Internet FAX (SMTP*), SMB3.0, FTP, WebDAV, Mail Box
  Optional: Super G3 FAX, IP Fax

  * OAuth 2.0 authentication method available for Microsoft 365 and Google Workspace

• Address Book / Speed Dials

  LDAP (2,000)/Local (1,600)/Speed dial (200)

• Send Resolution (dpi)

  Push: up to 600 x 600
  Pull: up to 600 x 600

• Communication Protocol

  File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
  E-mail/I-Fax: SMTP, POP3

• File Format

  TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

• Universal Send Features

  Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages

Fax Specifications

• Maximum Number of Connection Lines

  1

• Modem Speed

  Super G3: 33.6 kbps
  G3: 14.4 kbps

• Compression Method

  MH, MR, MMR, JBIG

• Resolution (dpi)

  400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

• Sending/Receiving Size

  Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
  Receiving: A3, B4, A4, A4R, A5R , B5, B5R

  *1 Sent as A4
  *2 Sent as B4 short

• FAX Memory

  Up to 30,000 pages (2,000 jobs)

• Speed Dials

  Max. 200

• Group Dials/Destinations

  Max. 199 dials

• Sequential Broadcast

  Max. 256 addresses

• Memory Backup

  Yes

• Fax Features

  Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log

Store Specifications

• Mail Box

  100 User Inboxes,
  1 Memory RX Inbox,
  50 Confidential Fax Inboxes
  Maximum 30,000 Pages (2,000 jobs) Stored

• Advanced Space

  Communication Protocol: SMB or WebDAV
  Supported Client PC: Windows® 8.1/10
  Concurrent Connections (Max.): SMB:64, WebDAV:3

• Advanced Space Available Disk Space

  Standard:16 GB
  (With option: max. 480GB)

• Advanced Space Features

  Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Security Specifications

• Authentication & Access Control

  User Authentication (Picture Login, Picture and PIN Login, Card Login*, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online** (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) ), Cloud Connector** (PIN Login), Microsoft Entra ID (PIN Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control)

  **Subscription required

  * Card readers are optional, please refer to Hardware Accessories-Activation is required

• Network Security

  TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception

• Document Security

  Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)

  *1 Requires uniFLOW Online / uniFLOW

• Device Security

  Protecting SSD Data [SSD Data Encryption (FIPS140-3 Validated), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection enabled with Trellix Embedded Control), HCD-PP Common Criteria Certification

• Device Management & Auditing

  Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Environmental Specifications

• Operating Environment

  Temperature: 10 to 30 ºC
  Humidity: 20 to 80 % RH (Relative Humidity)

• Power Source

  220-240 V, 50/60 Hz, 6 A

• Power Consumption

  Maximum:
  iR-ADV DX 6870i: Approx. 2,000 W
  iR-ADV DX 6860i/6855i: Approx. 1,800 W
  Copying (with DADF continuous scan): Approx. 858 W*1
  Standby: Approx. 50.7 W*1
  Sleep mode: Approx. 0.8 W*2

  *1 Reference value: measured one unit
  *2 0.8 W is not available in all circumstances due to certain settings.

  Typical Electricity Consumption (TEC):
  iR-ADV DX 6870i: 0.85 kWh
  iR-ADV DX 6860i: 0.71 kWh
  iR-ADV DX 6855i: 0.67 kWh

  * As per USA Energy Star 3.0

  For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/

• Noise Levels

  Sound Power Level (LWA,m)
  Active (1-sided)
  iR-ADV DX 6870i: 66 dB*, Kv 3 dB*
  iR-ADV DX 6860i/6855i: 64 dB*, Kv 3 dB*

  * Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)

  Sound Pressure (LpAm)
  Bystander’s position:
  Active (1-sided): 52 dB* (iR-ADV DX 6870i), 51 dB* (iR-ADV DX 6860i) 50 dB*
  (iR-ADV DX 6855i)
  Stand-by: 25 dB*

  * Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)

• Standards

  Blue Angel

Software & Printer Management

• Tracking & Reporting

  Universal Login Manager (ULM)
  uniFLOW Online

• Remote Management Tools

  iWEMC
  eMaintenance
  Content Delivery System

• Scanning Software

  Color Network ScanGear

• Optimisation Tools

  Canon Driver Configuration Tool

• Platform

  MEAP (Multifunctional Embedded Application Platform)

• Document Publishing

  Kofax PowerPDF Advanced (Optional)

Consumables

• Toner Cartridge/s

  C-EXV 61 Toner BK

• Toner Estimated Yield

  C-EXV 61 Toner BK: 71,500 pages
  (estimated @6% coverage)

Paper Supply Options

• Cassette Feeding Unit

  Model:  Cassette Feeding Unit-AQ1
  Paper Capacity: 2 x 550 sheets (80 gsm)
  Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead
  Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
  Paper Weight: 52 to 256 gsm
  Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit)
  Weight: Approx. 22 kg

• High Capacity Cassette Feeding Unit

  Model: High Capacity Feeding Unit-C1
  Paper Capacity: 2,450 sheets (80 gsm)
  Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead
  Paper Size: A4
  Paper Weight: 52 to 256 gsm
  Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit)
  Weight: Approx. 29 kg

• Paper Feeder

  Model: Paper Deck Unit-F1
  Paper Capacity: 2,700 sheets (80 gsm)
  Paper Type: Thin, Plain, Color, Recycled, Heavy, Pre-punched
  Paper Size: A4, B5
  Paper Weight: 52 to 256 gsm
  Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit)
  Weight: Approx. 31 kg

Output Options

• Copy Tray

  Model: 1st Copy Tray Kit-A1
  Capacity (with 80gsm paper):
  A4, A5, A5R, A6R, B5: 250 sheets
  SRA3, A3, A4R, B4, B5R: 100 sheets
  Paper Weight: 52 to 300 gsm
  Dimensions (W x D x H): 454 x 493 x 114 mm
  Weight: 1.2 kg

  Model: Inner 2way Tray-M1
  Tray Capacity (with 80 gsm paper)
  Upper tray: A4, A5, A5R, A6R, B5: 100 sheets
  SRA3, A3, A4R, B4, B5R: 50 sheets
  Lower tray (1st Copy Tray Kit-A1):
  A4, A5, A5R, A6R, B5: 250 sheets
  SRA3, A3, A4R, B4, B5R: 100 sheets
  Paper Weight: 52 to 300 gsm
  Dimensions (W x D x H): 428 x 405 x 88 mm
  Weight: Approx. 0.7 kg

  Model: 3rd Copy Tray Kit-A1
  Capacity (with 80gsm paper):
  A4, A5R, B5: 100 sheets
  A3, A4R, B4, B5R: 75 sheets
  Dimensions (W x D x H): 442 × 373 × 176 mm
  (attached to the main unit, when the extension tray is extended)
  Weight: 0.5 kg

• Inner Finisher

  Model: Inner Finisher-L1 (not supported for iR-ADV DX 6870i)
  Tray Capacity (with 80gsm paper):
  Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5,
  B5R: approx. 45 sheets
  Lower Tray: A4, A5, A5R, B5: approx. 500 sheets,
  SRA3, A3, A4R, B4, B5R: 250 sheets,
  A6R: 30 sheets
  Envelope: 10 sheets
  Paper Weight: 52 to 300 gsm
  Staple Position: Corner, Double
  Staple Capacity: (52 to 90 gsm paper)
  A4, B5: 50 sheets
  A4R: 40 sheets
  A3, B4: 30 sheets
  Eco Staple:
  A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
  8 sheets (65 to 81.4 gsm)
  6 sheets (82 to 105 gsm)
  Staple On Demand: 40 sheets (80 gsm)
  Dimensions (W x D x H): 743 x 525 x 225 mm
  (attached to the main unit, when the extension tray is extended)
  Weight: Approx. 9.1 kg

• Staple Finisher

  Model: Staple Finisher-AB2 (requires Buffer Pass Unit-P2)
  Tray Capacity (with 80gsm paper):
  Upper Tray:
  A4, A5, A5R, A6R, B5: approx. 250 sheets,
  SRA3, A3, A4R, B4, B5R: approx. 125 sheets
  Lower Tray:
  A4, A5, A5R, B5: 3,000 sheets
  SRA3, A3, A4R, B4, B5R: 1,500 sheets,
  A6R: 250 sheets
  Envelopes: Monarch: 30 sheets,
  COM10 No.10, DL, ISO-C5: 100 sheets
  Paper Weight:
  Upper Tray 52 to 256 gsm,
  Lower Tray 52 to 300 gsm
  Staple Position: Corner, Double
  Staple Capacity: (52 to 90 gsm)
  A4, B5: 50 sheets
  A4R: 40 sheets
  A3, B4: 30 sheets
  Eco Staple:
  A3, A4: 10 sheets (52 to 64 gsm)
  8 sheets (65 to 81.4 gsm)
  6 sheets (82 to 105 gsm)
  Staple On Demand: 50 sheets (52 to 90 gsm)
  Dimensions (W x D x H): 637 x 623 x 1,142 mm
  (when the extension tray is extended)
  Weight: Approx. 31 kg

• Booklet Finisher

  Model: Paper Folding/Booklet Finisher-A1 (Requires Buffer Pass Unit-P2)
  (Includes the above Staple Finisher-AB2 basic staple specifications.)
  Saddle Stitch paper size: A3, A4R, B4
  Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm)
  (including 1 cover sheet 52 to 256 gsm)
  V-fold: up to 3 sheets (52 to 105 gsm)
  C-fold Capacity: up to 5 sheets (52 to 105 gsm)
  Dimensions (W x D x H): 637 x 623 x 1,142 mm (when the extension tray is extended)
  Weight: Approx. 57 kg

• Paper Folding

  Model: Paper Folding Unit-L1 (Requires Buffer Pass Unit-P2)
  Paper Size: A3, A4, B4
  Z-fold Capacity: 1 sheet (52 to 105 gsm)
  Dimensions (W x D x H): 201 x 579 x 896 mm
  Weight: Approx. 12 kg

• Inner 2/4 Hole Puncher

  Model: Inner 2/4 Hole Puncher-D1 (not supported for iR-ADV DX 6870i)
  (Requires the Inner Finisher-L1)
  Two or Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Two holes: A3, A4, A4R, A5, B4, B5, B5R
  Four holes: A3, A4

  Model: Inner 4 Hole Puncher-D1 (not supported for iR-ADV DX 6870i)
  (Requires the Inner Finisher-L1)
  Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Four holes: A3, A4, A4R, A5, B4, B5, B5R

  Model: 2/4 Hole Puncher Unit-A1
  (Requires either the Staple Finisher-AB2 or Paper Folding/Booklet Finisher-A1)
  Two or Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Two holes: A3, A4, A4R, A5, B4, B5, B5R
  Four holes: A3, A4

  Model: 4 Hole Puncher Unit-A1
  (Requires either the Staple Finisher-AB2 or Paper Folding/Booklet-A1)
  Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Four holes A3, A4, A4R, A5, B4, B5, B5R

Hardware Accessories

• Card Readers

  Various card readers available e.g. MiCard Plus.
  Please contact local Canon Office for more details

  Copy Card Reader Attachment-B7
  Copy Card Reader-F1
  IC Card Reader Box for Numeric Keypad-A1

• Others

  Printer Cover-M2
  Tab Feeding Attachment-F1
  Buffer Pass Unit-P2
  Utility Tray-B1
  Numeric Keypad-A2
  Instant Stapler-B1 (optional)

Security Options

• Data Security

  250GB SSD-A1 (usage with Memory Mirroring Kit-A1)
  1TB SSD-A1
  Memory Mirroring Kit-A1

System & Controller Options

• Print Accessories

  PCL International Font Set-A1
  PS Printer Kit-BC1

• Barcode Printing

  Barcode Printing Kit-D1

• System Accessories

  Copy Control Interface Kit-A1
  Serial Interface Kit-K3
  Connection Kit-A3 for Bluetooth LE

• Fax Accessories

  Super G3 FAX Board-AX1
  Remote Fax Kit-A1
  IP FAX Expansion Kit-B1

Other Options

• Consumables

  Staple-P1 (2 x 5,000pcs)
  Staple Cartridge-Y1 (2 x 2,000pcs)*

  * For Booklet Finisher only

• Accessibility Accessories

  ADF Access Handle-A1
  Voice Guidance Kit-G1
  Voice Operation Kit-D1

• Others

  Device Protection: Antimicrobial Film*
  Various Sheets designed to fit the devices most common touch points.

  *Application by a Service engineer is recommended
