Canon PowerShot V10 Camera

Specifications in detail

Image Sensor

• Type
  High-sensitivity CMOS sensor (back-illuminated)
• Effective Sensor Size
  1.0 inch
• Effective Pixels
  Approx. 13.1 megapixels (During Full HD 16:9 Movie recording)
  Approx. 15.2 megapixels (During Still photo shooting)
• Total Pixels
  Approx. 20.9 megapixels
• Colour Filter Type
  RGB primary colour filters

Image Processor

• Type
  DIGIC X

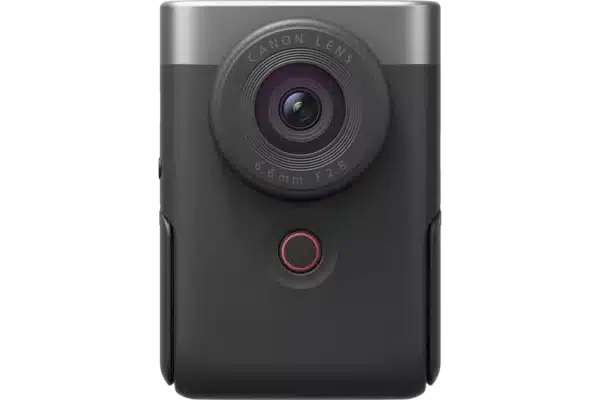

Lens

• Focal Length
  6.6 mm (Approx. 19 mm equivalent, 35mm format equivalent; During Full HD, 16:9 Movie recording)
  6.6 mm (Approx. 18 mm equivalent, 35mm format equivalent; During Still photo shooting )
• Zoom
  Digital Zoom (Off / 1.5× / 2.0× / 3.0×)¹
• Maximum Aperture
  f/2.8
• Angle of View (Horzntl, Vertl, Diagnl)
  97.5° (During Full HD, 16:9 Movie recording)
  100.2° (During Still photo shooting)
• Construction
  8 elements in 7 groups (including 3 Aspherical lenses and ND filter equivalent to 3 stops)
• Image Stabilisation
  Digital only (Off/On/Enhanced)

Focusing

• Type
  Contrast detection
• AF Operation (Stills)
  One-Shot AF
• AF Operation (Movie)
  Movie Servo AF
• AF System / Points
  Approx. 100% vertical and horizontal coverage
• AF Modes
  Face tracking AF, Specified frame AF²
• AF Point Selection
  Subjects to track are specified by tapping
• AF Lock
  Tap to start/stop AF³
• Closest Focusing Distance
  0.05 m

Exposure Control

• Metering Modes
  Evaluative metering with 384-zone (24×16) metering using the image sensor
• Exposure Compensation
  Manual exposure movie mode
  ±3 stops (in 1/3-stop increments)
• ISO Sensitivity

  Open
  Auto ISO range for Movies:
  – Full HD ISO 125–6400 (in 1/3-stop increments)
  – 4K ISO 125–3200 (in 1/3-stop increments)
  Manual ISO range for manual exposure Movies:
  – Full HD ISO 125–6400 (in 1/3-stop increments)
  – 4K ISO 125–3200 (in 1/3-stop increments)
  Auto ISO range for still photos: ISO 125–12800 (in 1/3-stop increments)

Shutter

• Speed
  Movies: 1/4000 to 1/8 sec. (in 1/3-stop increments)
  * Varies depending on the movie recording mode or frame rate.
  Still photos: 1/2000 to 1.0 sec. (in 1/3-stop increments)
  * Varies depending on the scene.

White Balance

• Type
  Auto white balance with the imaging sensor
• Settings
  AWB (Ambience priority/White priority), Daylight, Shade, Cloudy(Effective also in twilight and sunset), Tungsten light, White Fluorescent light, Colour Temperature White balance shift (Adjustable in [Colour tone] in compatible modes.):
  1. Blue/Amber +/-9
  2. Magenta/Green +/-9

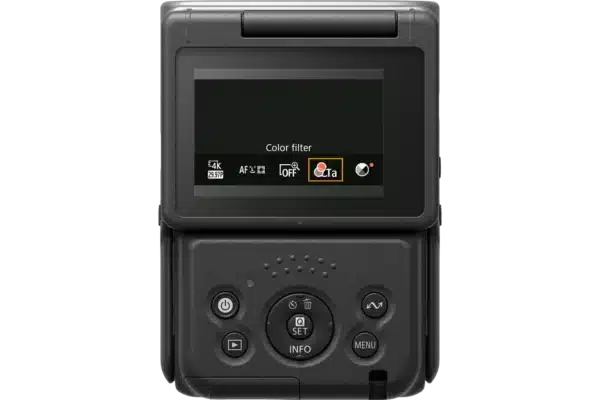

LCD Monitor

• Type
  Approx. 460,000 dots 2.0 inch (aspect ratio of 3:2) TFT colour, liquid-crystal monitor
• Coverage
  Approx. 100% vertically and horizontally
• Brightness Adjustment
  Manually adjustable in a range of 1–5
• Touch Screen Operations
  Tap-based subject selection / Touch Shutter (Disable / Enable) / Menu setting touch control / Quick Control touch control

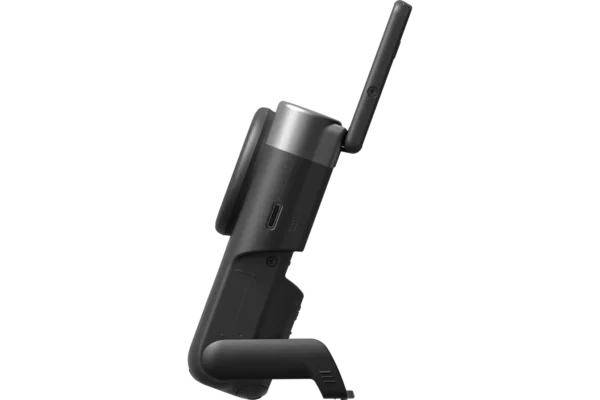

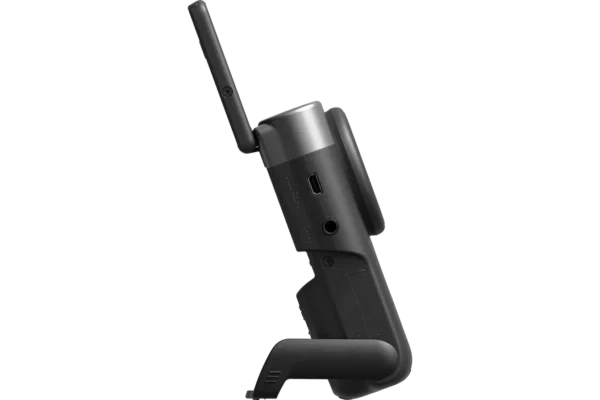

• Display Options
  Tilt Approx. 180° upward

Shooting

• Modes
  Still photo shooting: Auto photo (equivalent to Scene Intelligent Auto/A+) Movie recording:
  • Auto movie
  • Smooth skin movie^4 5
  • Movie IS mode
  • Manual exposure movie
• Picture Styles
  14 colour filters:
  For outdoors on a fine day, such as a cafe scene with shade and shadows:
  – StoryTeal&Orange: Shifts colours toward teal/orange overall and creates cinematic shadows.
  – StoryMagenta: Shifts colours toward magenta overall and creates cinematic shadows.
  – StoryBlue: Shifts colours toward blue overall and creates cinematic shadows.
  – PaleTeal&Orange: Teal/orange overall, tinged with bluish-white.
  For Urban scenes and landscape with sky:
  – RetroGreen: Applies a nostalgic effect, from a greenish tint.
  – Sepiatone: Applies an effect that is sepia-toned overall.
  – AccentRed: Applies an effect that mutes all colours except reds.
  For warm food and sweets:
  – TastyWarm: Applies an effect with an amber tint and increased saturation, for appetizing food photography of dishes that are golden brown or served warm.
  – TastyCool: Applies an effect with a whitish tint and increased saturation, for appetizing food photography of sweets or other vibrant dishes.
  For indoors with indirect lighting and night walking scenes:
  – BrightAmber: Shifts scenes toward amber overall while brightening dark, indirectly lit or candlelit scenes.
  – BrightWhite: Shifts scenes toward white overall while brightening dark, indirectly lit or candlelit scenes.
  Bright night cityscape and indoor spaces with sunbeams:
  – ClearLightBlue: Shifts scenes toward blue overall, while lowering contrast and brightening shadows to create a sense of clarity.
  – ClearPurple: Shifts scenes toward purple overall, while lowering contrast and brightening shadows to create a sense of clarity.
  – ClearAmber: Shifts scenes toward amber overall, while lowering contrast and brightening shadows to create a sense of clarity.
• Drive Modes
  Single shooting / Self-timer: 10 sec. / Self-timer: 2 sec.

File Types

• Still Image Type
  JPEG: 8-bit (Compliant with Design rule for Camera File system 2.0 and Exif 2.31)
• Movie Type
  MP4: 8-bit (H.264 / MPEG-4 AVC IPB Standard / IPB Light including AAC compressed audio)

Recording Pixels / Compression

• Image Size
  3:2 – (L) 5472 x 3648, (M) 3648 x 2432, (S1) 2736 x 1824, (S2) 2400 x 1600
  4:3 – (L) 4864 x 3648, (M) 3248 x 2432, (S1) 2432 x 1824, (S2) 2112 x 1600
  16:9 – (L) 5472 x 3072, (M) 3648 x 2048, (S1) 2736 x 1536, (S2) 2400 x 1344
  1:1 – (L) 3648 x 3648, (M) 2432 x 2432, (S1) 1824 x 1824, (S2) 1600 x 1600⁶
• Movie Size
  4K UHD (16:9) 3840 x 2160 (29.97, 25, 23.98fps) inter frame (IPB) / (IPB Light)
  Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25fps) inter frame (IPB) / (IPB Light) | (25, 23.98fps) inter frame (IPB)
• Movie Length
  Max movie continuous recording time available 1 hour⁷.
  Smooth Skin Movie mode (4K): max 5 min.
  No 4GB file limit with exFAT formatted SD card.
• Bitrate / Mbps
  4K (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps⁸
  4K (29.97p/25.00p/23.98p): IPB (Light) Approx. 60 Mbps⁹
  Full HD (59.94p/50.00p): IPB Approx. 60 Mbps¹⁰
  Full HD (59.94p/50.00p): IPB (Light) Approx. 35 Mbps
  Full HD (29.97p/25.00p): IPB Approx. 30 Mbps
  Full HD (29.97p/25.00p): IPB (Light) Approx. 12 Mbps
  Full HD (23.98p): IPB Approx. 30 Mbps

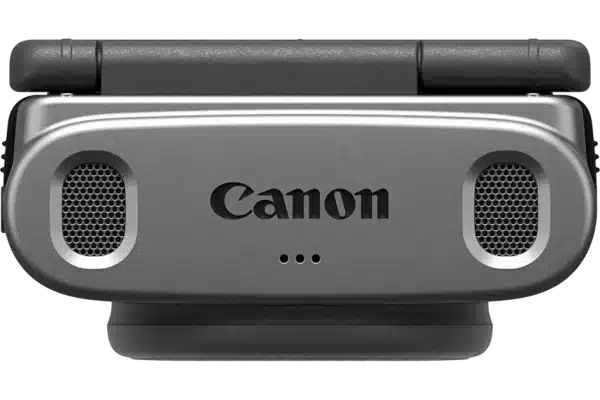

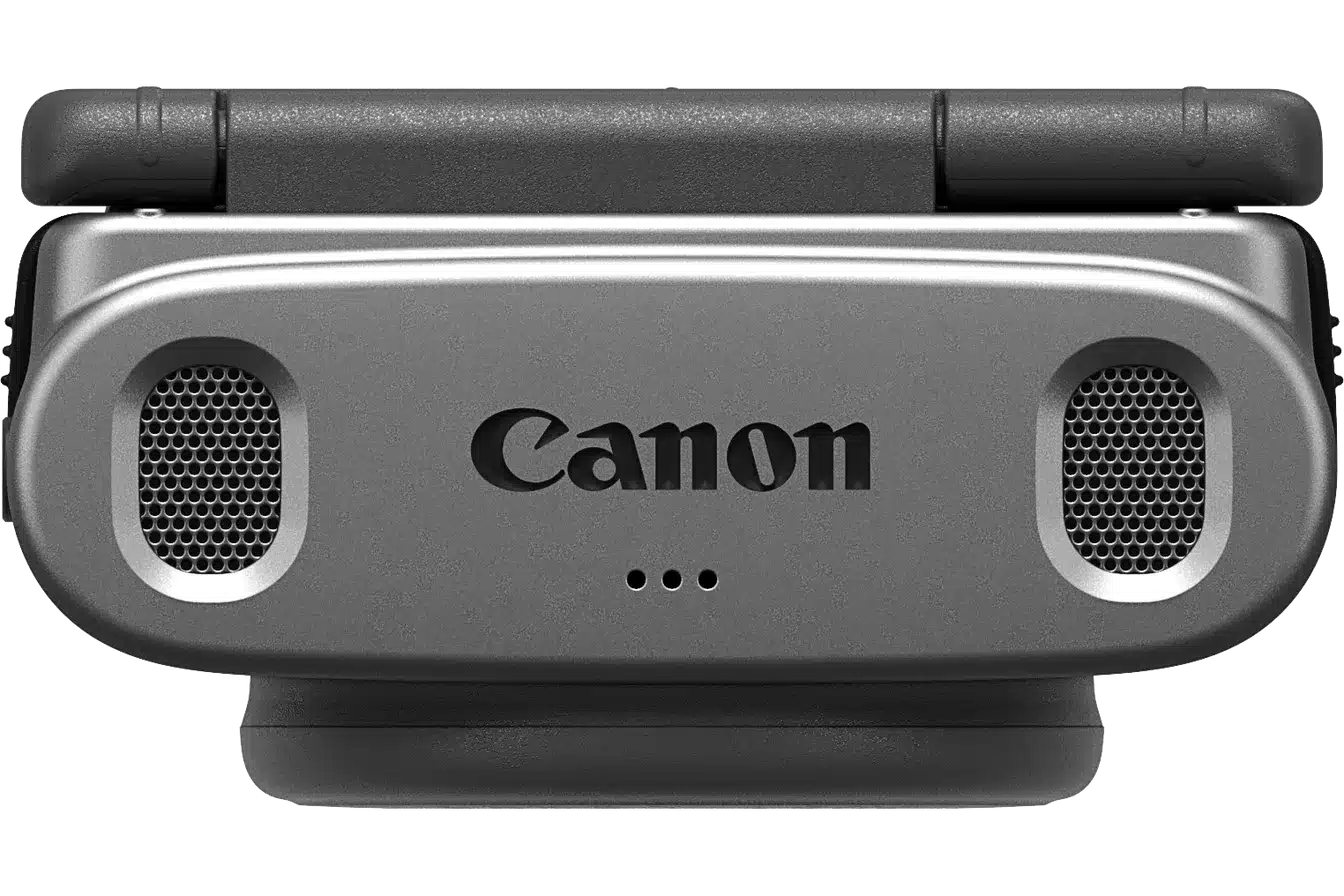

• Microphone
  Built-in stereo microphone (48 Khz, 16-bit x 2 channels)
  3.5mm external microphone input (Input impedance 2.2 kΩ, Standard input level –63 dBV, Maximum input level –23 dBV)
• Speaker
  Built-in monaural speaker (Movie playback volume: 0 (silent) to 10)
• HDMI Display
  Output to external monitor only (output of images/video and shooting information, images/video are recorded to the card)
• HDMI Output
  Camera screen and External Monitor output (no recording to the card, camera screen shows images/video with shooting information):
  Auto / 1080p
  Uncompressed YCbCr 4:2:0, 8-bit, supporting BT.709, when connected to compatible monitors. Simultaneous display on the screen and over HDMI is not supported when [Smooth skin movie] is selected.
• Focusing
  Continuous Contrast detection Autofocus
  AF operation: Movie Servo AF
  AF method: Face tracking AF / Specified frame AF
  AF lock: Tap to start/stop AF
  Manual focus (MF): Not supported
• ISO
  Auto ISO range for Movies:
  – Full HD ISO 125–6400 (in 1/3-stop increments)
  – 4K ISO 125–3200 (in 1/3-stop increments)
  Manual ISO range for manual exposure Movies:
  – Full HD ISO 125–6400 (in 1/3-stop increments)
  – 4K ISO 125–3200 (in 1/3-stop increments)
  Auto ISO range for still photos: ISO 125–12800 (in 1/3-stop increments)

Other Features

• GPS
  GPS via Mobile (linked to a compatible smartphone)
• Intelligent Orientation Sensor
  Yes
• Histogram
  Yes (Brightness in playback mode)
• Self Timer
  Approx. 2, 10 s
• Menu Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian, Persian, Hebrew, and Japanese

Connectivity

• Wired Connectivity
  HighSpeed USB (USB 2.0 equivalent) USB Type-C connector also used for computer communication / USB charge or power.
• Wireless Connectivity
  Wireless LAN (IEEE802.11b/g/n) (2.4 GHz)32, with Bluetooth 4.2 support Features supported – Smartphone, Upload to image.canon, Live Streaming¹¹
• Apps
  Canon Camera Connect app (iOS/Android)
• Other
  HDMI Micro out (Type D, HDMI-CEC not supported)
  External Microphone In (3.5mm Stereo mini jack)
  USB Type-C connector with UVC/UAC compatibility¹²

Direct Print

• PictBridge
  Not supported
• Canon Printers
  Not supported

Storage

• Type
  SD/SDHC/SDXC and UHS-I¹³

Software

• Other
  Canon Camera Connect app (iOS/Android)
  image.canon app (iOS/Android)

Power Source

• Batteries
  Built-in rechargeable lithium-ion battery
• Battery Life
  Number of possible shots: Approx. 290¹⁴
  4K Movie shooting time: Approx. 55 min.
  Full HD Movie shooting time: Approx. 1 hr. 20 min.
  4K Playback time: Approx. 2 hr. 40 min.
• Battery Indicator
  4 level indicator
• Power Saving
  Screen off: 30 sec. / 1 min. / 3 min. / 5 min. / Disable¹⁵
  Auto power off: 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / Disable
• Power Supply & Battery Chargers
  PD-E1 USB power adapter (The camera also support both Type-C PD compatible and non-PD compatible chargers.¹⁶)

Battery Life

• Viewing Time
  4K Playback time: Approx. 2 hr. 40 min.
• Number of Possible Shots
  Approx. 290
• Movie Shooting Time
  4K Movie shooting time: Approx. 55 min.
  Full HD Movie shooting time: Approx. 1 hr. 20 min.

Accessories

• Soft Case / Waterproof Case
  Soft case
• Power Supply & Battery Chargers (Optional)
  PD-E1 USB power adapter
• Remote Controller / Switch
  Wireless Remote Control BR-E1, Smartphone(Using Canon Camera Connect app)
• Other
  Stereo Microphone DM-E1 / DM-E100, Tripod grip HG-100TBR, Interface Cable IFC-100U, Interface Cable IFC-400U, Wrist Strap WS-800

Physical Specifications

• Operating Environment
  0 – 40 °C
• Humidity Range
  10%–90%
• Water/Dust-Resistance
  No

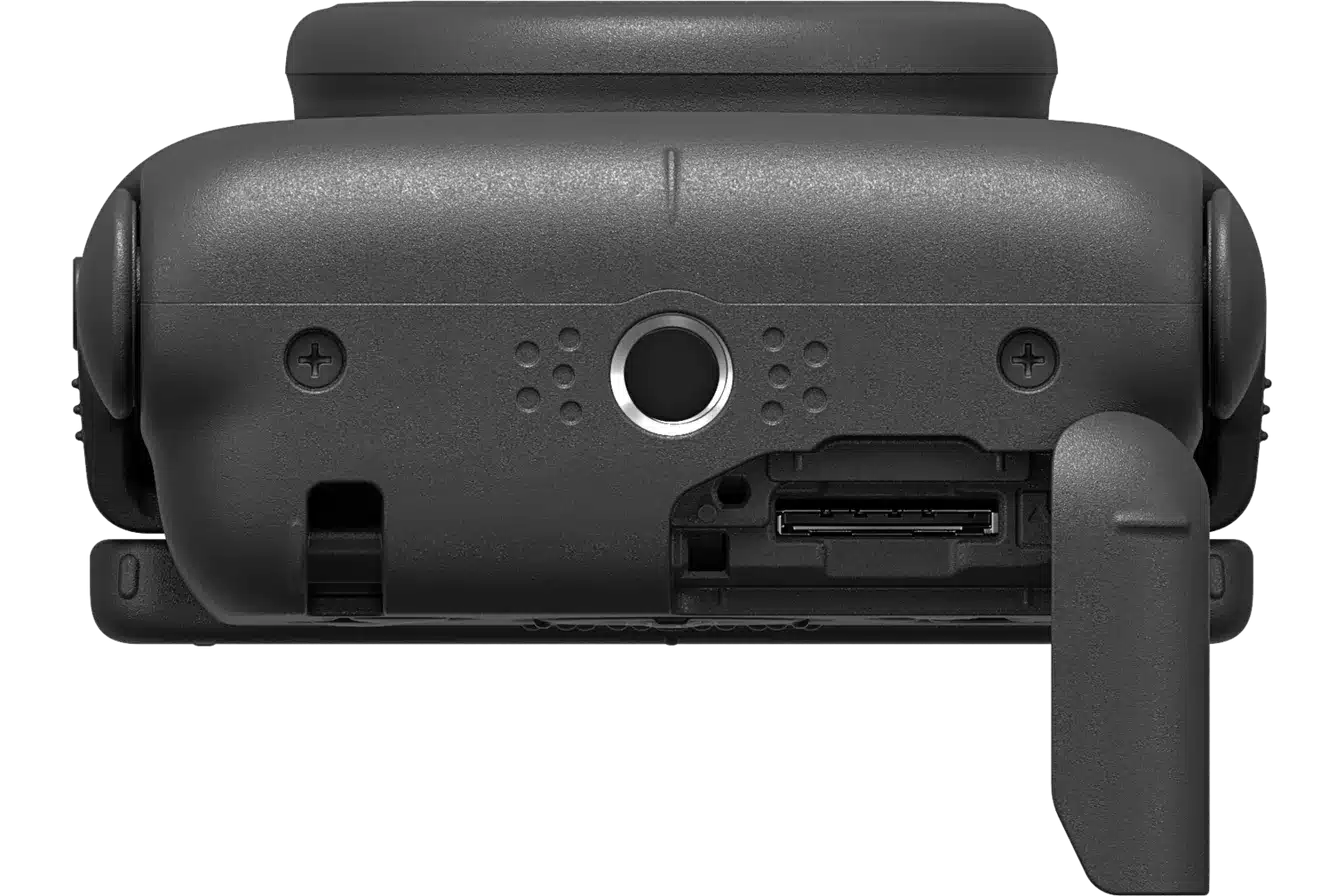

• Tripod Mount
  1/4 (ISO 1222)
• Dimensions (W x H x D)
  Approx. 63.4 × 90.0 × 34.3 mm
• Weight
  211 g
