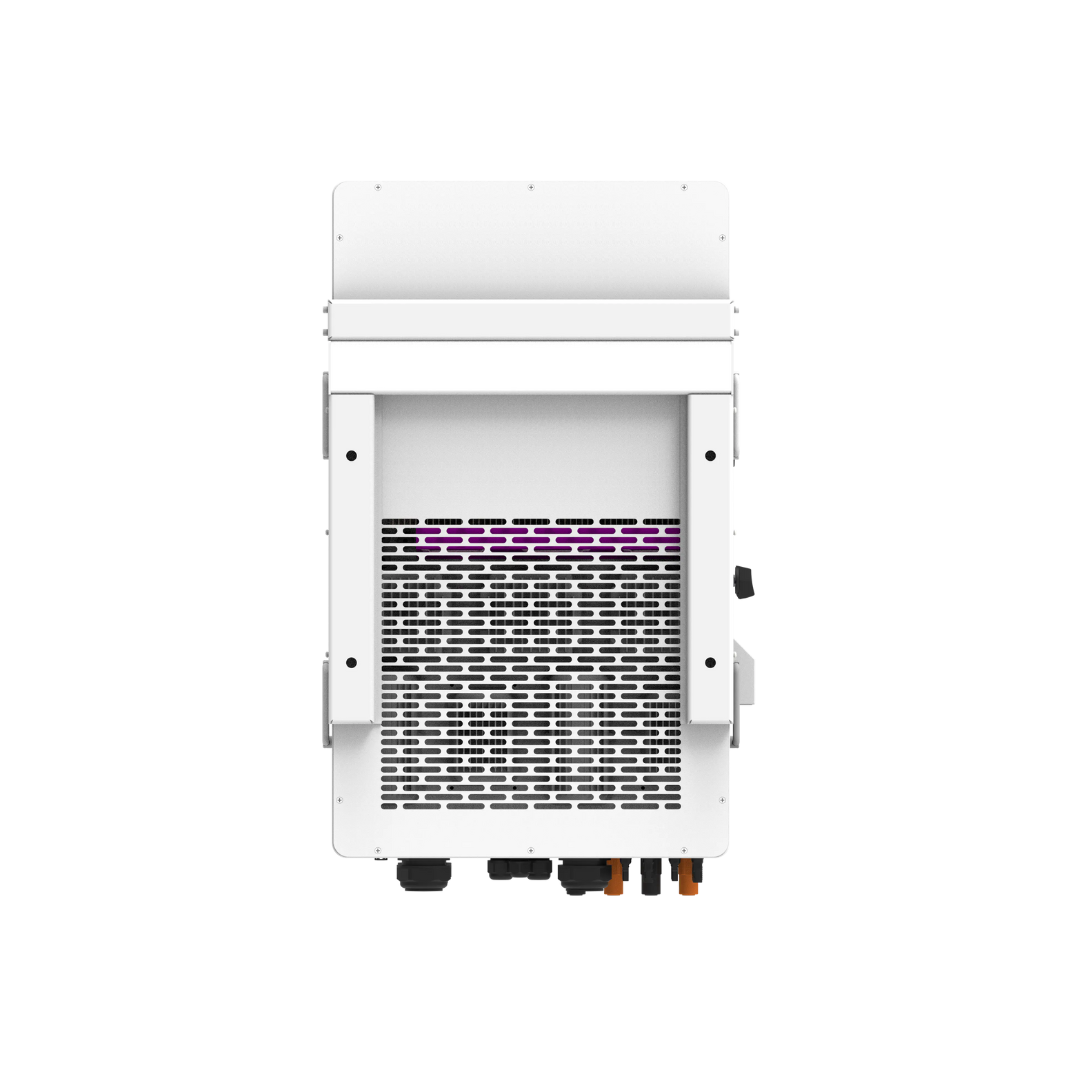

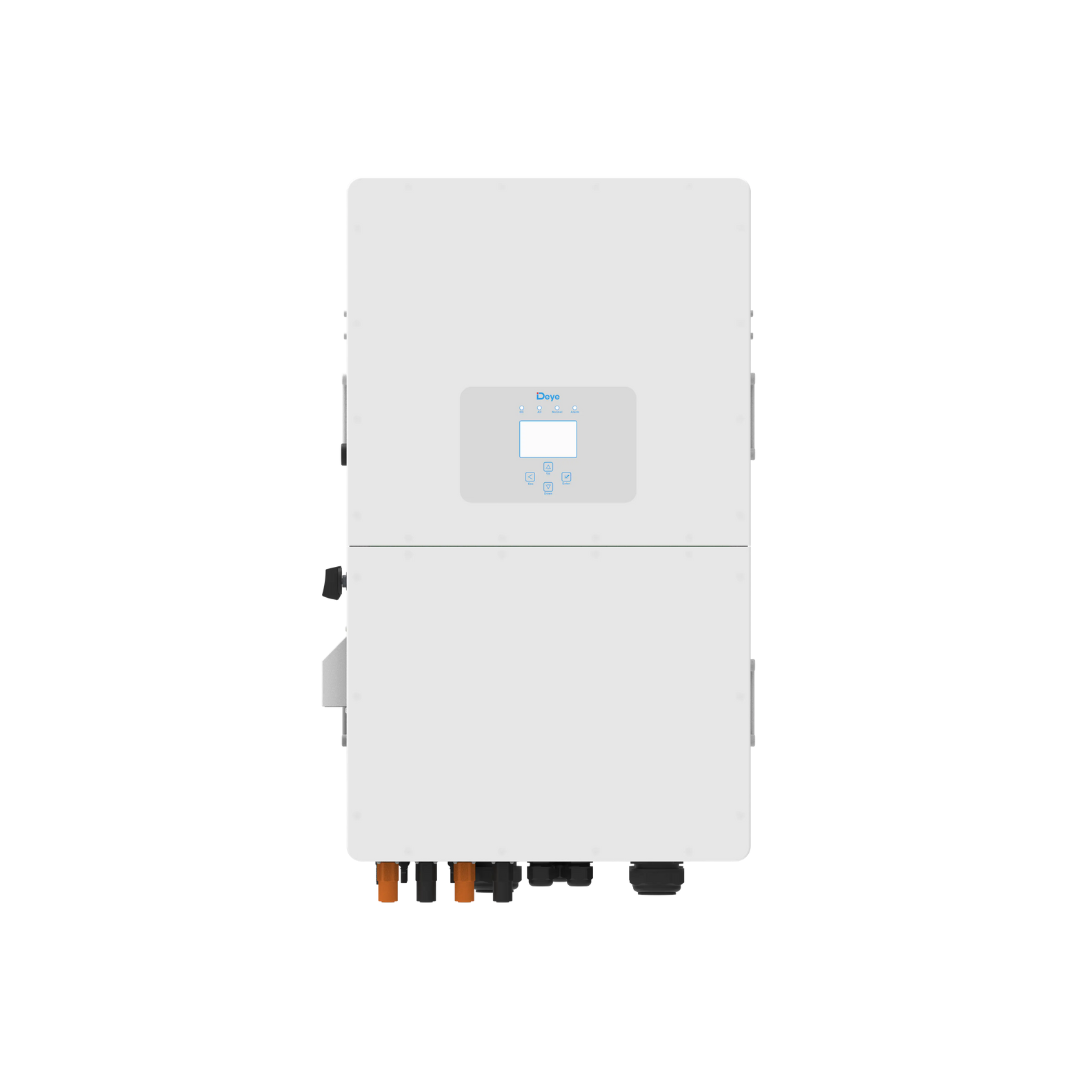

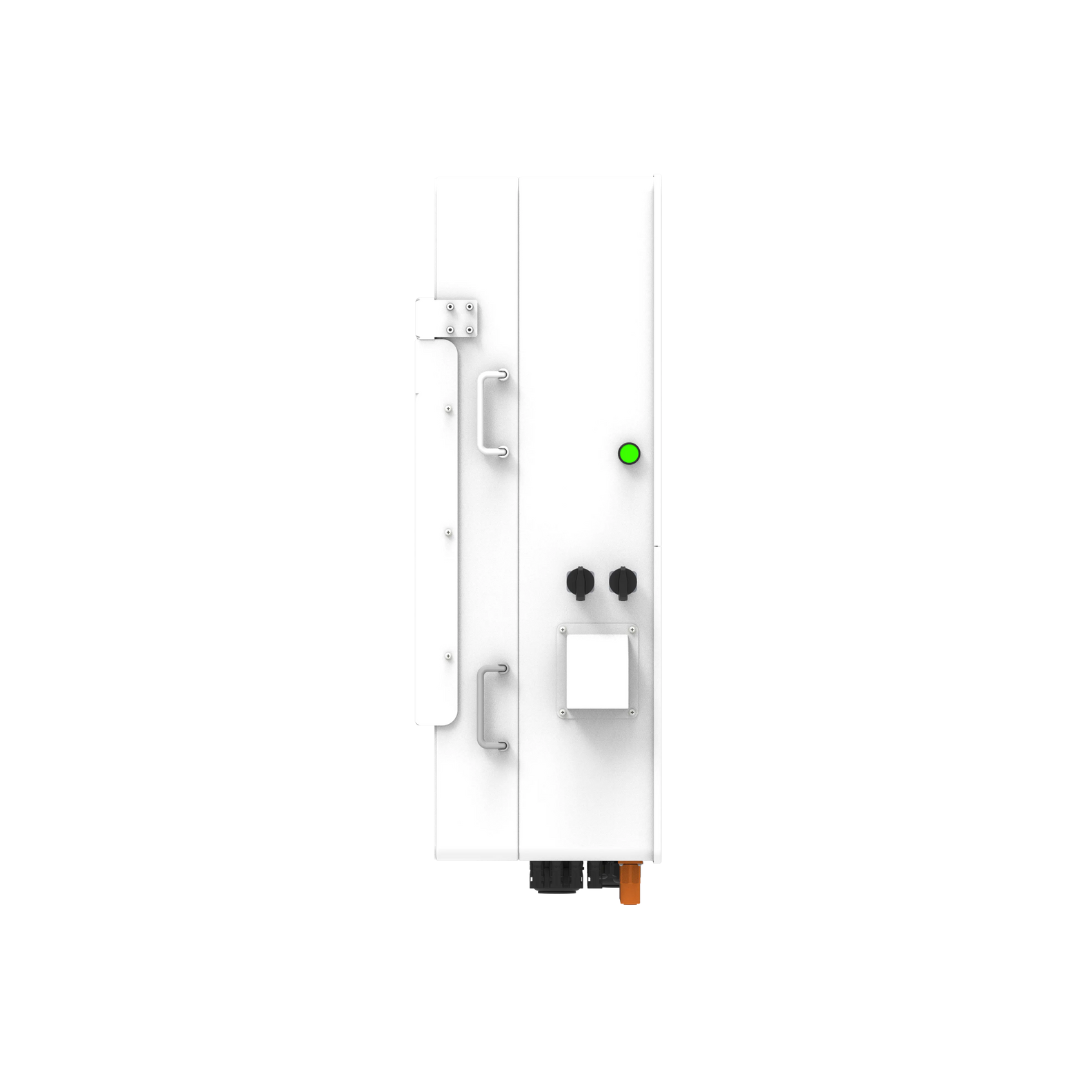

Deye 50kW Inverter High performance inverter for commercial & industrial applications.

5,950,000.00 inc Vat (6,396,250.00)

Brands:Deye

For a Deye 50kW inverter intended for commercial and industrial energy-storage applications, the relevant model is the Deye SUN-50K-SG01HP3-EU-BM4, a three-phase high-voltage hybrid inverter. Deye lists it as part of its 29.9–50kW commercial hybrid range.

Finance Schemes
Call 08112710155 To Place Your Order

Check Availability At

Pincode field should not be empty!
Add to Wishlist
Add to Wishlist

Description

Deye 50kW Hybrid Inverter – Specifications

Specification Details
Brand Deye
Model SUN-50K-SG01HP3-EU-BM4
Inverter Type Three-Phase High-Voltage Hybrid Inverter
Rated AC Power 50,000 W (50kW)
Max. AC Apparent Power 55,000 VA
Battery Type Lithium-ion
Battery Voltage Range 160–800 V DC
Number of Battery Inputs 2
Max. Charging Current 50A + 50A (100A)
Max. Discharging Current 50A + 50A (100A)
BMS Support Automatic/self-adaptive BMS communication
Maximum PV Input Power 65,000 W (65kW)
Maximum PV Input Voltage 1,000 V DC
PV Start-up Voltage 180 V
MPPT Voltage Range 150–850 V
Rated PV Input Voltage 600 V
Number of MPPTs 4
PV Strings 2 + 2 + 2 + 2
Max. PV Operating Current 36A + 36A + 36A + 36A
Max. PV Short-Circuit Current 55A + 55A + 55A + 55A
Rated AC Voltage 220/380V or 230/400V
Grid Connection 3L + N + PE, Three Phase
Grid Frequency 50/60 Hz
Max. Continuous AC Passthrough 200 A
Off-Grid Peak Power 1.5 × rated power for 10 seconds
Maximum Efficiency 97.6%
European Efficiency 97.0%
MPPT Efficiency >99%
Power Factor 0.8 leading to 0.8 lagging
THDi <3% at nominal power
Communication RS485 / RS232 / CAN
Monitoring Options Wi-Fi, GPRS, Bluetooth, 4G or LAN depending on configuration
Protection Rating IP65
Surge Protection Type II DC / Type II AC
Cooling Intelligent Air Cooling
Operating Temperature -40°C to +60°C; derating above 45°C
Humidity 0–100%
Maximum Recommended Altitude 2,000 m
Noise Level ≤65 dB(A)
Dimensions (W × H × D) 527 × 894 × 294 mm excluding connectors/brackets
Weight 80 kg
Warranty 5 years / up to 10 years depending on installation country and warranty policy

These values are from Deye’s official technical data for the SUN-50K-SG01HP3-EU-BM4.

Key Features

It supports 100% unbalanced output on each phase, AC coupling for upgrading existing solar installations, high-voltage battery systems, diesel-generator energy storage, six programmable battery charging/discharging periods, and parallel operation of up to 10 inverter units.

It also incorporates protections including DC reverse-polarity, AC overcurrent, overvoltage, short-circuit and thermal protection, anti-islanding, insulation-impedance monitoring and residual-current detection.

Short quotation description:
Deye SUN-50K-SG01HP3-EU-BM4 50kW Three-Phase High-Voltage Hybrid Solar Inverter, 160–800V Battery Input, 65kW Max. PV Input, 4 MPPT, 100A Max. Charge/Discharge, 97.6% Max. Efficiency, CAN/RS485 Communication, IP65, Wi-Fi Monitoring Support – suitable for commercial and industrial solar energy-storage applications.
