Description

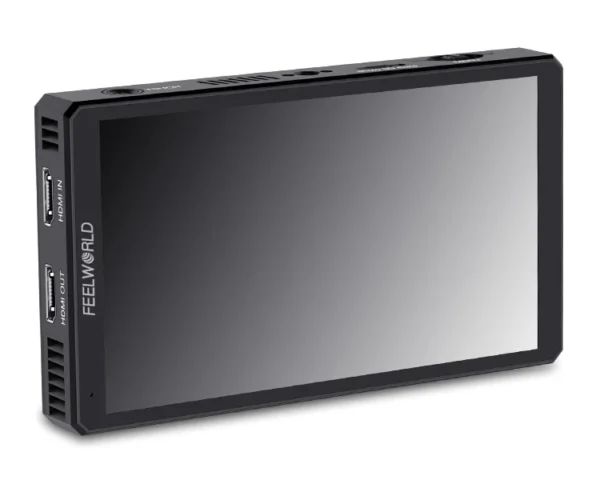

6-inchSDI/HDMI Portable Video Recording Monitor
CUT6S is the first monitor released by FEELWORLD that integrates monitoring and recording, it can record 1080P30 HD video with LUT via USB2.0. Ideal for photographers of simple daily tidbits or creators of relaxing and entertaining content sharing on social media，it can help them finish the production and improve work efficiency. 6-inch full HD touch screen, equipped with 4K HMDI input, HDMI loop-out LUT function, 3G-SDI input and output, and provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, easier setting.
1920×1080 Full HD Screen
Viewing clearly and capture every detail with confidence
CUT6S is equipped with 6-inch 1920×1080 high resolution touch screen, 8bit color depth, provides excellent details, make you enjoy clearer, richer color image and video.
Compact and Portable, Easy to Handle Every Scenes
The body is as thin as 2.3cm and weighs only 230g, which can be easily mounted on various camera racks. And perfect for using with a gimbal for on-site shooting and recording on the go.
USB2.0 Real-time Recording
The difference of CUT6S with common monitors is its USB2.0 recording function, it record the video image up to 1080p30 from compatible cameras, in MP4 format over HDMI. Only need to plug USB flash disk (supports FAT32 format ) and click the red recording key to start record. Recording time depends on the capacity of external storage media, for example 1-hour live broadcast recording takes up about 1860M of memory.
Recording with LUT Effect, Produce the Video Fast
When the LUT function is turned on, CUT6S can record video with LUT effect. For the simple contents such as tidbits of behind the scenes, can finish the video production fast, save the time cost.
Secondary Editing for The Live Streaming Material
When you use the PTZ camera for live streaming, it can’t record. Use the camera to record will easy too hot. That means you can only get the contents of live streaming from the highlights playback of the platform or local recording by OBS. However, OBS records the images of the final platform, and the recording from the platform needs to be uploaded, downloaded before editing. Using CUT6S is not only a pure shooting picture, but also can be used for secondary editing, and it can also be recorded with LUT, which saves the work of importing LUT in the later stage and quickly improves work efficiency.
The CUT6S adopts full touchscreen user interface provides incredible control, you can use simple tap and swipe gestures for the important monitoring functions without buttons. New UI menu, take the software functions are iconized, and the values at a glance. It is more convenient and quickly to operate the function. You also can operate via wheel button on the top of the monitor.
● On the top of the screen with red recording key and display the recording time . When the recording is about 1 minute, the information displayed on the top of the screen will be hidden automatically. You can click anywhere on the screen to view the recording time or click the recording key again to end the recording.
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the “<” or “>” key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside the menu to exit.
Built-in cooling fan, and can be adjust low, middle, high speed, escort for shooting.
Make for different needs
CUT6S comes with 3G-SDI input and output; HDMI 2.0 input that supports 4K 60Hz signal, HDMI output supports up to 1080p60. Compatible with film camera, DSLR camera, mirrorless camera, realize simultaneous monitoring by directors, photographers. For audio, CUT6S can record the follow audio of HDMI, and provides 3.5mm headphone jack to monitor audio.
Note: Under the 1080i signal, there will be a missing pixel at the edge of the image. For example, the frame will missing when inputting a panorama with frame, but it does not affect the using almost.
Power your DSLR or mirrorless camera
Provides auxiliary power out (DC OUT 8.4V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the CUT6S extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adapter (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
In addition to the DC 12V power input (can be using 12V/1.5A adapter), on the rear of CUT6S also has a F970 battery plate, which compatible with Sony F970, F960, F950, F930, F770, F750, F730, F570, F550, F530 battery to power.
Note: the battery not including, please purchase separately
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vector, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files).
After the LUT switch is turning on, HDMI output default to with LUT, which can output custom LUT image to other displays. When you are live streaming, you can connect the CUT6S output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
When you need to switch between HDMI and SDI signal, the latency of switching for CUT6S only about 3 frames, it is almost do seamless switching, the image smooth and clear.
CUT6S supports SDI to HDMI, you can input SDI signal then HDMI and SDI outputs at the same time, realizing multi-person monitoring.
Supports to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. CUT6S allows you to load internally up to custom LUTs (Up to 50 user files can be imported), looks or profiles at any time via micro SD card . Slot and instantly select between them, maintaining creative intent, always.
What you see is what you get
HDR could bring bigger dynamic range and more image details, for incredible clarity , which could restore the true color. There are HLG2020, HLG709, HLG P3 modes for optional.
Accurate All Waves Monitoring
When you need to analyze image quality more accurately than simply looking at the picture then use CUT6S’s built in all wave monitoring! Under all wave mode, you can choose from waveform (RGB/YUV), vector, histogram (Y, RGB, Y+RGB), audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. CUT6S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Meet your diverse need of monitoring
The monitor is equipped with 3 standard 1/4”mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
Upper with 180° viewing angle, base with 360° rotation
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
| Model | CUT6S |
| Screen Size | 6″ IPS |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X Micro SD Card | SD Card Slot (LUT files and firmware update file import) |
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI 1.4 |
| 1 X USB | USB 2.0 Recording (supports the USB flash disk of FAT32 format) |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
| Audio | 3.5mm Stereo Headphone |
| MP4 (1080P30) |
| 480i | 576i | 1080i@59.94/60 |
| 720p@50/59.94/60 |
| 1080p@23.98/24/25/29.97/30/50/59.94/60 |
| 1080psf@23.8/24/25/29.7/30 |
| SMPTE：720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60 |
| VESA：1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 |1360×768@60 |1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 |3840×2160@60 | 4096×2160@60 |
| SMPTE：720p@50/60 | 1080p@24/25/30/50/60 |
| VESA：1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 |1360×768@60 | 1920×1080@24/25/30/50/60 |
| Input Voltage | DC7～14V |
| Power Consumption | ≤11W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4″-20 Thread Socket ( Right, Top, Bottom) |
| Unit Size | 152Lx86Hx23D(mm) |
| Unit Weight | 230g |
| Color Box Size | 186L*124W*84H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | kgs |
