Description

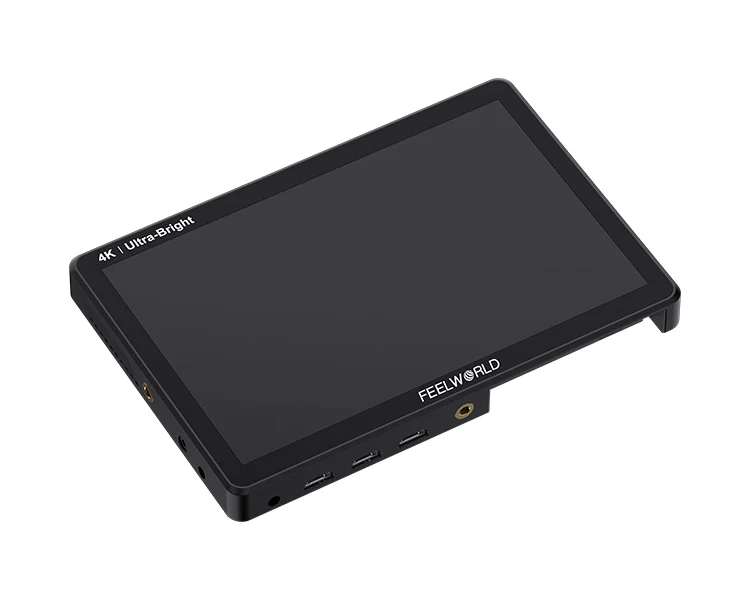

10.1-inch Professional 4K HDMI Camera Monitor
FEELWORLD LUT11H is a 10.1-inch with full touch screen, ultra brightness 2000nit professional camera monitor. Supports up to 4K@60Hz HDMI signal input and output. Provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, making the operation easier. There is a F970 external install and power kit on the rear of LUT11H, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The dual battery plates design can install two F970 batteries at the same time for long-time power supply even outdoors. Ideal for crew field shooting, monitoring and post-production.
Full HD IPS Panel
Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details,accurately reflect the original colors.
Multiple Color Gamut, Meet the Different Needs of Photographers
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
Ultra Bright 2000nits, Daylight Viewable
Ideal for outdoor shooting
Backed by 2000nits of brightness, LUT11H isn’t afraid to get a strong light. The screen visible clearly even outdoor shooting, no need to use sun-hood.
Light Sensor for Auto Dimming
Built-in an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
New UI Menu, More Intuitive and Intelligent
Adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
Custom Shortcut Keys
On the top of LUT11H comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Professional Auxiliary Tools, Help You Focus and Exposure Accurately
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. LUT11H allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
HDR Monitoring
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT11H becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz, which is transmitting without loss and the screen is more smooth and clear. And provides 3.5mm headphone jack to monitor audio.
Note: HDMI1 input default to loop-out from HDMI1 output, HDMI2 can’t loop-out
Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
DC Power Input and Output
The LUT11H is not only equipped with DC IN 12V (suit for use 12/3A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT11H extends camera run-time, while providing a more usable display.
Dual Battery Plates
Long-lasting power for outdoor shooting
The rear of monitor of LUT11H have dual battery plates, can install two standard NP-F batteries, long-lasting power for your screen. In addition, you can switch the battery quickly, just double tap the battery icon on the upper right corner of the monitor about 3 seconds to finish the switching, and don’t worry interrupting monitoring. Install one F970 battery (6600mah) last for about 2 hours, and install two F970 batteries last for about 3.5-4 hours. You can choose install 1 or 2 battery base on your need.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase separately. Higher capability (working time) will be longer)
Three Colors Tally Indicator
Strengthen the cooperation between the cameraman and the director
There is a rear TALLY light with 3 colors （green, red, yellow）display, and controlled via DB-9 ports at the bottom of the monitor.
Multi Languages Supporting
LUT11H built-in up to 9 languages, meet the different needed.
Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
-
FEATURES
* 10.1-inch 1920×1200 full HD IPS screen
* Touch screen menu operation, improve shooting efficiency
* Ultra-bright 2000nit, clearly visible in the sun
* Light sensor auto dimming
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
* Supports HDR monitoring, what you see is what you get
* Dual HDMI inputs support up to 4K@60Hz
* Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Built-in Tally Indicators (Red, Green, Yellow)
* Stereo Earphone output
* DC 8V power out to power your DSLR camera or mirrorless camera
SPECIFICATIONS
| Model | LUT11H |
| Screen Size | 10.1″ IPS |
| Resolution | 1920×1200 pixels |
| Pixel Pitch | 0.113(W) x 0.113(H) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 2000cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
| 2 X HDMI | HDMI |
| 1 X Tally | 9 Pin Connect |
| 1 X HDMI | HDMI |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
| Audio | 3.5mm Stereo Headphone |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840x2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/50/30/29.97/25/24/23.98) |
| Input Voltage | DC7～24V |
| Power Consumption | ≤26W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Install Way | 1/4″-20 Thread Socket ( Left, Right, Bottom) |
| Unit Size | 242Lx156Hx23D(mm) |
| Unit Weight | 810g |
| Color Box Size | 265L*110W*212H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 590*270*480 (mm) |
| Gross Weight | 17.43kgs |
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload |
| * Support Touch Menu |
| * Parade (RGB, YUV, Y) |
| * All Waves |
| * Vector |
| * RGB Histogram |
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus (Yellow, Magenta, Cyan, Red, Green, Blue, White seven peaking colors optional; 1~8 peaking level adjustable) |
| * False Colors (Spectrum, ARRI) |
| * Zebra Exposure (1%~100% adjustable) |
| * Check Field (Red, Green, Blue, Gray) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16: 1.85:1, 2.35:1) |
| * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.9:1, 5:4, 1:1.9) |
| * Marker Color ( Yellow, Magenta, Cyan, Red, Green, Blue, White) |
| * Color Temperature Adjustment (5600K, 6500K, 9300K, user) |
| * Nine Grid |
| * Zoom (1.0x~5.0x) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user) |
| * Pixel to Pixel |
-
ACCESSORIES
1× Monitor
1× Mini HDMI Cable
1× Power Adapter
1× U-shape Bracket
1× Manual
