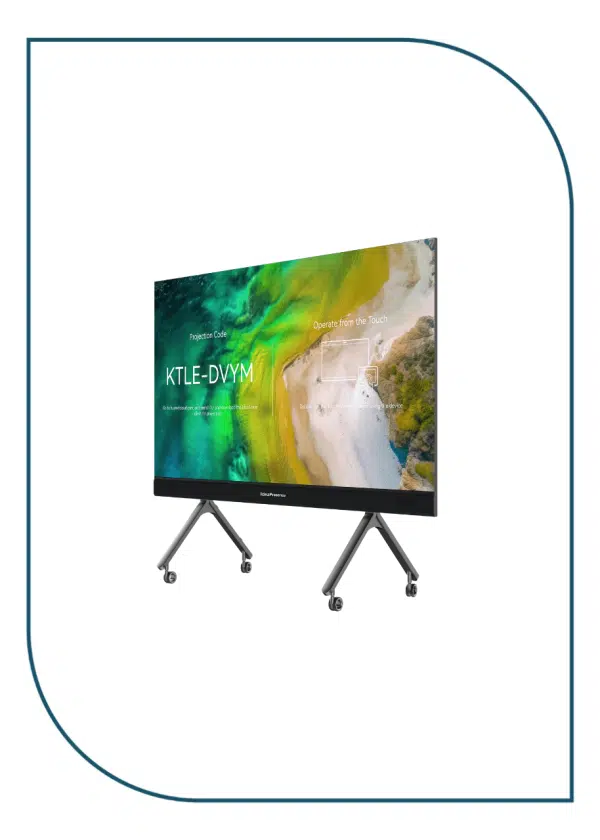

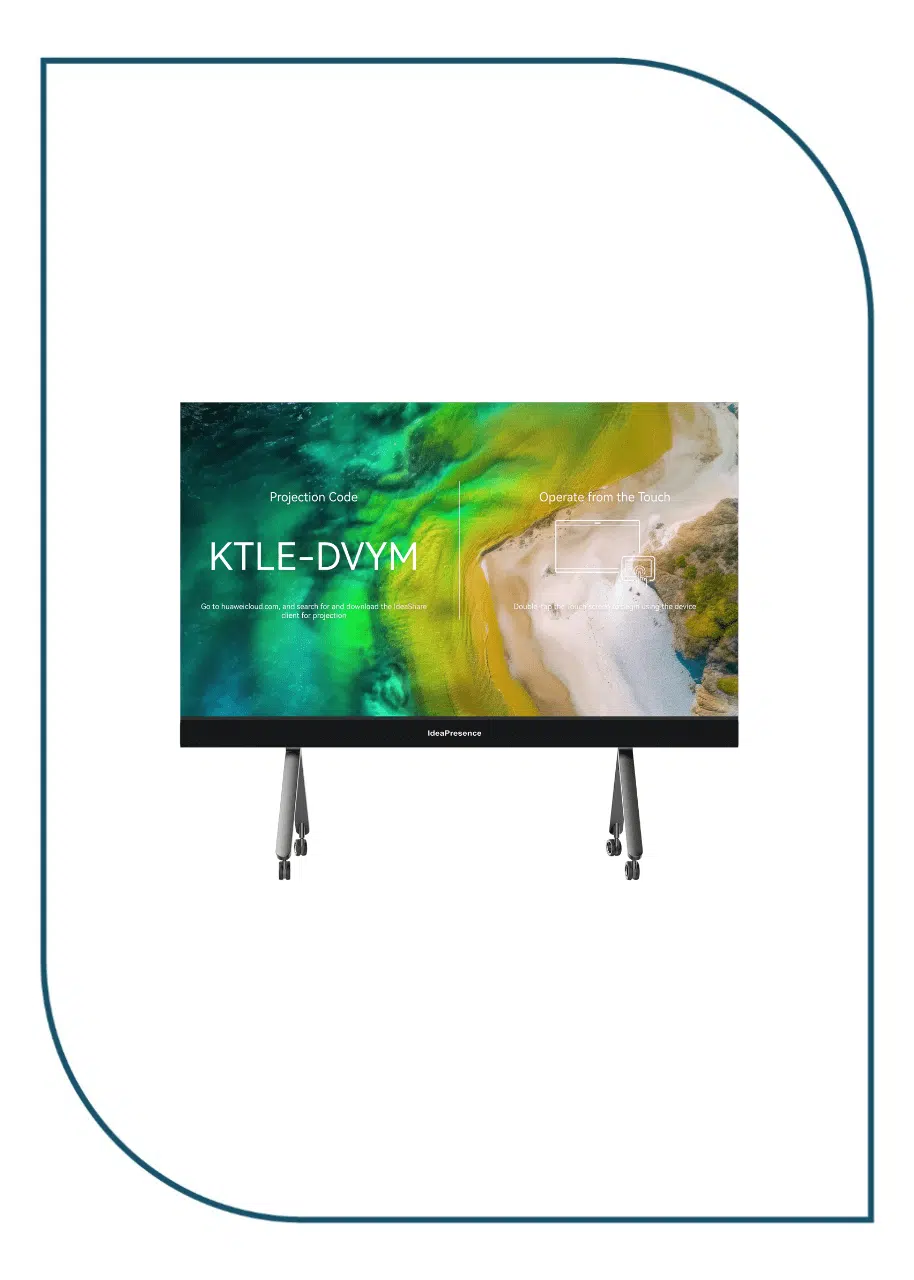

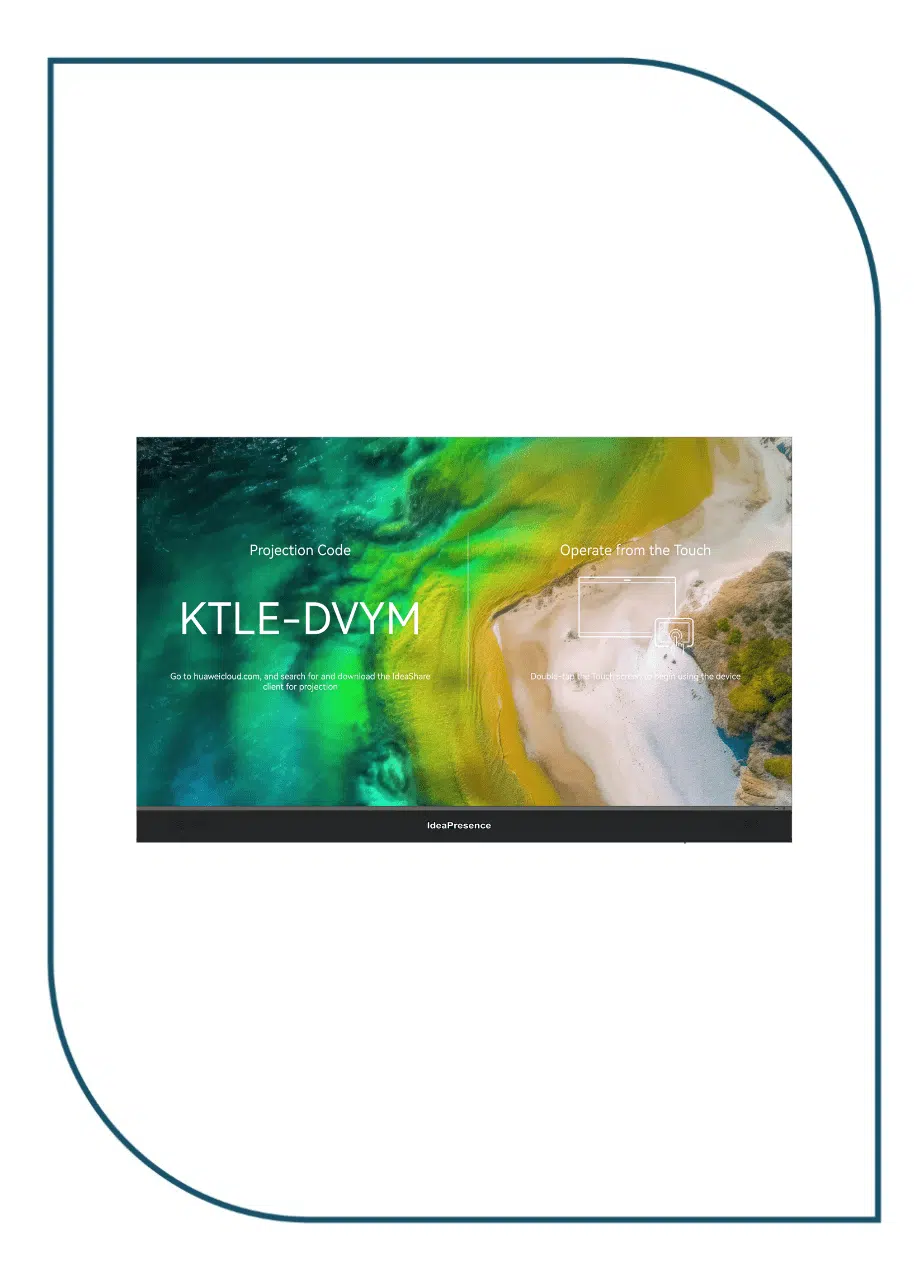

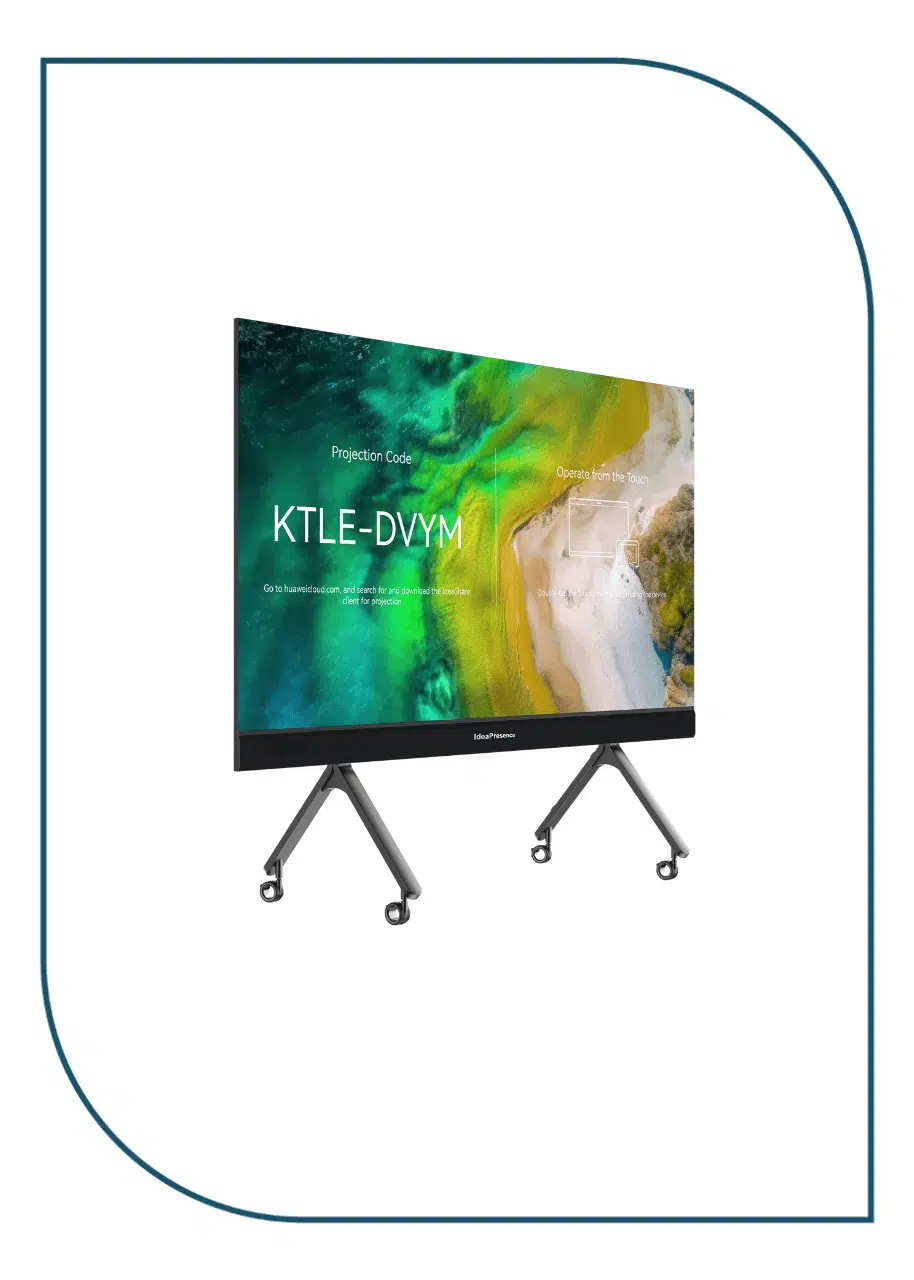

Huawei IdeaPresence 138 LED All-in-One 4K Display – Full Technical Specifications
The Huawei IdeaPresence 138 is a professional 138-inch Ultra HD LED display designed for executive boardrooms, large conference rooms, command centres, auditoriums, training facilities and corporate presentations.
It features advanced Flip-Chip COB (Chip-on-Board) LED technology, 4K resolution, high brightness, an ultra-fine pixel pitch and integrated stereo speakers.
The overseas 4K configuration is listed by Huawei under part numbers 02356HAM and 02357HWF. Confirm the exact SKU with the distributor before ordering.
Ekit
+1
1. Display specifications
Specification
Details
Brand
Huawei
Product Name
Huawei IdeaPresence 138
Product Type
Professional LED All-in-One Display
Display Size
138 inches (350.5 cm)
Display Technology
Direct-view LED
LED Packaging
Flip-Chip COB
Display Resolution
3840 × 2160 pixels (4K UHD)
Aspect Ratio
16:9
Pixel Pitch
0.7mm class (listed as 0.79mm)
Pixel Density
Approximately 16 PPI
Brightness
300–1,000 nits, adjustable
Nominal Brightness
600 nits in the overseas SKU description
Contrast Ratio
20,000:1
Refresh Rate
3,840Hz LED refresh rate
Viewing Angle
170° horizontal / 170° vertical
Colour Gamut
85% BT.2020
Colour Temperature
5,000–9,500K, adjustable
Grayscale
16-bit
Anti-Glare Technology
Supported
Front Protection Rating
IP65
Minimum Viewing Distance
Approximately 2 metres
Ekit
+2
2. Audio specifications
Specification
Details
Speaker System
Integrated stereo
Speaker Configuration
2 groups of 3 speakers
Speaker Power
2 × 20W + 20W
Maximum Sound Pressure Level
95dB
Frequency Response
60Hz–20kHz
The integrated audio system makes the display suitable for large meeting rooms and presentation environments without necessarily requiring separate speakers.
Huawei Enterprise
3. Connectivity and conferencing
Feature
Details
Video Input
1 × HDMI
Power Connection
1 × AC power input
Video Conferencing
Supported with compatible optional Huawei conferencing equipment
Dual-Stream Resolution
4K 30fps + 4K 30fps
4K 60fps Display
Supported with compatible conferencing codec
Wireless Projection
Supported with optional accessories
Picture-in-Picture
Supported with compatible codec
Meeting Management
Web-based or compatible Huawei Touch controller
Third-Party Integration
Open APIs through compatible conferencing systems
Important: Advanced video conferencing, wireless projection, meeting control and related security functions require compatible external equipment, such as a Huawei CloudLink Box 310/610. They should not be assumed to be included with the standalone LED screen.
shop.itegy.com.eg
4. Physical and electrical specifications
Specification
Details
Power Supply
AC 100–240V, 50/60Hz
Maximum Power Consumption
1,787W (standard IdeaPresence 138 datasheet)
Mounting Options
Wall mounting or floor-standing installation
Dimensions with Floor Stand
3054 × 2564 × 1034mm (W × H × D)
Dimensions with Wall Mount
3054 × 1888 × 147mm (W × H × D)
Weight with Floor Stand
Approximately 247.5kg
Weight with Wall Mount
Approximately 221kg
Operating Temperature
−10°C to +40°C
Storage Temperature
−20°C to +60°C
Operating Humidity
10–80% RH
These measurements are from a standard IdeaPresence 138 datasheet; exact dimensions, weights and power consumption should be reconfirmed for the overseas SKU, as Huawei has published different revisions.
shop.itegy.com.eg
+2
5. Standard package and optional accessories
Standard package:
1 × Huawei IdeaPresence 138 LED All-in-One display
1 × Power cable
1 × HDMI cable
Mounting bracket or floor stand, according to the ordered configuration
Optional accessories:
Huawei CloudLink UHD conferencing codec
Conference camera
Microphone system
Huawei Touch controller
Huawei IdeaShare wireless presentation key
Additional information
Weight
250 kg
