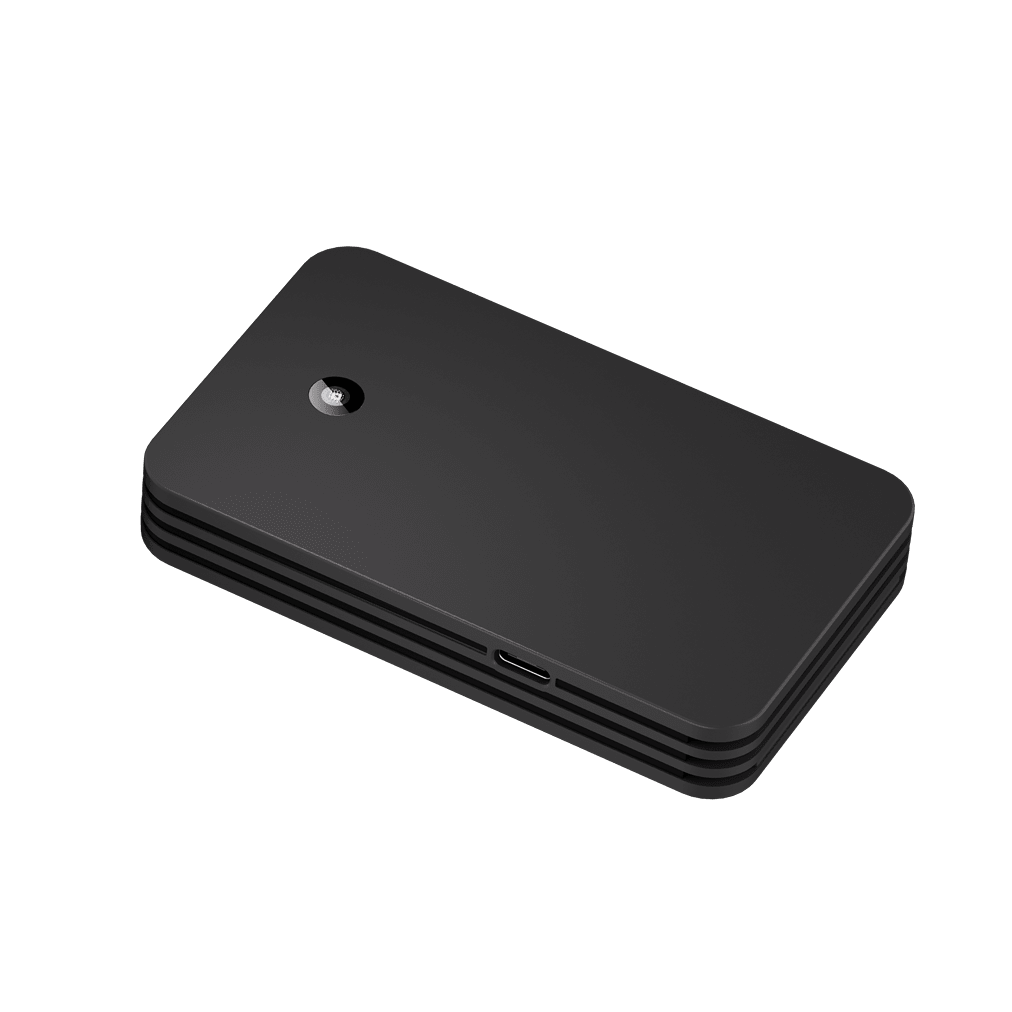

Jimiiot LL309

Brands:JimiIOT
  • The LL309 doesn’t miss a beat, even when the signal fades. With 20,000 data points stored locally, it’s always ready to upload once the connection returns. Whether you’re on a long-distance cold-chain trip or in a remote area, it’s the ultimate backup, ensuring your assets are always accounted for, because they can’t wait.
Finance Schemes
Call 08112710155 To Place Your Order
Add to Wishlist
Add to Wishlist
SKU: LL309 Categories: ,

Description

Storing the Truth
Data That Speaks

Rugged? Absolutely.
Ready? Always.

The LL309 is designed to withstand whatever nature throws at it, whether it’s rain, dust, or extreme conditions. With its durable build and long-lasting power, it keeps working tirelessly in the background, ensuring your assets are always protected without the constant worry of recharging or maintenance. It’s not just about surviving; it’s about enduring, making sure your assets stay secure, no matter how long the journey.

Why LL309?

It’s not just about knowing where your things are. It’s about ensuring that, no matter what, they’re exactly where they need to be. The LL309 combines precision tracking, environmental monitoring, and unmatched reliability into one rugged, easy-to-use solution.

Track. Monitor. Protect.

LL309 combines precision tracking and environmental monitoring for optimal asset security. With robust data storage, weatherproof durability, and flexible power modes, it ensures your assets stay safe and compliant. Real-time alerts and easy setup provide smooth management, making LL309 the perfect solution for cold chain protection and high-value asset oversight.

Dual-Core Functionality

LL309 combines GPS/BDS/LBS positioning with temperature and humidity monitoring, ensuring assets stay on track and within optimal conditions.

Robust Offline Data Storage

Store up to 20,000 entries of location and environmental data, perfect for cold chain compliance even in areas with poor signal.

Weather-Resistant and Durable

With IP67 protection, the LL309 thrives in harsh environments, withstanding -20°C to +70°C temperatures and water exposure.

Flexible Power & Modes

The 2500mAh battery lasts up to 30 days, with Timing, Intelligent, and Power-Saving modes for efficiency in any scenario.

Comprehensive Alerts

Get real-time alerts for temperature deviations, tampering, vibration, and low battery, keeping assets secure during transit.

Easy Setup

Quickly configure via Bluetooth and the Jimi IoT Lab app, making deployment and adjustments simple, no tools required.

Positioning & Location

Technology
GPS, BDS, LBS

Accuracy
< 2.5m CEP

Tracking sensitivity
–148 dBm

Acquisition sensitivity
–168 dBm

TTFF (open sky)
Avg. hot start ≤1s; Avg. cold start ≤32s

Cellular

Technology
LTE Cat. 1

Frequency
LL309
LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66
LTE-TDD: B41

Power

Battery
2500mAh Li-Po battery (rechargeable)

Working modes
Mode 1: Timing Mode
Mode 2: Intelligent Mode
Mode 3: Power-saving Mode

Battery life
30 days (one update per hour)

Interface

LED indication
GNSS (Blue), Battery (White), Cellular (Green)

SIM
Nano-SIM

Memory capacity
20,000 data entries (for export); 5000 GPS data entries (buffer)

Tamper proof
Light sensor

USB
Type-C

GNSS antenna
Internal

Bluetooth antenna
Internal

Feature

Voice monitoring range
N/A

Sensors
Light sensor, Temperature and humidity sensor

Scenarios
Tamper alert, Temperature & humidity exception alerts, Vibrating alert, Low battery alert

Mount method
Wall hooks

Bluetooth
BLE 5.1

RFID
N/A

Configuration support
SMS, Tracksolid Pro, PC Tools, Jimi IoT Lab

Certification
FCC

Operating Environment

Operating temperature
–20℃ to +70℃

Operating humidity
0% to 100%

IP rating
IP67

Physical Specification

Dimensions
100 × 60 × 15mm

Weight
108g

Standard Packing

LL309 unit
1

Type-C cable
1

Adhesive wall hooks
2
