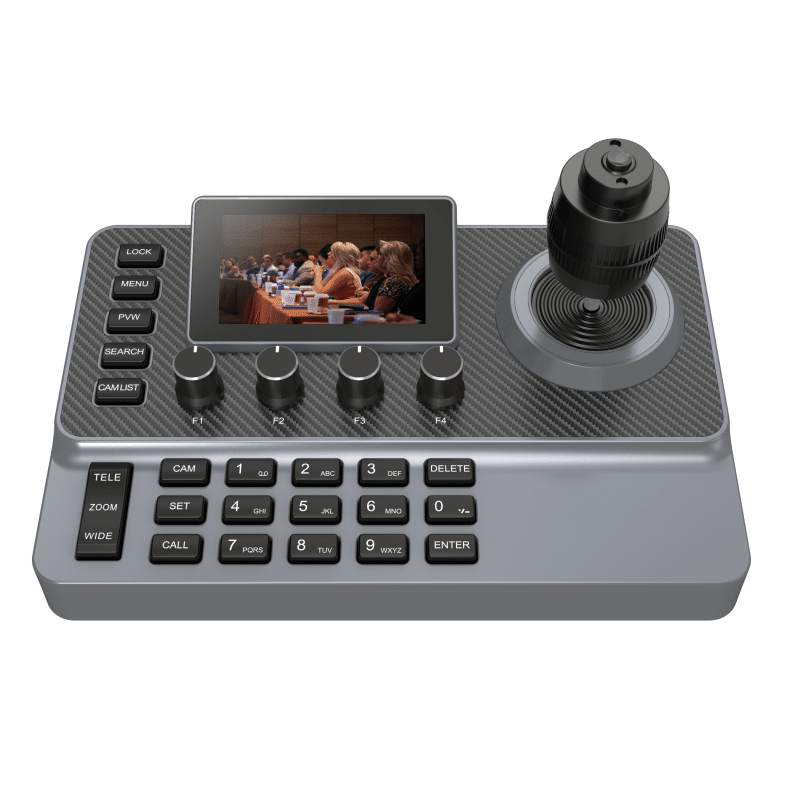

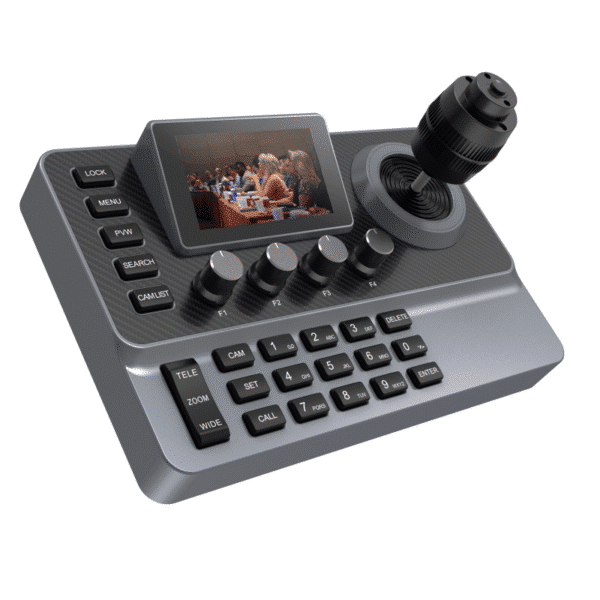

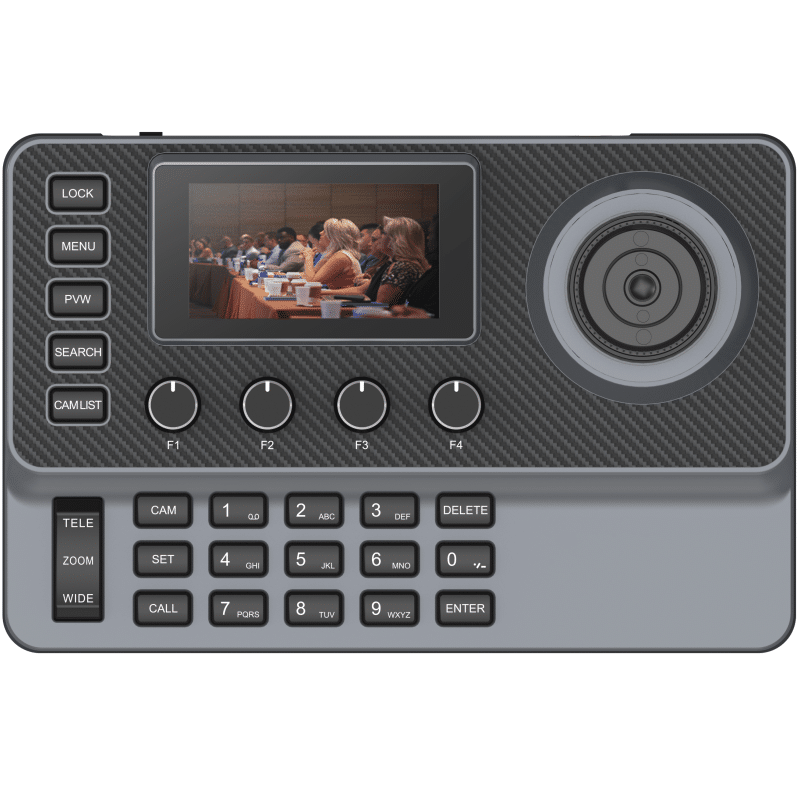

KATO KC10 Multifunction PTZ Controller

Brands:KATO

4D precise Joystick+3D knobs+ergonomic zoom button: Camera parameters control such as white balance, exposure, focus and zoom etc.

Built-in 3-inch color screen: Support real-time PVW of current camera viewing through up streaming (NDI|HX2 and RTSP only).

Supports HDMI output for large screen display (Not standard version): Real-time preview through the HDMI interface, supporting up to 4KP30 ultra high definition resolution.

Newly upgraded UI operation interface: Display main parameters of cameras directly, personalize stylish interface casually.

Remote control of PTZ camera menu: Open camera’s menu quickly and combine PVW screen or image screen to control. * This function is recommended to be used with our camera.

Support customizable buttons: Support customizable buttons F1, F2,F3, F4, can set the best operation function according to requirement.

White and red backlight silicone buttons: High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.

Support buttons lock via one click: Lock buttons via one click to avoid misoperation.

Multiple control protocols, apply to abundant venues: Support VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif and NDI, support automatic protocol recognition. * Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details.

Abundant interfaces, multiple connection methods: External RS422/485 serial port and RJ45 network interface. The network interface supports POE function, thereby reducing wiring trouble.

Finance Schemes
Call 08112710155 To Place Your Order
Add to Wishlist
Add to Wishlist
Category:

Description

Keyboard Parameters
Joystick 4D precision Joystick
Knobs 3D knobs, Supports calibrated parameter adjustments through rotation.
Buttons High-quality silicone buttons, support white and red two-color backlight
Screen 3″ LCD color display
Button Prompt Tone Button sound prompt On/Off
Lock Button Support one-key lock function
Max. Control Quantity 1000
Max.Preset Position 255
Customized Knob
Horizontal Speed Support
Tilt Speed Support
Zoom Speed Support
Aperture Support
Shutter Support
Gain Support
Exposure Mode Support
Red Gain Support
Blue Gain Support
Keying Support
Wb Mode Support
Wb Speed Support
Gain Limit Support
Maximum Shutter Speed Support
Minimum Shutter Speed Support
Auto Exposure Speed Support
Exposure Compensation Support
Blc Support
Ir Filter Support
Nd Filter Support
Gamma Curve Support
Gamma Offset Support
Gamma Pattern Support
Anti-Flicker Support
Noise Reduction Mode Support
Noise Reduction Value Support
Ptz Reset Support
Digital Zoom Support
Auto Focus Support
Manual Focus Support
Camera Support
Camera Select Support
User Instructions Support
Control

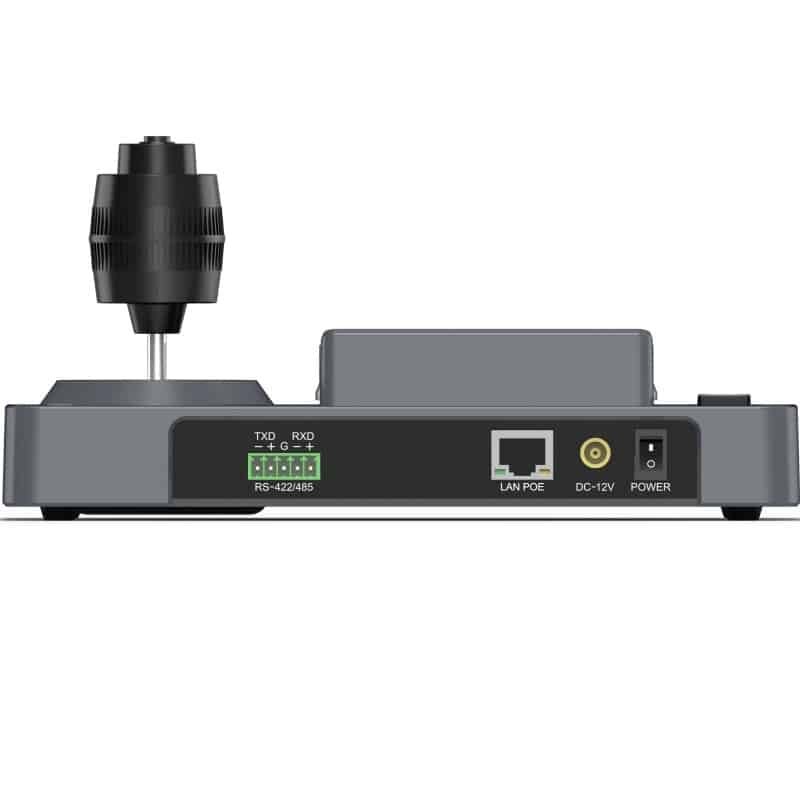

Control Interface RJ45 (supports POE and NDI®|HX2 optional)、RS-422/485
IP Control Protocol Onvif, VISCA Over IP, VISCA TCP, NDI® (optional)
Serial Port Protocol VISCA, Pelco D, Pelco P
Power Supply
Input Voltage 12V
Input Current 0.25A
POE 802.3af
Rated Power 3W
General Specifications
Operating Environment Indoor
Operating Temperature -10°C~40°C
Storage Temperature -20°C~60°C
Dimension (W)210*(D)138*(H)101mm (Joystick height is included)
Weight 0.8 kg

Additional information

Weight 1 kg
