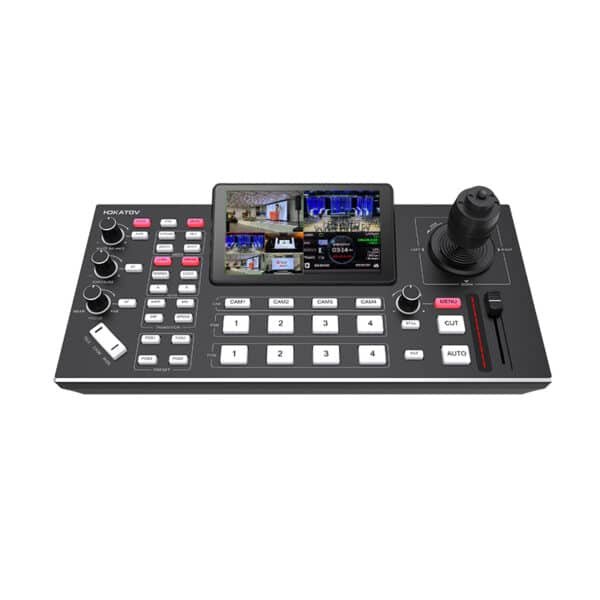

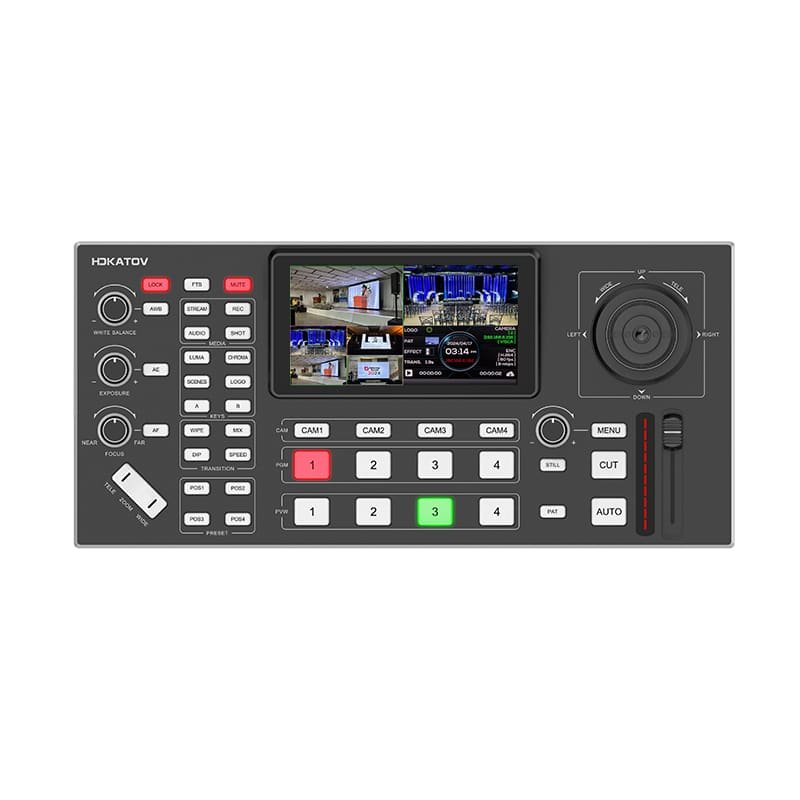

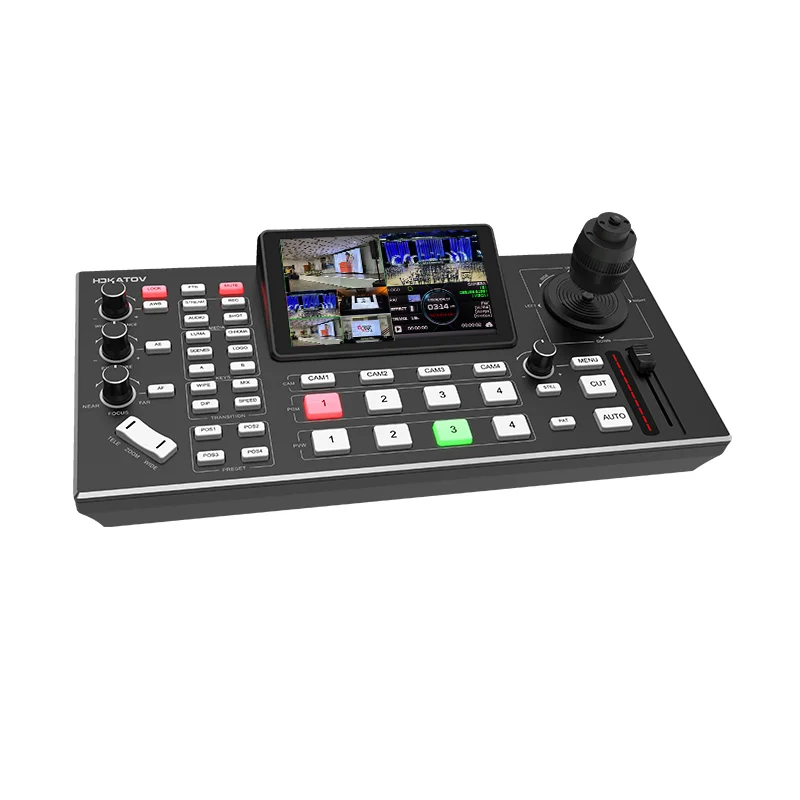

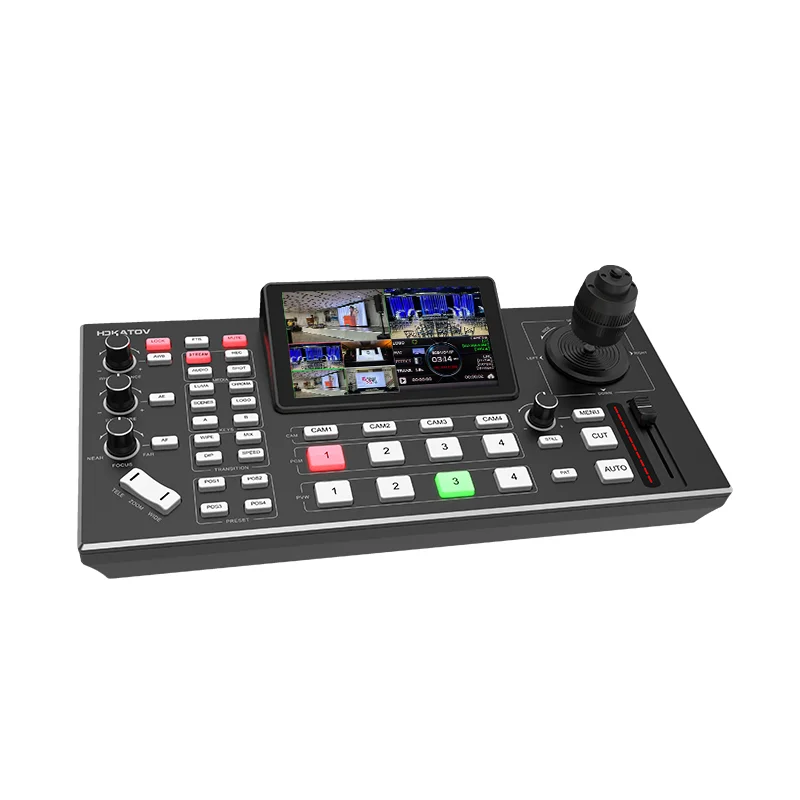

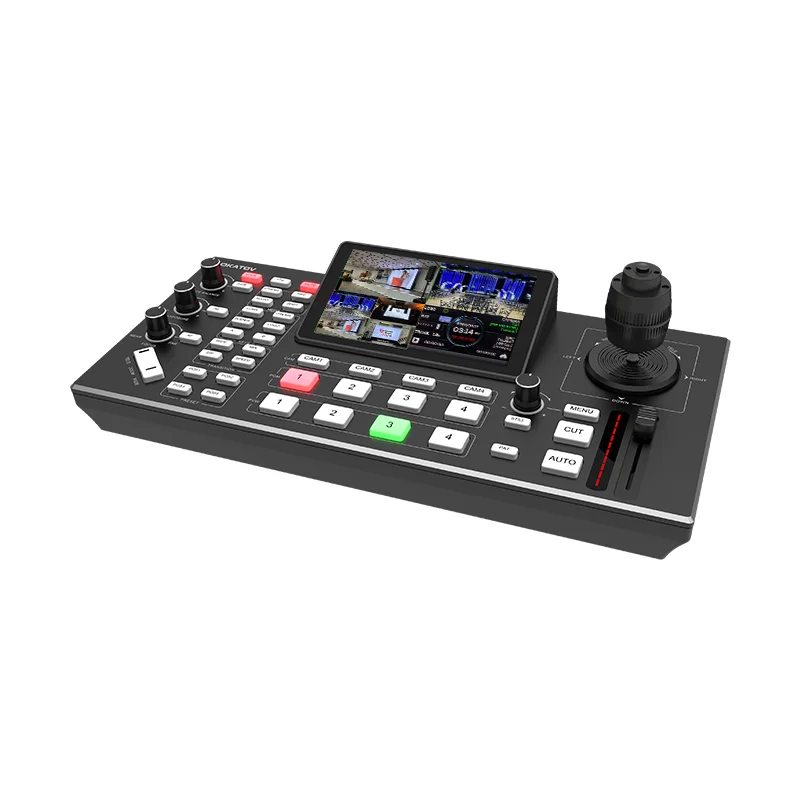

5-inch full HD LCD display: Built-in 5-inch HD screen, Integrates live streaming and monitoring functions.
Support T-shaped fader switching video output control: Damping feel fader, supports 30 switching effects.
4 HDMI input video sources, 2 PGM HDMI output: Supports up to 4 video inputs and 1080P60 image input.
1 channel UVC video signal output.
Supports RTMP streaming protocol, live broadcast at any time: Supports RTMP streaming media protocols to implement streaming; supports stream size setting and simultaneous streaming from 2 addresses.
Dual HDMI outputs: Both channels can output PGM
A variety of PIP layouts and transition effects, which can be freely converted according to needs: Supports multiple PIP and POP layouts and multiple transition functions.
MP4 video recording, retains wonderful works: Supports MP4 format video recording and saving. Supports USB mobile hard disk storage.
Convenient and fast camera control functions: 4D joystick PTZ control; supports VISCA Over IP control protocol.
Powerful WEB control background: Supports remote control of broadcasting and parameter configuration through the WEB background, and supports WEB equipment upgrades
1 Channel USB output, USB supports audio and video output
1Channel IP output, supports RTMP, RTMPS
Support UVC and IP simultaneous output

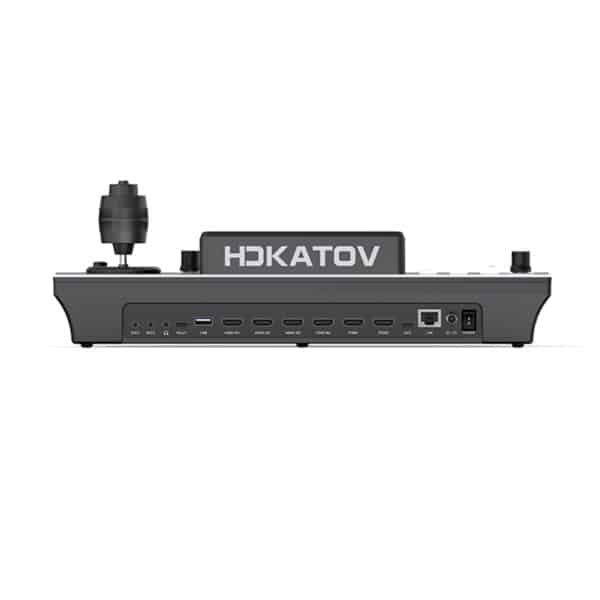

Audio Input Interface
4 sets of HDMI audio inputs
2 channels 3.5mm MIC IN input
Audio output Interface
1 set of 3.5mm headphone monitoring jack
RJ45 Ethernet
RJ45x1, Ethernet supports 10/100/1000 BaseT, which can be used for live streaming, background settings, and software updates
Computer Interface
1xUSB TYPE C for UVC video output
1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT)
Format Parameters
Video Input Format
1080p 60/59.94/50/30/29.97/25/24/23.98
1080 i50/1080 i60
720p 60/59.94/50/30/29.97/25/24/23.98
576i/480i/576p/480p
Video Output Format
1080p 60/50/30/25/24
1080i50/1080i60
HDMI Color Space
RGB/YUV
USB Acquisition Output
Max: 1080P60,support USB audio output
Local File Playback
Video file format: MP4
Image file format: PNG,JPG,BMP
File Recording Format
MP4
Storage Media
Support U disk storage(FAT32, NTFS, exFAT)
File Recording Resolution
1920×1080
File Real-time Playback
Support
Specifications
Video System
FULL HD
Monitor Screen
5.5inches
Monitor Minimum Resolution Requirements
1920×1080 pixels
LOGO
1 set
Clock Display
Support
Operating Mode
Horizontal screen(16:9)
Tally
Support (Tally control box needs to be purchased separately)
Stunt Switch
CUT & AUTO
Special Effects
36 kinds of stunts, the switching duration can be set
PIP Model
Support(8 channels PIP and POP model)
Layers
Background, A, B, LOGO multiple layers
Layer editing support: size, position, graphics mask, area mask
Keying
Chroma key Luma Key
Language Mode
Simplified Chinese, English
Audio
Mixer
4-channel audio virtual mixer with switch and mode settings for each channel
Analog Audio Input
2 channels of 3.5mm MIC IN input, gain range(-60-24db)
Analog Input Delay
0-500ms
Analog Audio Output
1 Channel unbalanced stereo output line out
1 Channel headphone monitoring output
Audio Input Level Range
0dB~60dB
Audio Sample Rate
48kHz
Audio Format
AAC encoding; streaming and recording 2 channels, 16bit, compression bit rate support: 128k (default), 48k, 64k, 96Kbps;
PTZ Control
PTZ Control
VISCA Over IP control protocol
PTZ Control Quantity
4 Channels
PTZ Camera Control Method
4D Joystick
PTZ Aperture Control
Support
PTZ Focus Control
Support, manual/auto
PTZ Exposure Control
Support, manual/auto
PTZ Exposure Mode
Red gain value, blue gain value adjustment
TALLY Instruct
Equipped with the tally control box, the camera can be switched and controlled synchronously with tally lights.
Remote Control
Support mobile phone and WEB web page control
Software Update
Firmware Upgrade
Connect directly to a Windows computer using the Ethernet interface.
Power Supply
Input Voltage
External 12V2A power supply
Input Current
0.8A(Max)
POE
Non support
Rated Power
10W(Max)
General Specifications
Usage Environment
Indoor
Operating Temperature
0℃-40℃
Storage Temperature
-10℃-60 degrees
Color
Black
Dimension
(W)354* (D)165* (H)121mm(Including rocker height)
Weight
2.0kg
Additional information
Weight
2 kg
