Description
Tech Specs
PERFORMANCE
Processor
Up to Intel vPro® with 13th Gen Intel® Core™ i9-13900H (14C, 20 threads, 5.4GHz P-Core Max, Turbo 5.4GHz, 24MB Cache)
Operating System
- Windows 11 Pro – Lenovo recommends Windows 11 Pro for business
- Windows 11 Home
- Windows 11 Pro (preinstalled with Windows 10 Pro for Downgrade)
- Ubuntu® Linux®*
- Red Hat® Enterprise Linux® (certified)
*Select versions available via preload
Graphics
Optional discrete:
- NVIDIA® RTX™ 2000 Ada (8GB GDDR6 VRAM)
- NVIDIA® RTX™ A1000 (6GB GDDR6 VRAM)
- NVIDIA® RTX™ A500 (4GB GDDR6 VRAM)
Optional integrated:
- Intel® Iris® Xe*
*Dual-channel memory required
Memory
Up to 96GB DDR5 5600MHz*
*Memory spec frequency listed; system support frequency may vary by configuration.
Storage
Up to 2 x 2TB PCIe Gen4 NVMe SSD
Battery
- 90WHr
- Rapid Charge support
- Rapid Charge: 60 minutes = 80% runtime
RAID
0/1
Audio
- Dual speakers
- Dolby Audio™
Camera
- FHD 1080p with webcam privacy shutter
- Optional: Hybrid FHD 1080p & infrared (IR) with webcam privacy shutter
CONNECTIVITY
Ports/Slots
- 2 x USB-C Thunderbolt™ 4
- 2 x USB-A 3.2 Gen 1 (5Gbps, 1 x always on)
- HDMI 2.1*
- Headphone / mic combo
- SD Express 7.0 card reader
- Optional: Smart card reader
*Supports resolution up to 4K@60Hz.
USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.
Wireless
WLAN:
- Intel® WiFi 6E AX211 (2x2ax)* with vPro + Bluetooth® 5.3**
WWAN:
- Optional: FIBOCOM L860-GL-16 LTE CAT 16 with eSIM
Optional:
- Near Field Communication (NFC)
* 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation. Only available with Windows 11,
** Bluetooth® 5.3 is hardware ready but may run at a lower version due to OS limitation.
Keyboard
- Backlit
- Spill-resistant
- Numeric keypad
DESIGN
Display
- 16″ WQUXGA (3840 x 2400) IPS, 16:10 aspect ratio, 800 nits, 100% DCI-P3, antiglare, low blue light, DisplayHDR 400, Dolby Vision®, X-Rite Factory Color Calibration, TUV, Eyesafe®
- 16.0″ WUXGA (1920 x 1200) IPS, 16:10 aspect ratio, 300 nits, 100% sRBG, antiglare, low blue light, TUV
- 16.0″ WUXGA (1920 x 1200) IPS, touchscreen, 16:10 aspect ratio, 300 nits, 45% NTSC, antiglare
- 16.0″ WUXGA (1920 x 1200) IPS, 16:10 aspect ratio, 300 nits, 45% NTSC, antiglare
Dimensions (H x W x D)
24.66mm x 365.00mm x 261.92mm / 0.97″ x 14.37″ x 10.31″
Weight
Starting at 2.20kg / 4.85lbs
Color
Black
SUSTAINABILITY
Material
- 90% recycled magnesium on C cover
- 90% post-consumer content (PCC) recycled plastic used in speaker enclosure
- 85% PCC recycled plastic used in key caps on keyboard
- 90% PCC recycled plastic used in the battery pack enclosure
- 30% PCC recycled plastic used in 135W & 170W slim AC adapters
- Low-temperature solder: SSD, TrackPad, fingerprint reader module
- Plastic-free packaging with 90% recycled and/or sustainable content*
*Packaging composed of recycled, and/or biobased, and/or sustainably forested content.
Certifications / Registries
- ENERGY STAR® 8.0*
- EPEAT® Gold, where applicable**
- RoHS Compliant
- TCO 9.0
*Certification available on select models.
*Visit www.epeat.net for registration status by country.
OTHER INFORMATION
ThinkShield Security
- Discrete Trusted Platform Module (dTPM) 2.0
- Fast Identity Online (FIDO) authentication capabilities
- Webcam privacy shutter
- Kensington Nano Security Slot™
- Ultrasonic human presence detection (requires IR camera)
- Modern Standby
- Optional: Fingerprint reader integrated with power button (match-on-chip)
- Optional: Facial recognition login via Windows Hello (requires IR camera)
Power Supply
135W or 170W slim AC adapter
ISV Certifications
- 3ds Max®
- 3DEXPERIENCE®
- Adobe® Premier Pro®
- ANSYS®
- ArcGIS®
- Creo®
- HyperWorks®
- MicroStation®
- NX®
- Solid Edge®
- SOLIDWORKS®
See the complete list of ISV certifications
Preloaded Software
Lenovo Commercial Vantage (with Windows OS only)
What’s in the Box

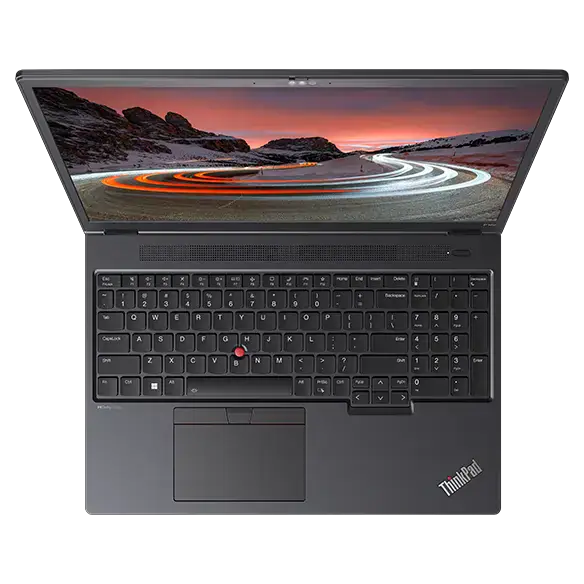

- ThinkPad P16v (16″ Intel) mobile workstation
- 135W or 170W slim AC adapter
- Quick Start Guide
Specifications may vary depending upon region / model.
Ports & Slots
- 1
Optional: Nano-SIM card slot
- 6
HDMI 2.1
- 2
Headphone / mic combo
- 7
SD Express 7.0 card reader
- 3
USB-A 3.2 Gen 1 (always on)
- 8
Optional: Smart card reader
- 4
USB-A 3.2 Gen 1
- 9
USB-C Thunderbolt™ 4
- 5
Kensington Nano Security Slot™
- 10
Power in
