Description

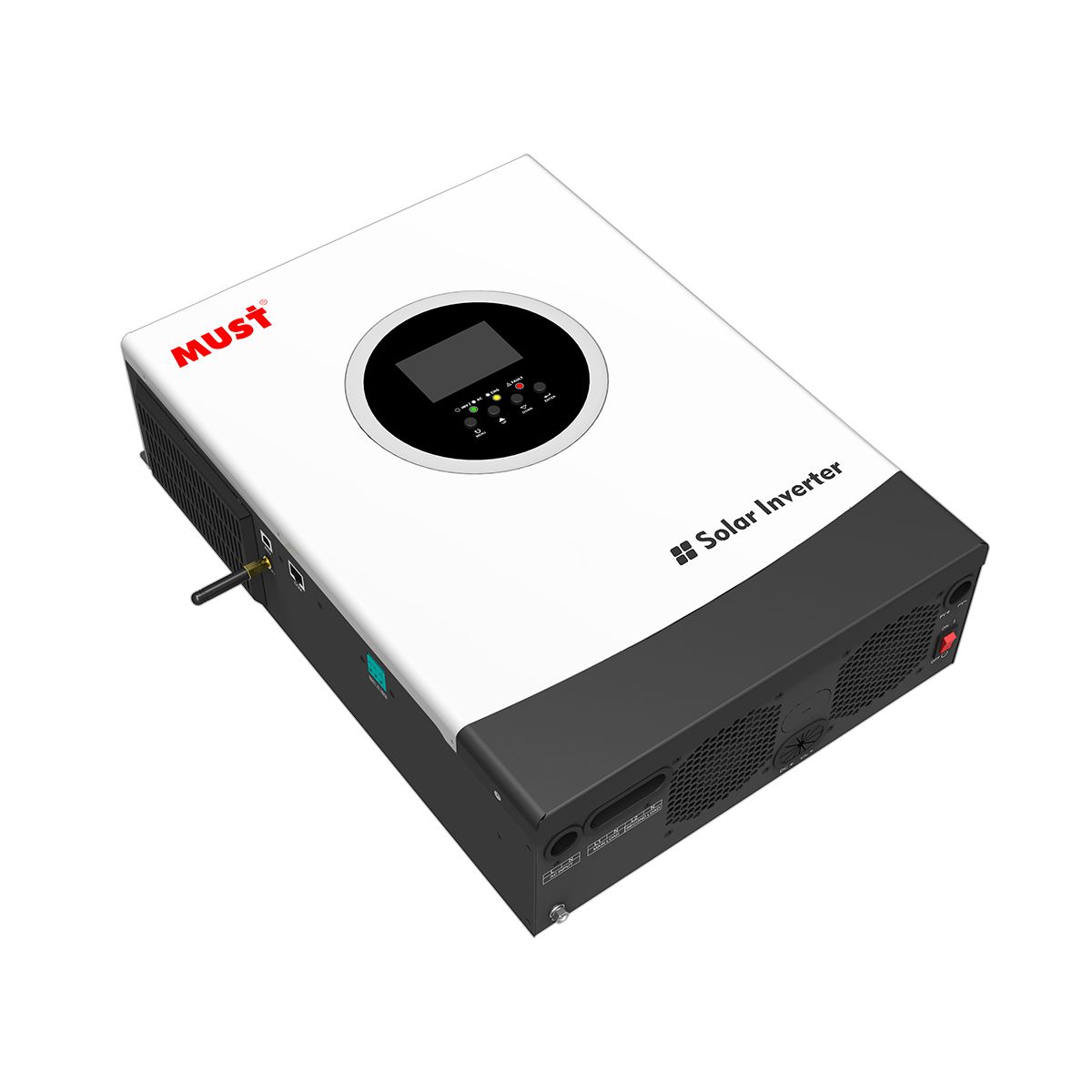

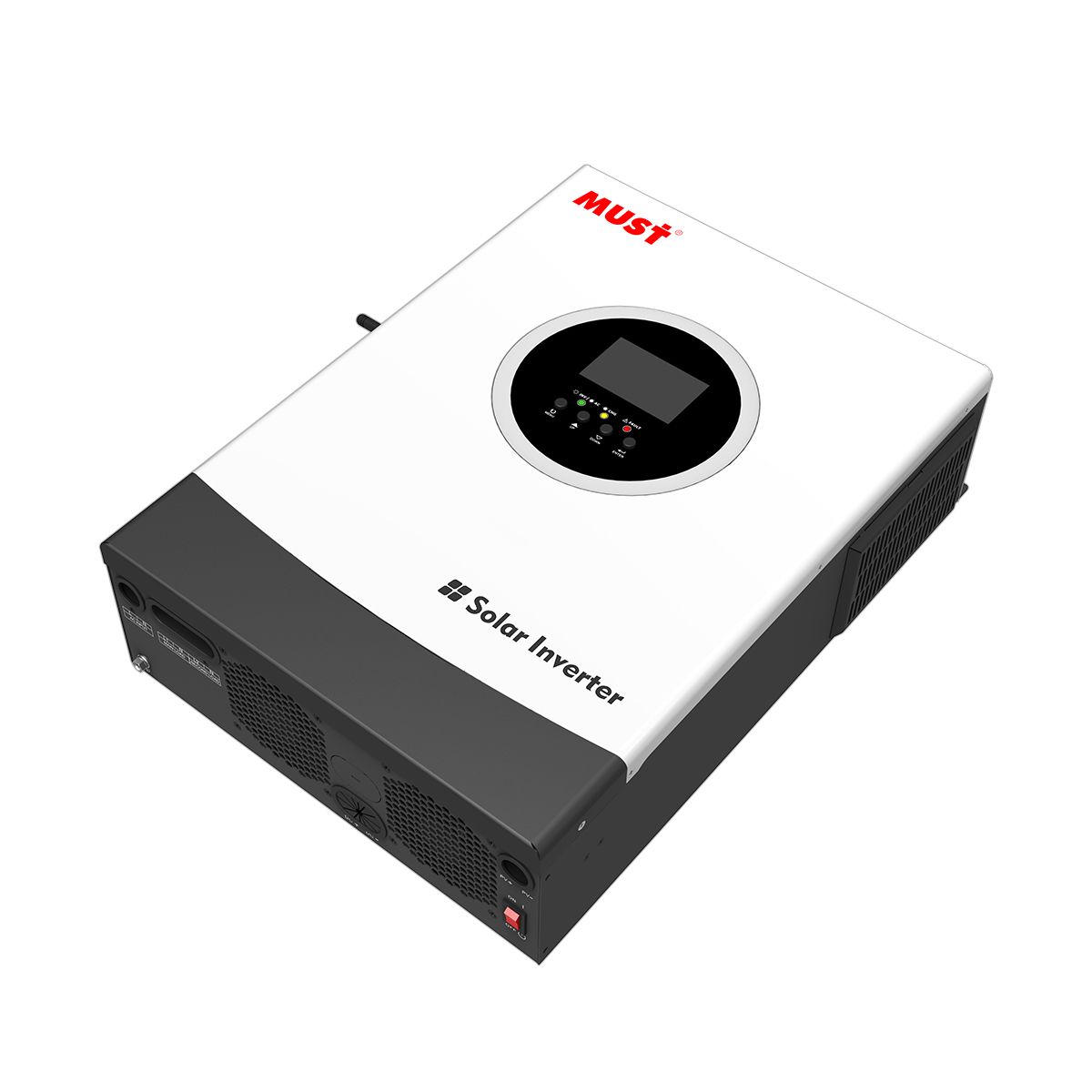

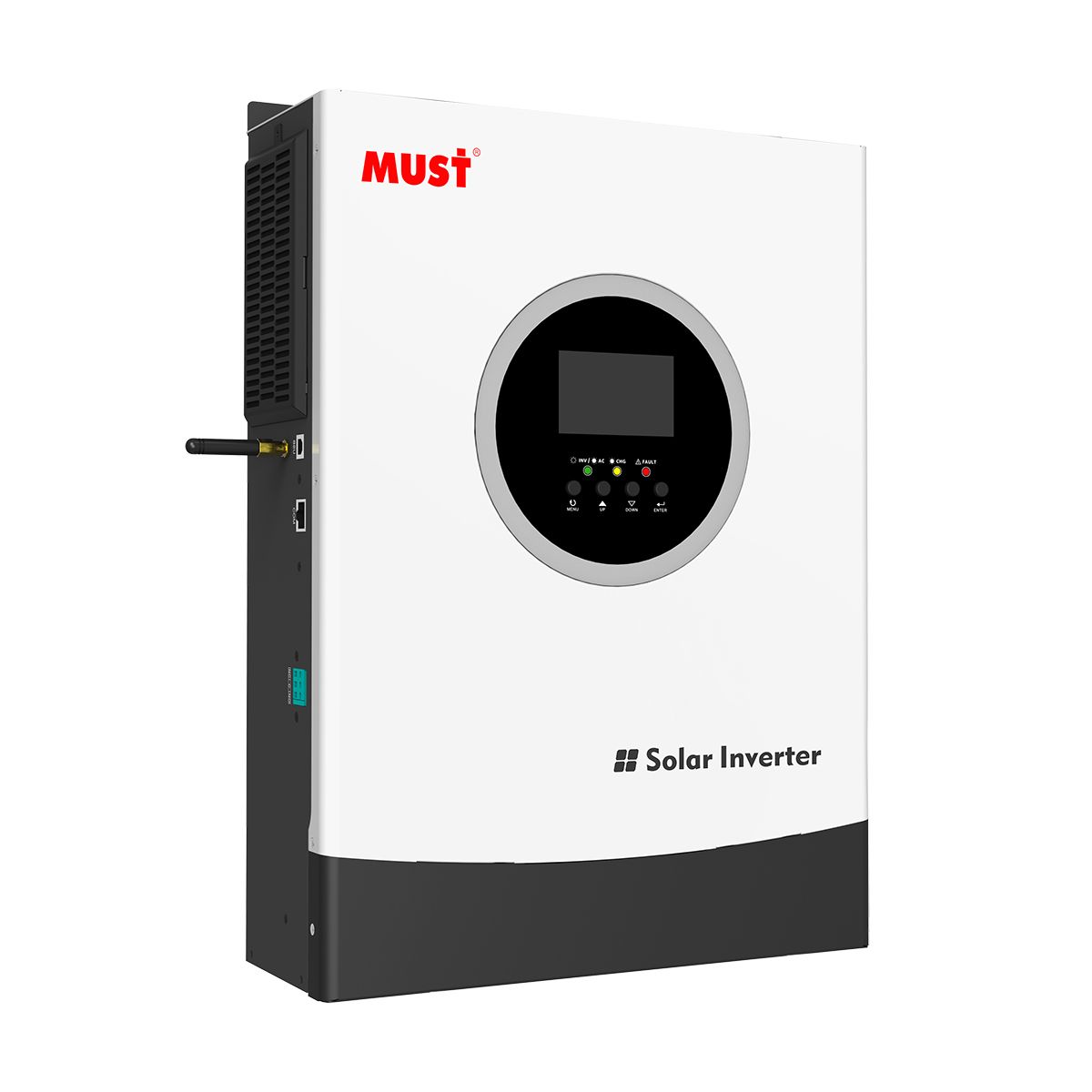

MUST PV18-3624 PREM 3.6kW 24V Hybrid Solar Inverter – 100A MPPT with Wi-Fi
The MUST PV18-3624 PREM is a single-phase, high-frequency pure sine wave hybrid solar inverter/charger designed for a 24V battery bank. It combines an inverter, 100A MPPT solar charge controller, AC battery charger, and intelligent energy management in one unit. Scribd
| Specification | Details |
|---|---|
| Brand | MUST |
| Series | PV1800 PREM |
| Model | PV18-3624 PREM |
| Product Type | Hybrid / Off-grid Solar Inverter Charger |
| Rated Output Power | 3,600W / 3.6kW |
| System Voltage | 24V DC |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 230V AC |
| Output Frequency | 50Hz / 60Hz, auto sensing |
| Output Power Factor | 1.0 |
| Solar Charge Controller | Built-in MPPT |
| Maximum Solar Charging Current | 100A |
| PV MPPT Operating Range | Approx. 60–360V DC |
| Maximum PV Open-Circuit Voltage | 400V DC |
| Maximum PV Input Power | Approx. 4,000W |
| Maximum AC Charging Current | 60A |
| Battery Type | Lead-acid, AGM, GEL and lithium/LiFePO₄ configurations |
| BMS Communication | CAN / RS485 support |
| Wi-Fi | Yes – remote monitoring supported |
| USB | Yes |
| Display | LCD status/configuration display |
| AC Input | 230V AC nominal |
| AC Input Range – UPS Mode | 170–280V AC |
| AC Input Range – Appliance/Generator Mode | 90–280V AC |
| Transfer Time | Approx. 10 ms |
| Battery-less Operation | Supported |
| Generator Compatibility | Yes |
| Installation | Wall mounted |
| Operating Temperature | Typically 0°C to +50°C |
| Protection | Overload, short circuit, over-temperature, battery overcharge/deep discharge and reverse-polarity protections |
| Standard Warranty | Manufacturer literature indicates 2 years; seller warranty may vary |
The 3.6kW/24V rating, 100A MPPT, Wi-Fi, USB, RS485/CAN interfaces and high-voltage PV input are also reflected in current listings for this exact PV18-3624 PREM model. Prom.ua
Key Features
The inverter is designed to operate with solar PV, utility/grid or generator, and a 24V battery bank. A particularly useful feature of the PREM series is its ability to operate without a battery, allowing solar and AC sources to power loads under suitable conditions. Prom.ua
It also provides Wi-Fi remote monitoring, while USB, RS485 and CAN interfaces support monitoring and communication. CAN/RS485 connectivity is especially useful when integrating compatible lithium batteries and their BMS. Prom.ua
Solar PV Input
For this model, available specifications indicate a 100A MPPT controller, approximately 60–360V DC MPPT range, 400V DC maximum PV open-circuit voltage, and around 4,000W maximum PV input power. Prom.ua
This high-voltage MPPT architecture allows multiple solar panels to be connected in series, reducing PV cable current compared with low-voltage MPPT systems.
Battery Compatibility
The inverter uses a 24V battery system and can be configured for common battery chemistries including:
LiFePO₄ / lithium batteries, AGM, GEL and flooded/sealed lead-acid batteries. Compatible lithium batteries can make use of the inverter’s communication interfaces where supported by the battery BMS.
