Must Battery (2.5kWh-30kWh) 15 Units Parallel CAN/RS485 WiFi/Bluetooth Multi-Installation LP1600 LiFePO4

927,000.00 907,000.00 inc Vat (975,025.00)

You Save 2.2%(₦20,000.00)

Brands:MUST

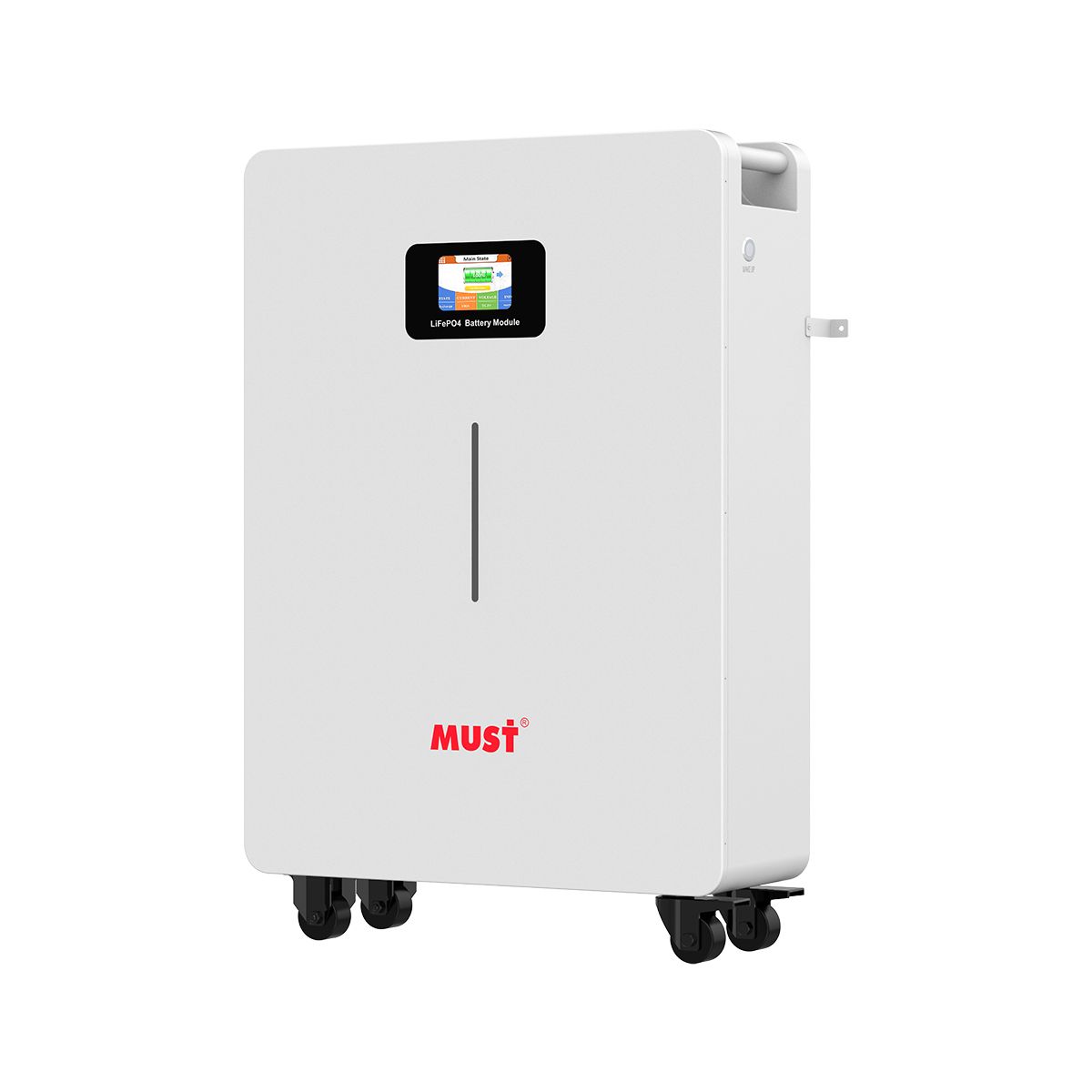

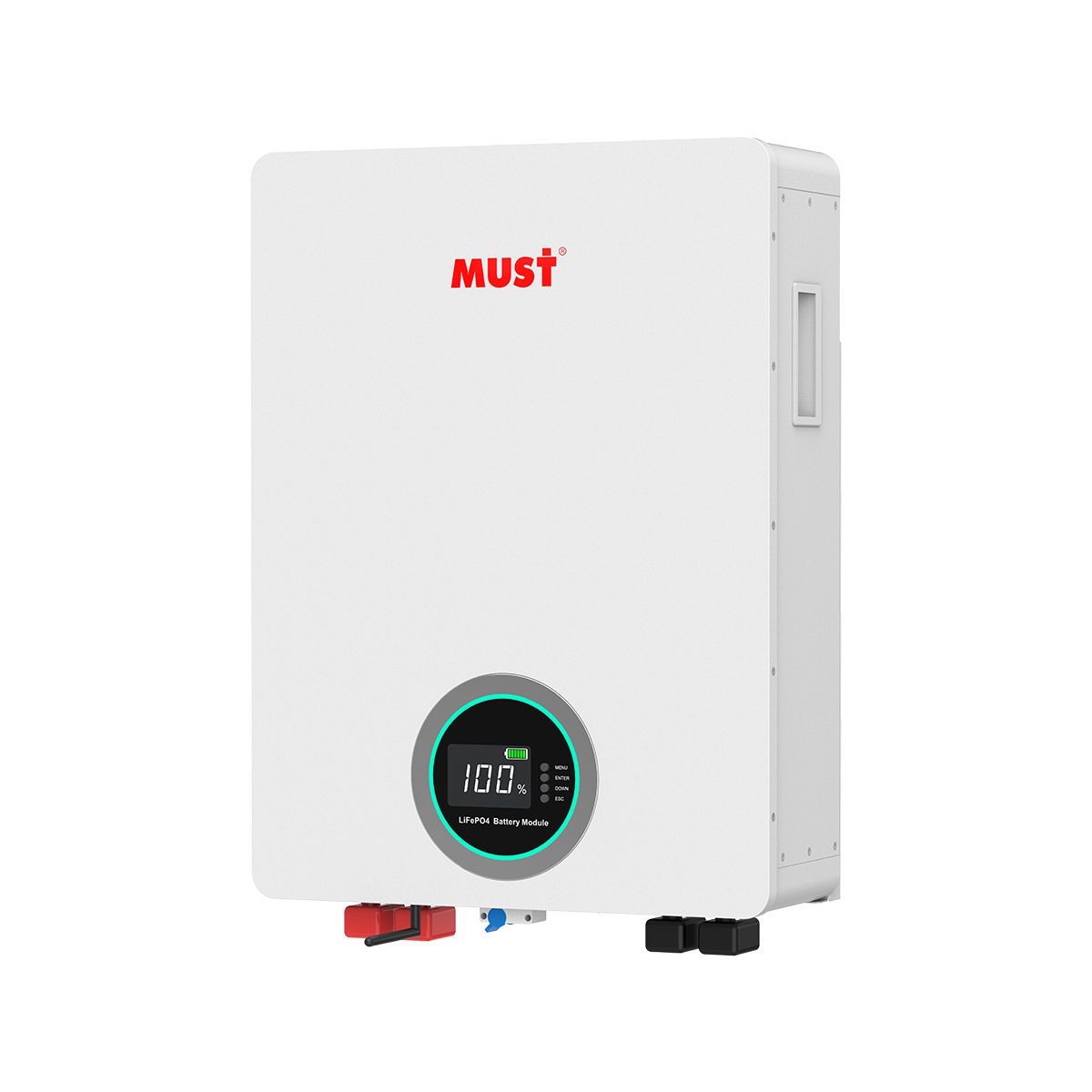

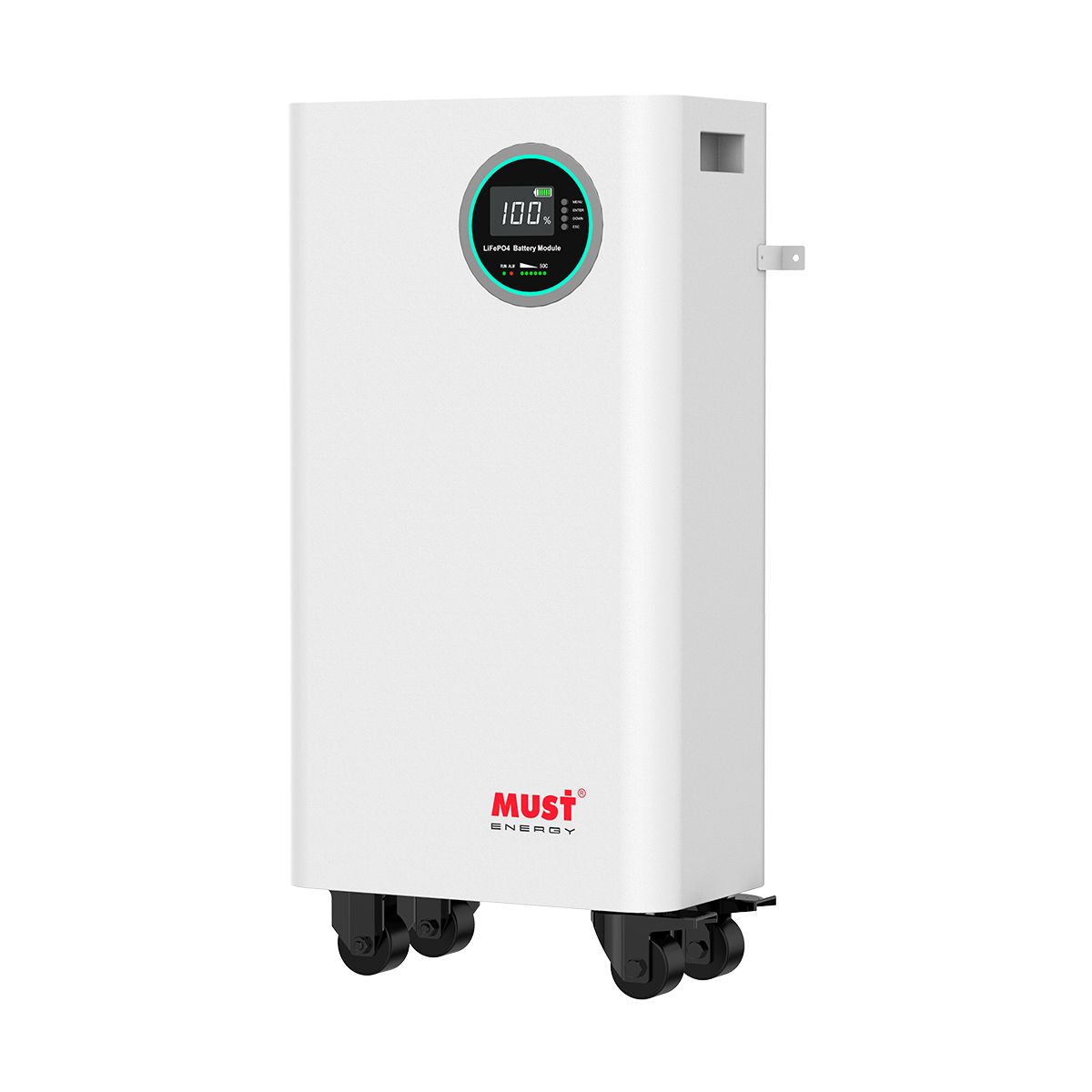

  • The LP1600 Series is a professional-grade LiFePO4 Energy Storage Battery designed for maximum flexibility and scalability. Featuring a robust SPCC Metal Housing, it supports versatile installation options including Rack-Mount, Wall-Mount, Stacked, and Vertical (Wheeled) configurations. With capacities ranging from 2.56kWh to a massive 30.72kWh per un
Finance Schemes
Call 08112710155 To Place Your Order

Check Availability At

Pincode field should not be empty!
Add to Wishlist
Add to Wishlist
SKU: LP1600 LiFePO4 Category:

Description

Key Features


  • Ultimate Installation Flexibility:
     One battery, multiple mounting styles. Supports standard 19-inch Rack Mounting, space-saving Wall Mounting, modular Stacking, or Vertical Standing (with optional wheels on larger models) to fit any garage or utility room.

  • Massive Energy Density: Offers a wide range of capacities from 100Ah (2.5kWh) up to an industry-leading 600Ah (30.72kWh) in a single cabinet, reducing the number of units needed for large systems.

  • Industrial-Grade Scalability: Advanced BMS allows for the parallel connection of up to 15 units, enabling system expansion up to hundreds of kWh for commercial applications.

  • Smart Connectivity: Built-in WiFi and Bluetooth modules allow users to monitor battery health, SOC, and cycles in real-time via a smartphone app.

  • Universal Inverter Compatibility: Equipped with CAN2.0, RS485, and RS232 ports, ensuring seamless communication and closed-loop control with most major hybrid inverter brands (e.g., Victron, Growatt, Deye, MUST).

  • High-Discharge Power: The 48V models support continuous discharge currents of 100A to 200A, capable of driving high-power inverters (5KW-10KW) without throttling.

  • Long Lifespan: Rated for ≥6000 cycles at 80% DOD, providing over 10-15 years of daily service.

Applications

  • Home Energy Storage: Stackable design fits neatly in corners, storing solar power for night use.

  • Commercial Backup: Parallel capability supports large loads in offices or server rooms.

  • Off-Grid Systems: High capacity 48V models (300Ah/400Ah/600Ah) reduce wiring complexity for large off-grid arrays.


Core Specifications Table

(Models grouped by Voltage. Values separated by “/” indicate capacity options.)

Model LP16-24100 LP16-24200 / 24300 LP16-48100 / 48200 LP16-48300 / 48320 LP16-48410 / 48600
Nominal Voltage 25.6V 25.6V 51.2V 51.2V 51.2V
Capacity 100Ah 200Ah / 300Ah 100Ah / 200Ah 300Ah / 320Ah 410Ah / 600Ah
Energy 2.56kWh 5.12kWh / 7.68kWh 5.12kWh / 10.24kWh 15.36kWh / 16.38kWh 20.99kWh / 30.72kWh
Max Cont. Discharge 100A 150A / 200A 100A / 150A 200A 200A
Max Output Power 2.5KW 3.5KW / 5KW 5KW / 7.5KW 10KW 10KW
Dimensions (mm) 442*486*177 442*487*250 / 442*495*230 442*626*177 / 442*687*250 490*923*265 600*1093*264 / 744*1093*264
Net Weight (kg) 27 45 / 58 45 / 81 117 / N/A 170 / 208
Communication CAN/RS485 CAN/RS485 CAN/RS485 CAN/RS485 CAN/RS485
Protection Level IP21 IP21 IP21 IP21 IP21

Additional information

Weight 4.6 kg
