Description

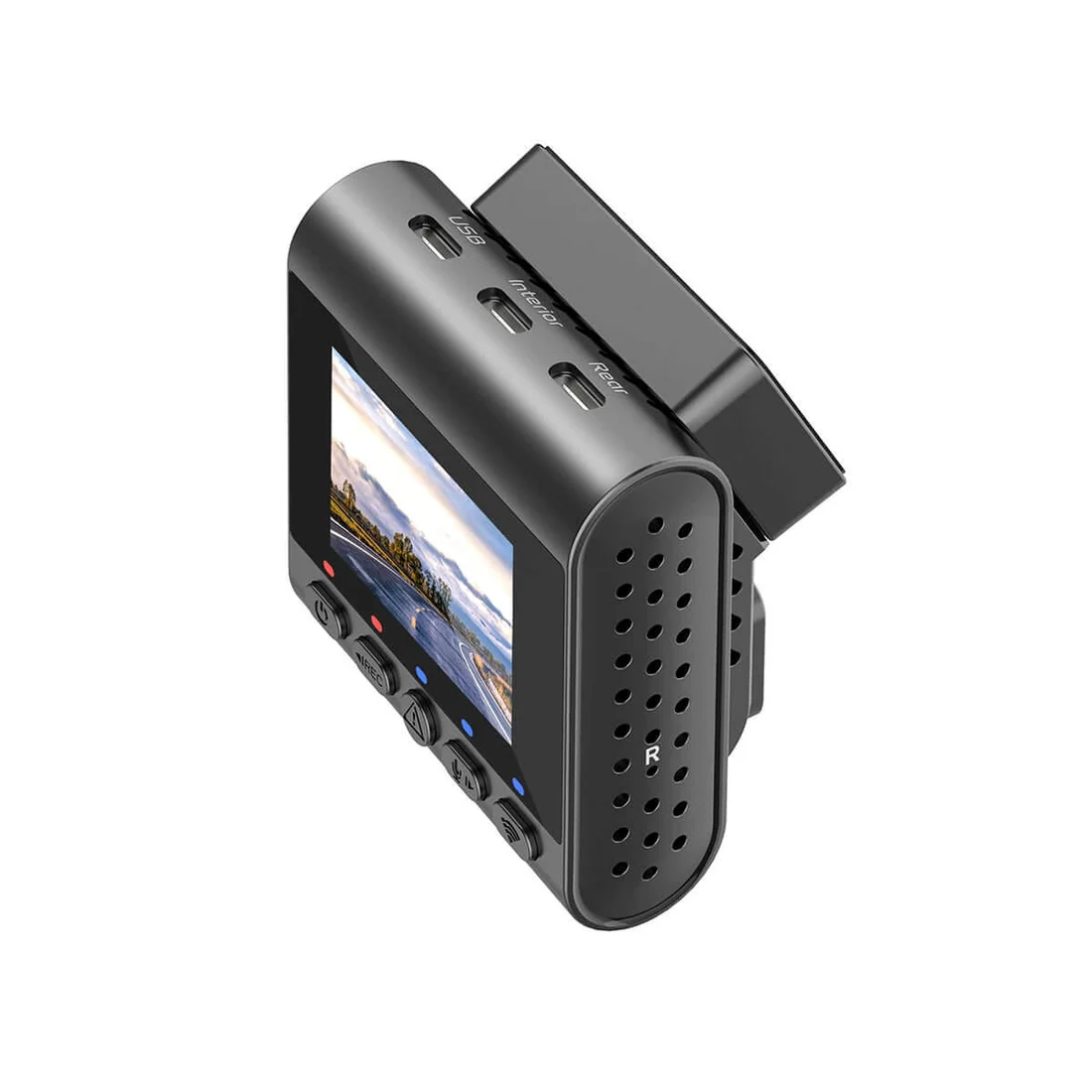

The SJCAM M60S is a 4K, three-channel vehicle dashboard camera designed to record the road ahead, the rear of the vehicle and the passenger cabin. It features a Sony STARVIS imaging system, Wide Dynamic Range (WDR), infrared interior recording, Wi-Fi connectivity and parking surveillance.
Technical specifications
| Specification | Details |
|---|---|
| Brand | SJCAM |
| Model | M60S |
| Product Type | 4K Three-Channel Dash Camera |
| Camera Configuration | Front + Rear + Interior |
| Front Image Sensor | 1/2.8-inch CMOS |
| Rear Image Sensor | 1/2.9-inch CMOS |
| Interior Image Sensor | 1/2.9-inch CMOS |
| Front Lens | 140° field of view, f/1.5 aperture |
| Rear Lens | 130° field of view, f/2.2 aperture |
| Interior Lens | 130° field of view, f/2.2 aperture |
| Maximum Front Resolution | 4K UHD (3840 × 2160) @ 30fps |
| 2K Recording | 2560 × 1440 @ 30fps |
| Full HD Recording | 1920 × 1080 @ 60/30fps |
| Rear Camera Resolution | 1080p @ 30fps |
| Interior Camera Resolution | 1080p @ 30fps |

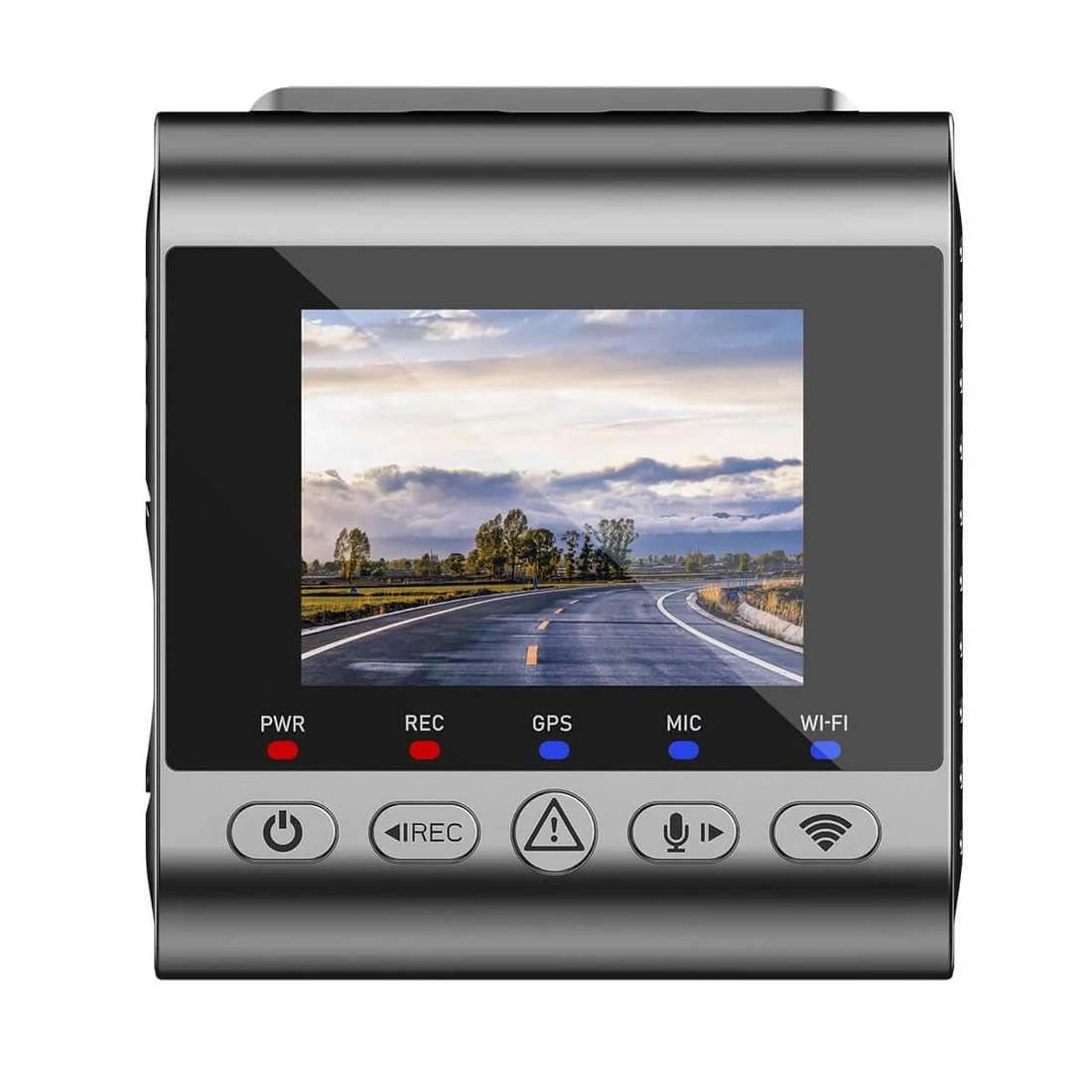

| Display | 2.0-inch TFT LCD, 320 × 240 |
| Video Format | MP4 |
| Video Compression | H.264 |
| Image Enhancement | WDR (Wide Dynamic Range) |
| Night Vision | Infrared illumination for interior camera |
| Wi-Fi | 2.4GHz, IEEE 802.11b/g/n |
| G-Sensor | Built-in collision/impact detection |
| Parking Monitoring | Collision detection, time-lapse and motion detection |
| Loop Recording | Supported |
| Emergency Video Lock | Automatic and manual |
| Audio Recording | Built-in microphone |
| Speaker | Built-in |
| Storage | microSD card up to 256GB |

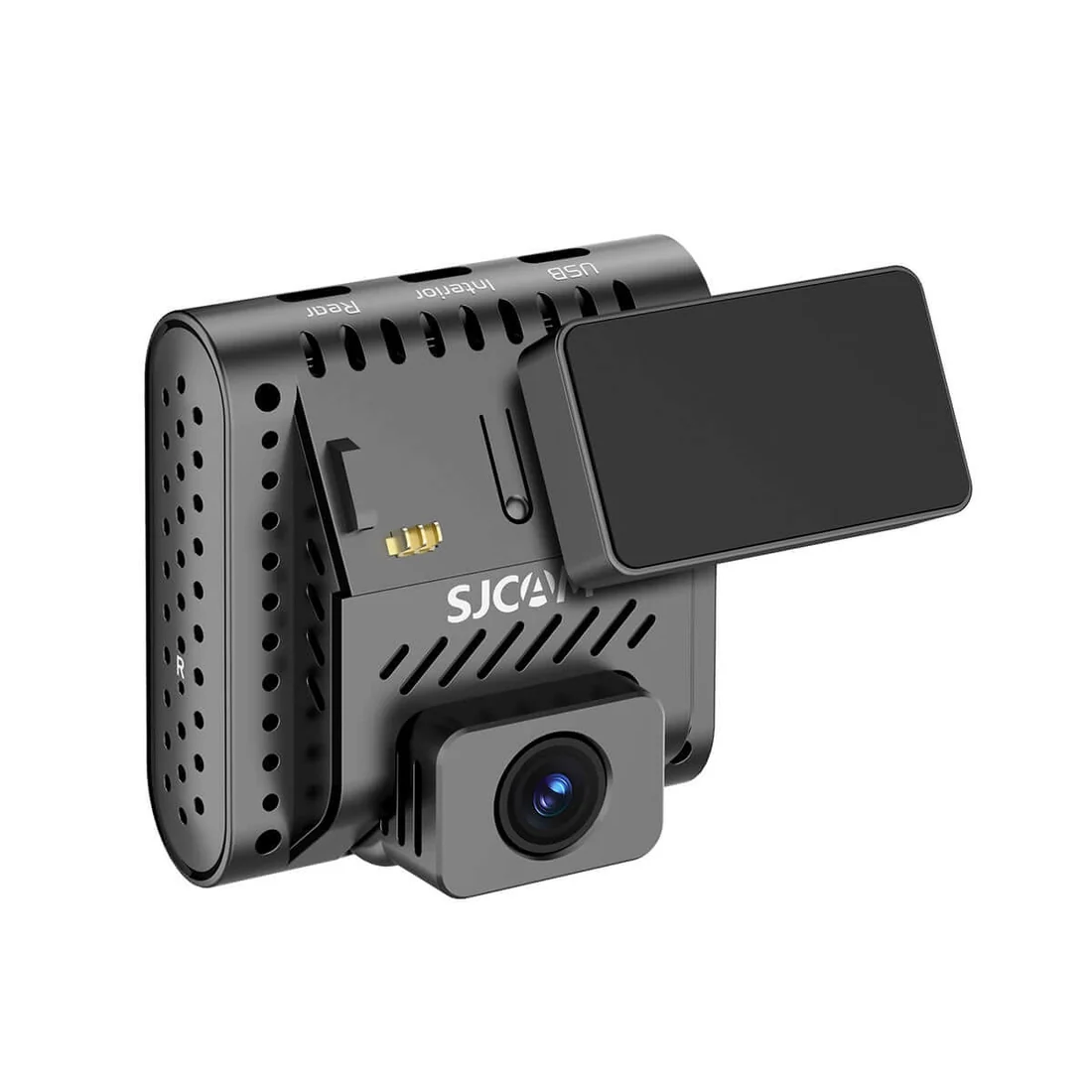

| Rear Camera Connection | USB Type-C to Type-C |
| Interior Camera Connection | USB Type-C to Type-C |
| Power Input | 5V / 2.4A |
| Operating Temperature | -20°C to +70°C |
| GPS | Not confirmed as standard equipment |
Source: SJCAM official M60S product specifications.
Supported simultaneous recording modes
| Front Camera | Interior Camera | Rear Camera |
|---|---|---|
| 4K @ 30fps | — | 1080p @ 30fps |
| 2K @ 30fps | 1080p @ 30fps | 1080p @ 30fps |
| 1080p @ 60fps | 1080p @ 30fps | 1080p @ 30fps |
| 1080p @ 30fps | 1080p @ 30fps | 1080p @ 30fps |

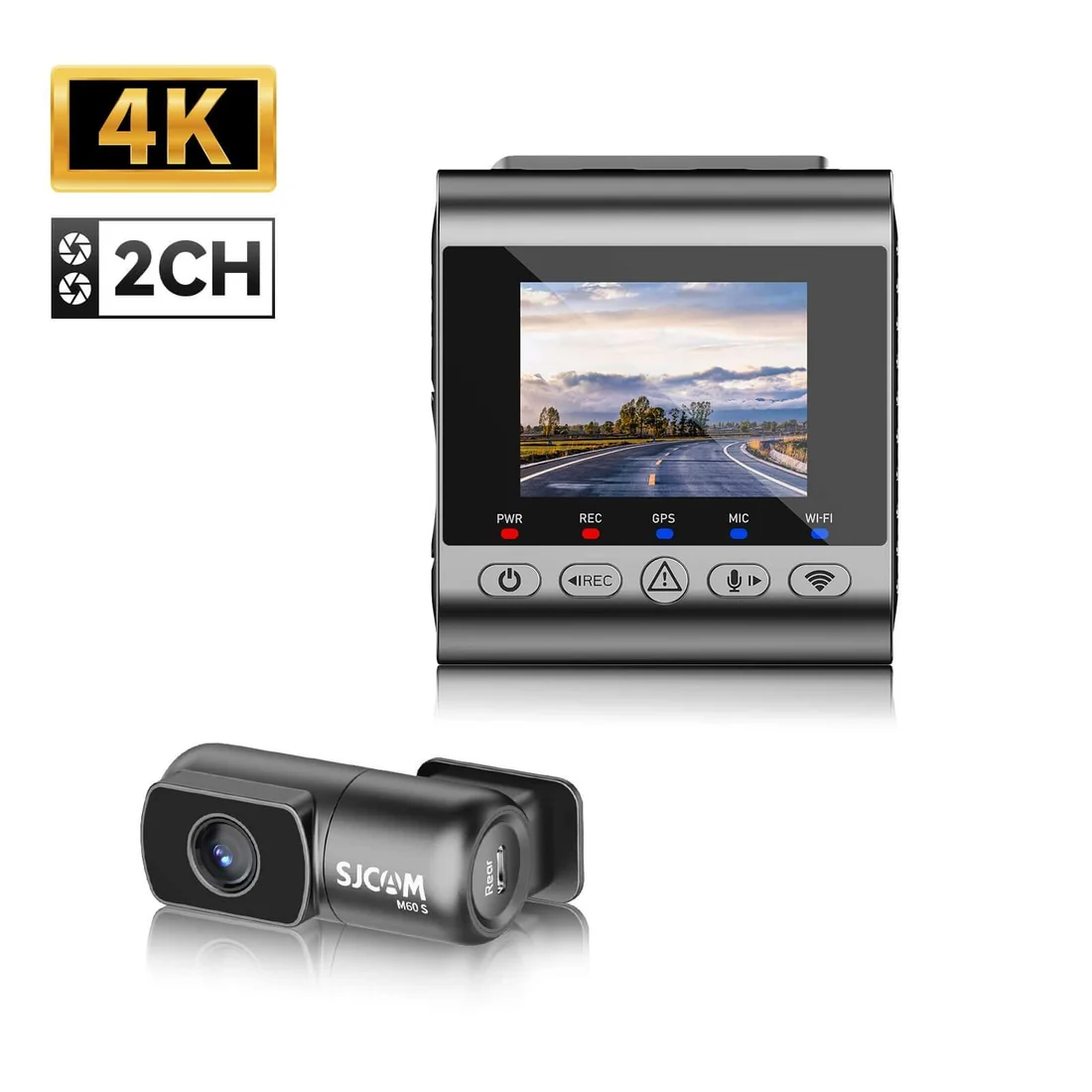

Important: The manufacturer specifies 4K front recording alongside the rear camera, while full three-channel recording is available at the other listed front-camera resolutions.
Physical specifications
| Component | Dimensions | Weight |
|---|---|---|

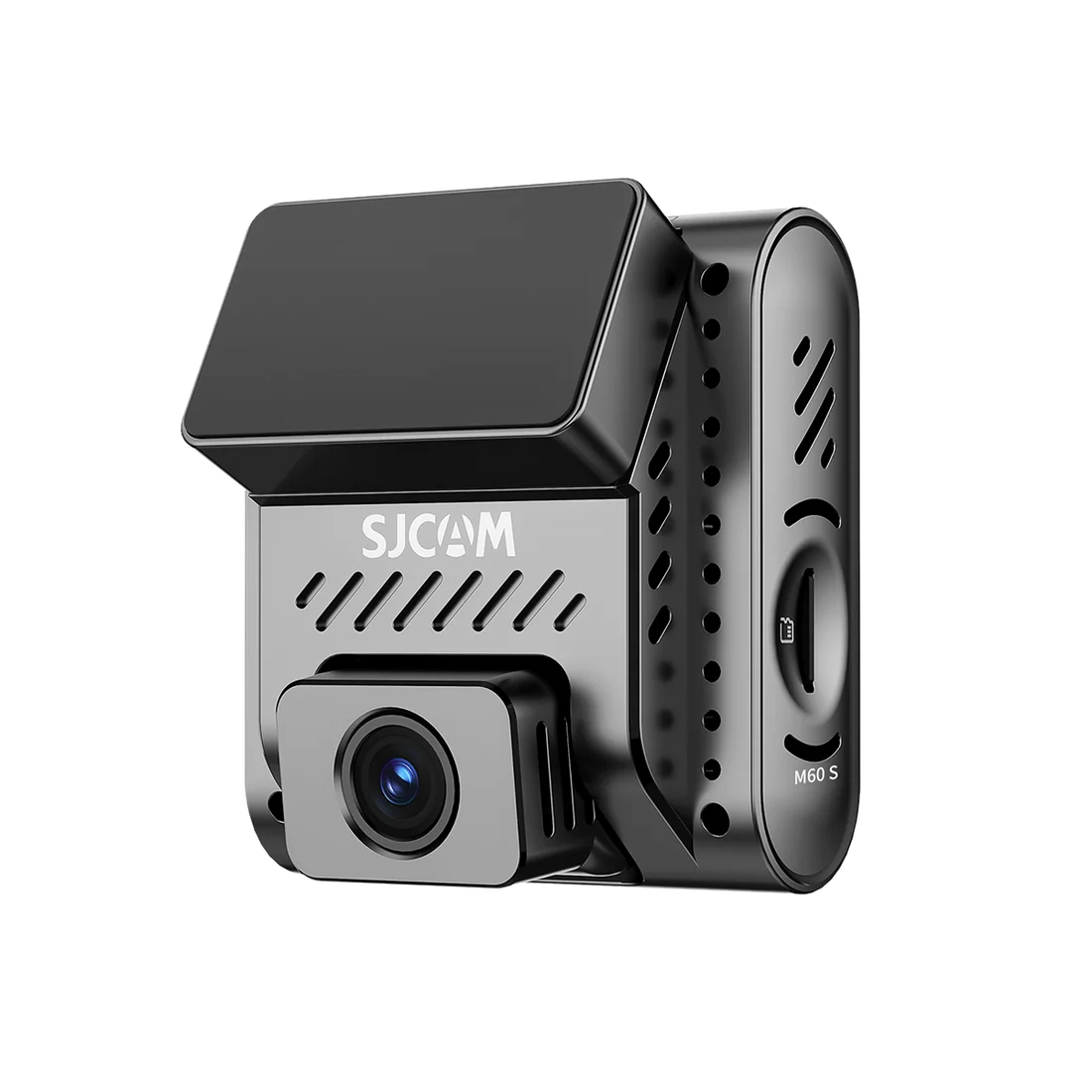

| Front Camera | 75.7 × 41.75 × 64mm | 92.3g |

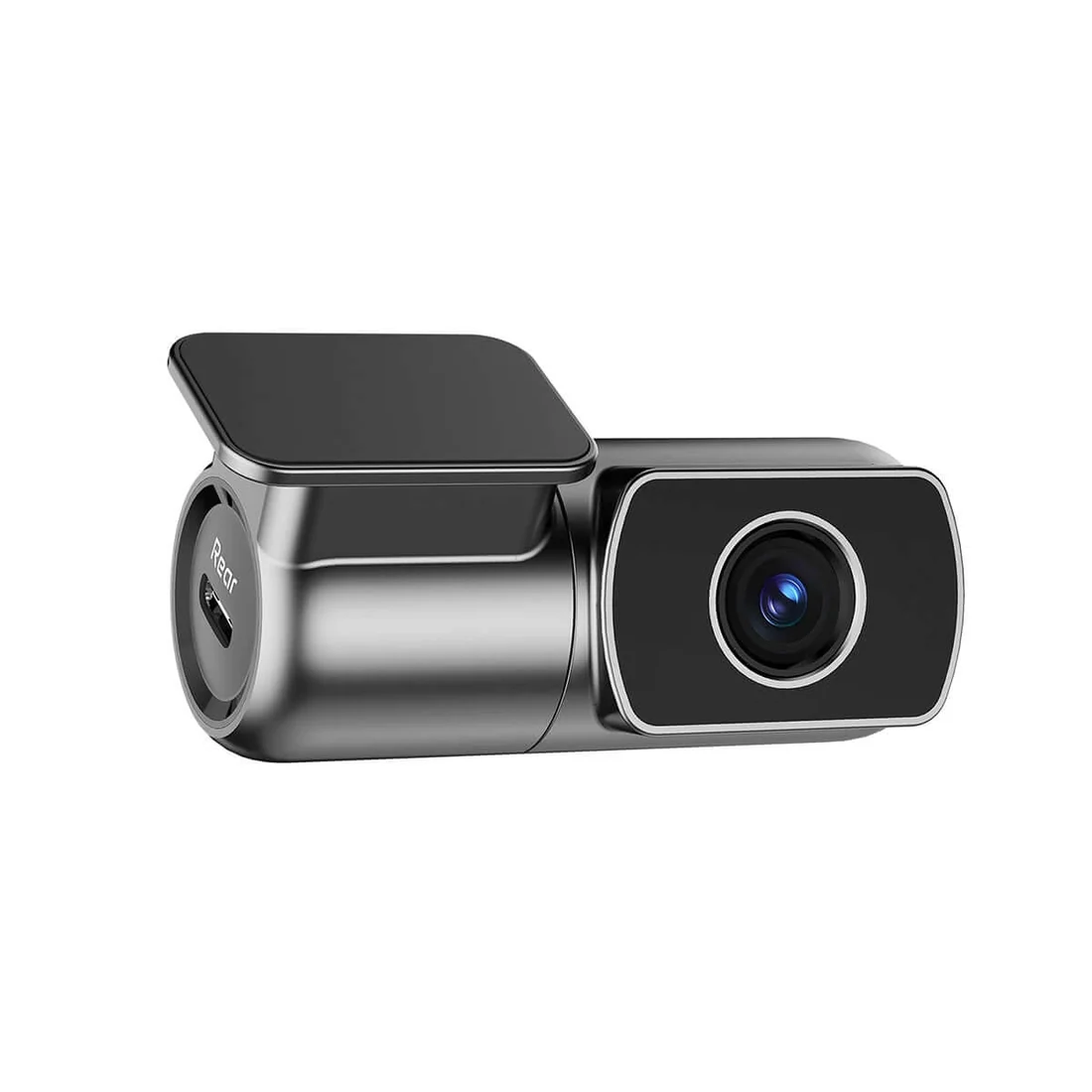

| Rear Camera | 73.5 × 35.7 × 29mm | 31.2g |
| Interior Camera | 73.5 × 35.7 × 29mm | 31.2g |
Key features
-

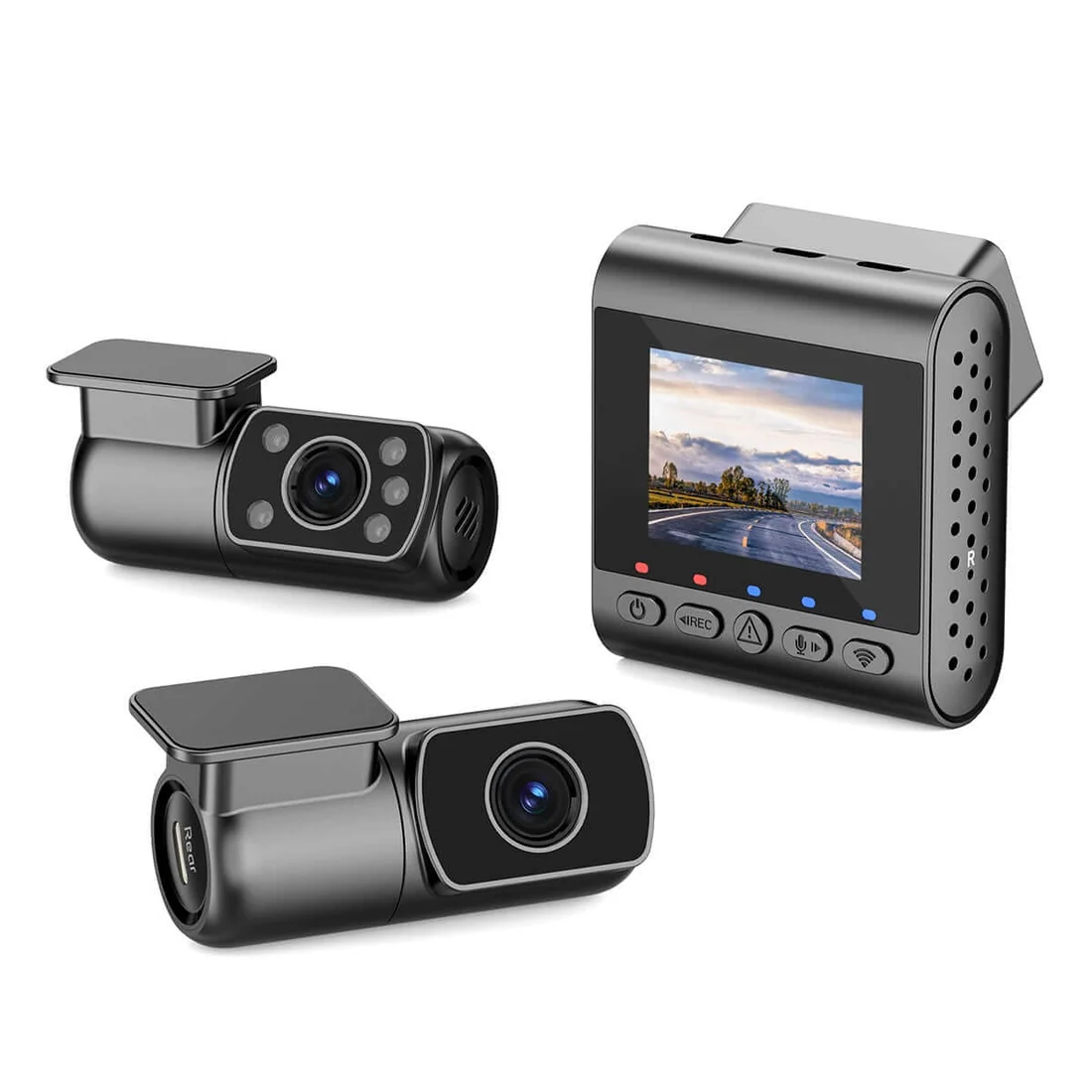

Three-channel monitoring: Records front-road, rear-road and vehicle-cabin activity.
-
Sony STARVIS and WDR: Helps capture details in challenging lighting conditions.
-

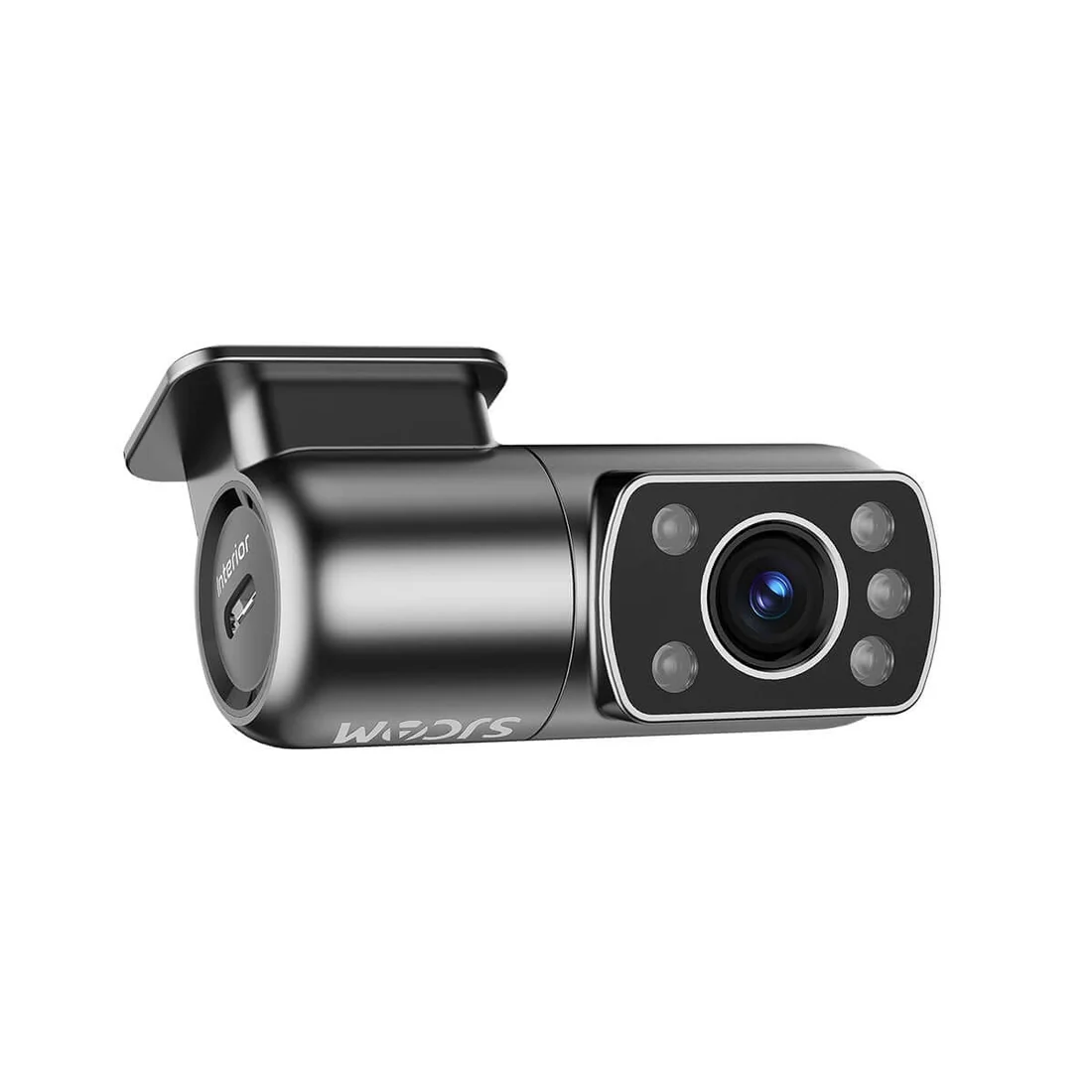

Infrared cabin camera: Supports recording inside the vehicle under low-light conditions.
-
Parking surveillance: Supports collision, motion-detection and time-lapse modes; continuous parked-vehicle monitoring requires a suitable power arrangement.
-
Emergency recording protection: G-sensor automatically locks relevant footage following an impact.
-

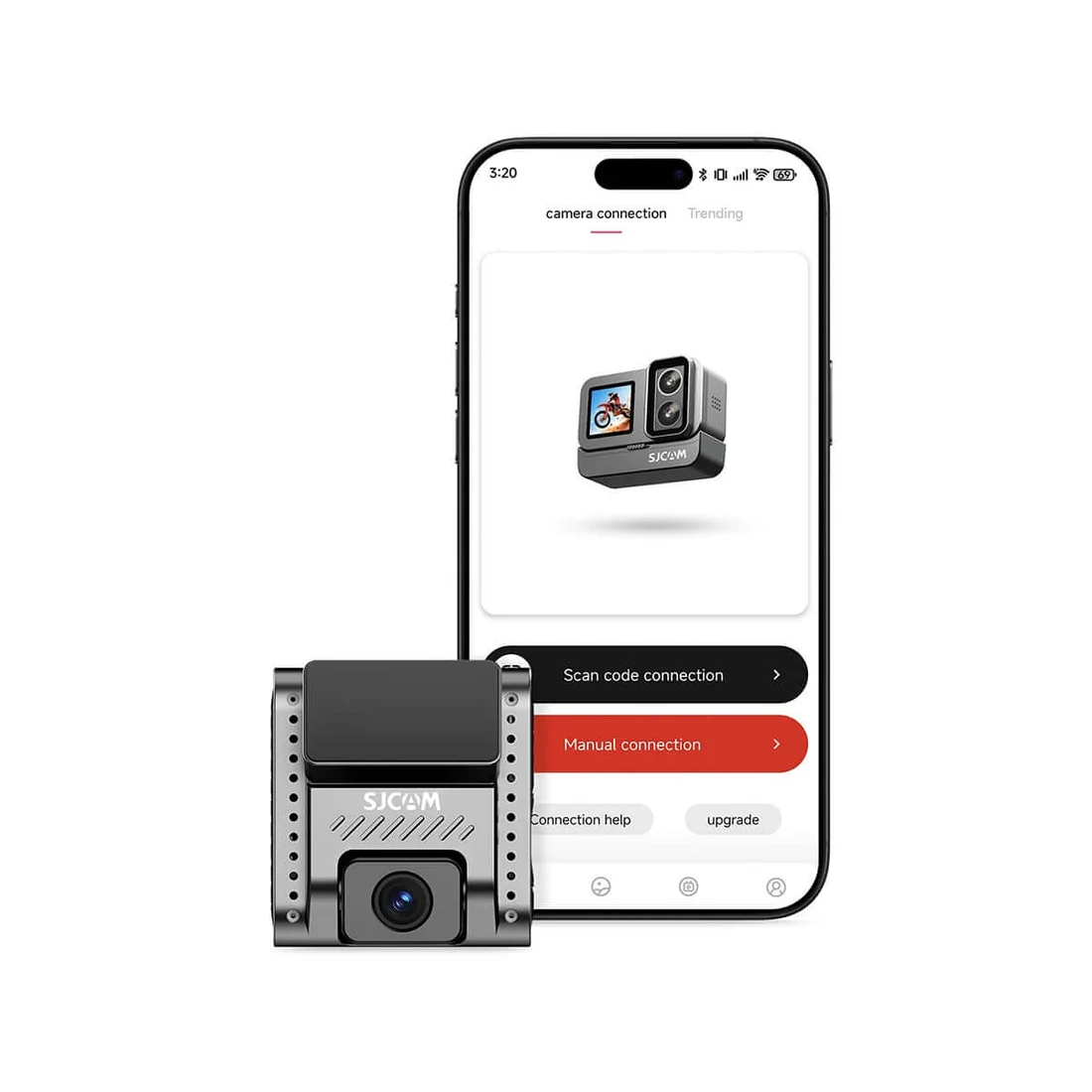

Wi-Fi connectivity: Enables smartphone viewing, playback, downloading and sharing of recordings.
-
Loop recording: Automatically overwrites older, unprotected recordings when storage becomes full.
Recommended applications
The M60S is suitable for private cars, taxis, ride-hailing vehicles, company vehicles, commercial fleets, logistics operations and other applications requiring road and cabin video evidence.
Quotation / website-ready description
SJCAM M60S 4K Three-Channel Dash Camera – Front, Rear & Interior Vehicle Recording, Sony STARVIS Imaging, 4K UHD 3840 × 2160 @ 30fps Front Camera, 1080p Rear and Interior Cameras, 140° Front Wide-Angle Lens, 130° Rear/Interior Lenses, 2.0-inch TFT LCD Display, WDR Technology, Infrared Interior Night Vision, Built-in G-Sensor, Collision Detection, 24-Hour Parking Surveillance Modes, Motion Detection, Time-Lapse, Loop Recording, Automatic Emergency Video Lock, 2.4GHz Wi-Fi, Built-in Microphone and Speaker, H.264 MP4 Recording, microSD Support up to 256GB, USB-C Camera Connections, 5V/2.4A Power Input.
