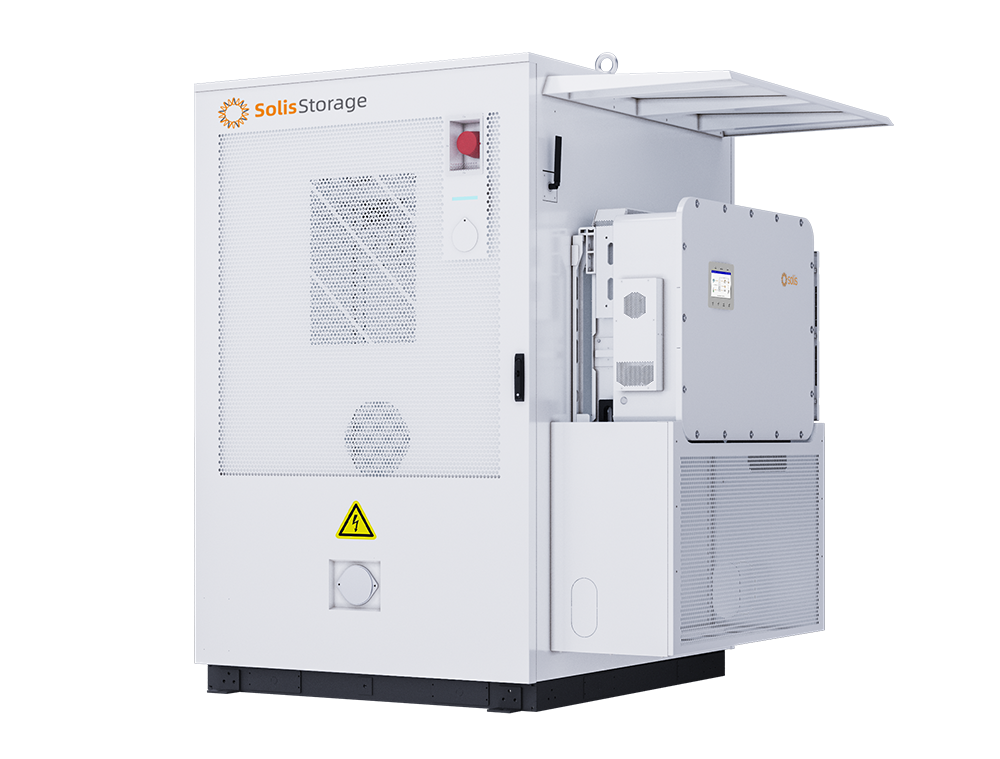

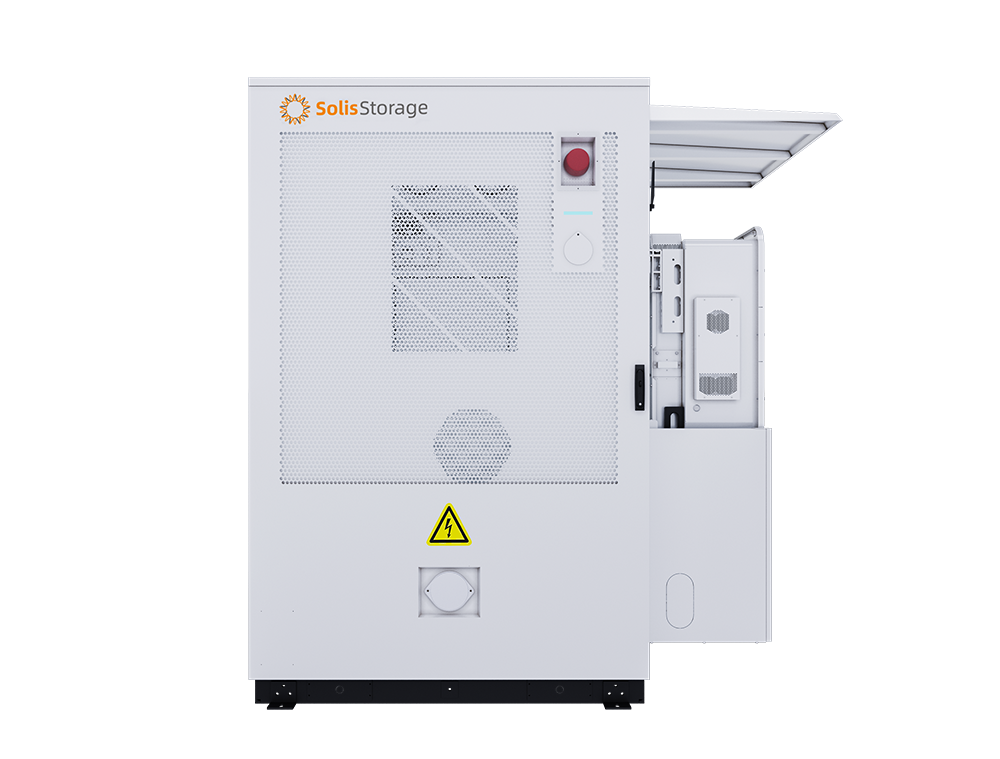

Solis EverCore 50kW / 100kWh Energy Storage System – Specifications
The Solis EverCore 100kWh-50kW is an integrated commercial and industrial (C&I) energy storage system combining a 50kW three-phase hybrid inverter, approximately 100.5kWh LiFePO₄ battery storage, PCS and energy-management functions. It is designed for commercial facilities, industrial sites, solar self-consumption, peak shaving and backup-power applications.
| Specification | Details |
|---|---|
| Brand | Solis / SolisStorage |
| Series | EverCore |
| Model / Configuration | EverCore-100kWh-50kW-NV |
| Application | Commercial & Industrial Energy Storage |
| Inverter Rated Power | 50kW |
| Rated Energy Capacity | 100.48 / 100.5kWh |
| Usable Energy Capacity | 99.3kWh per current V1.6 datasheet |
| Battery Chemistry | LFP / LiFePO₄ |
| Battery Cell | 3.2V / 314Ah |
| Battery Configuration | 1P100S |
| Rated Battery Voltage | 320V DC |
| Battery Operating Voltage | 290–360V DC |
| Rated DC Current | 157A |
| Number of Battery Packs | 5 |
| Capacity per Battery Pack | 20.1kWh |
| Battery Cycle Life | 8,000 cycles |
| Maximum Cycle Rate | 0.5P |
| Maximum Cycle Efficiency | 89% |
| Depth of Charge/Discharge | 0–100% |
| Hybrid Inverter Model | S6-EH3P50K-H(21A) |
| Rated AC Output | 50kW |
| Maximum Apparent Output Power – On Grid | 50kVA |
| System Type | Three-phase hybrid PV + battery ESS |
| Backup Switching | <10 ms |
| Battery Cabinet Protection | IP55 |
| Inverter Protection | IP66 |
| Operating Temperature | -25°C to +55°C |
| Operating Humidity | ≤95%, non-condensing |
| Maximum Operating Altitude | 4,000m |
| Dimensions (W × H × D) | 1250 × 2030 × 1540mm |
| Battery Cabinet Weight | Approx. 1,490kg |
| Inverter Weight | Approx. 73kg |
| Monitoring / Management | Integrated EMS with SolisCloud monitoring |
These values are from SolisStorage’s current EverCore product information and the EverCore-(100–261)kWh-(50–125)kW Global Datasheet V1.6.
Key Features
The EverCore uses an integrated architecture combining PCS, PV, STS and EMS with centralized control. Solis specifies support for both AC and DC expansion, rapid backup switching of under 10ms, an IP66 inverter and IP55 battery cabinet, and multiple levels of battery/system protection.
The 100kWh battery cabinet contains five 20.1kWh battery packs using 314Ah LFP cells. Solis also supports modular battery expansion within the EverCore platform.
Short quotation description:
Solis EverCore-100kWh-50kW-NV Commercial & Industrial Energy Storage System, 50kW Three-Phase Hybrid Inverter, 100.5kWh LiFePO₄ Battery Capacity, 99.3kWh Usable Energy, 320V Battery System, 314Ah LFP Cells, 8,000 Cycle Life, Integrated PCS/PV/STS/EMS, <10ms Backup Switching, IP55 Battery Cabinet & IP66 Inverter, SolisCloud Intelligent Energy Management.
