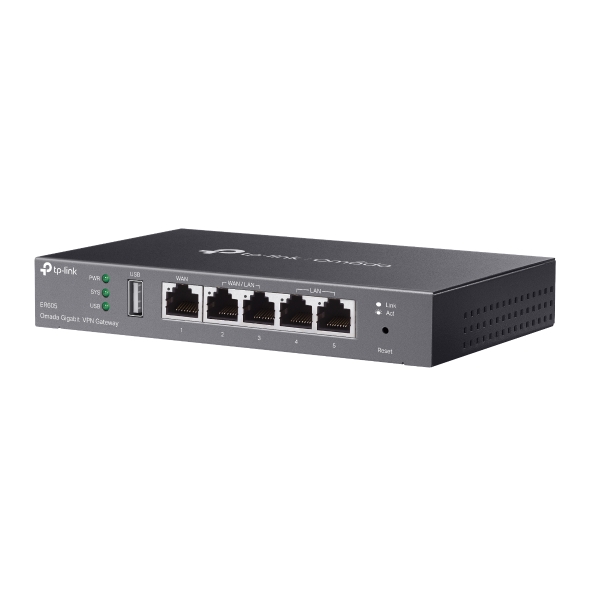

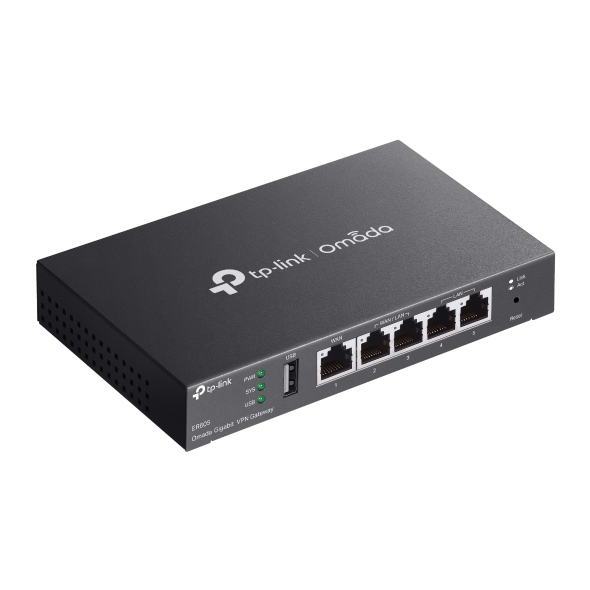

TP‑Link ER605 Omada Gigabit VPN Gateway

TP‑Link ER605 Omada Gigabit VPN Gateway

₦95,500.00 inc Vat (₦102,662.50)

Brands:TP-Link
  • Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for convenience and easy management.
  • Five Gigabit Ports: High-speed wired connectivity.
  • Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
  • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
  • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Finance Schemes
Call 08112710155 To Place Your Order

Check Availability At

Pincode field should not be empty!
Add to Wishlist
Add to Wishlist
SKU: ER605 Category:

Description

SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface • 1 Gigabit WAN port
• 2 Gigabit LAN/WAN ports
• 2 Gigabit LAN ports
• 1 USB2.0(supports USB LTE dongle‡)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button

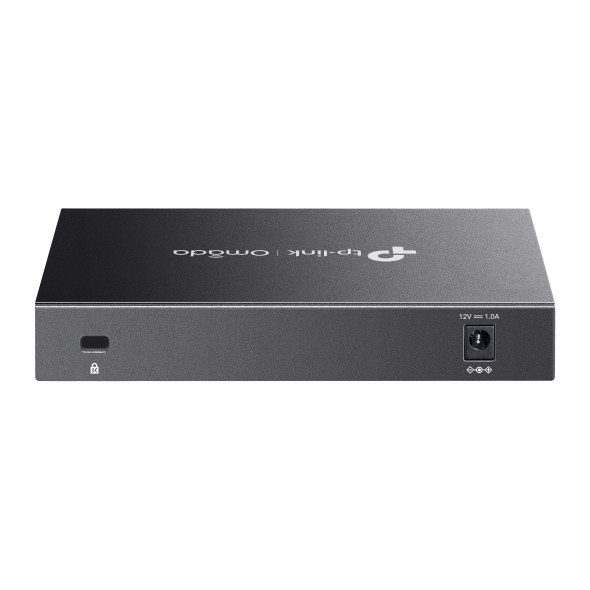

Power Supply External 12V/1A DC Adapter
PoE Budget –
Flash 128 MB NAND
DRAM 256 MB DDR
LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Protection 4 kV surge protection
Enclosure Steel

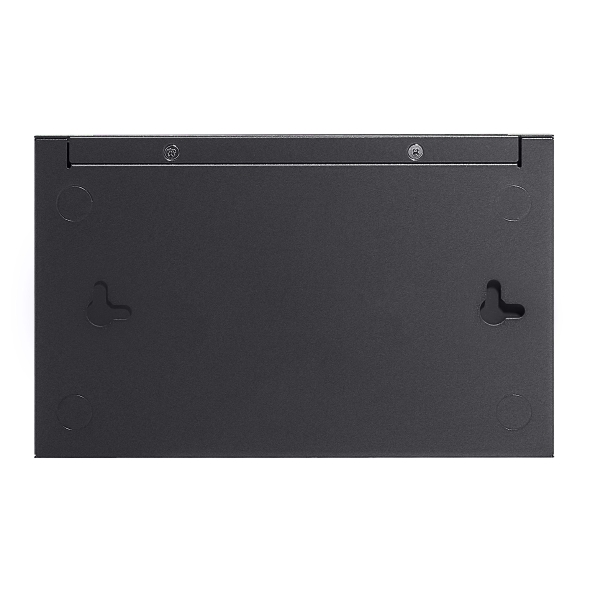

Mounting Desktop/Wall-mount
Max. Power Consumption 7.94 W
PERFORMANCE
Concurrent Session 150,000
New Sessions /Second 2,600
NAT (Static IP) • Upload: 945.77 Mbps
• Download: 938.79 Mbps
• Bi-Directional: 1808.29 Mbps
NAT(DHCP) • Upload: 945.54 Mbps
• Download: 945.66 Mbps
• Bi-Directional: 1802.77 Mbps
NAT(PPPoE) • Upload: 939.71Mbps
• Download: 939.43 Mbps
• Bi-Directional: 1788.54 Mbps
NAT (L2TP) • Upload: 815.55 Mbps
• Download: 835.59 Mbps
• Bi-Directional: 903.13 Mbps
NAT (PPTP) • Upload: 813.23 Mbps
• Download: 850.91 Mbps
• Bi-Directional: 894.41 Mbps
66 Byte Packet Forwarding Rate • Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps
1,518 Byte Packet forwarding rate • Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 259.78 Mbps
• ESP-SHA256-AES256: 260.81 Mbps
• ESP-SHA384-AES256: 37.65 Mbps
• ESP-SHA512-AES256: 38.32 Mbps
GRE Unencrypted: 460.97 Mbps
Encrypted: 161.83 Mbps
OpenVPN • 21.70 Mbps
L2TP VPN Throughput • Unencrypted: 640.99 Mbps
• Encrypted: 77.31 Mbps
PPTP VPN Throughput • Unencrypted: 759.55 Mbps
• Encrypted: 75.80 Mbps
DPI Throughput TCP: 905 Mbps;
UDP: 788 Mbps
SSL VPN Throughput –
WireGuard VPN Throughput • 123.4 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
Stateful ACL √
Quality of Service √
Bridge VLAN √
mDNS Repeater √
IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing • Static Routing
• Policy Routing
• RIP§
• OSPF§
Bandwidth Control IP-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
GRE √ (Only in Standalone Mode)
SD-WAN √ (Only in Controller Mode)
IPsec VPN • 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10) **
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10) **
• 16 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
• “Certificate + Account” Mode
• Full Mode
WireGuard VPN • 20 Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password
• Hotspot（Local User / Voucher†/ SMS†/ Radius†）
• External Radius Sever
• External Portal Sever†
• LDAP§
Management Features
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Content • ER605
• Power Adapter
• RJ-45 Ethernet Cable
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
For additional version information, please go to the support page.

‡For the complete compatibility list of 4G/3G modem, go to https://www.tp-link.com/en/er605/compatibility/

*These functions requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller.

† These functions are supported only in Controller Mode.

§ These functions are supported only in Standalone Mode.

△For OpenVPN: When set up as a VPN server, each WAN port can connect with up to 10 VPN clients. At the same time, the ER605 can work as a VPN client to connect with up to 10 VPN servers. The total number of OpenVPN tunnels is limited to 16.

**For PPTP and L2TP VPN: ER605 can work as a VPN client and can connect with up to 10 VPN servers.

***Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

Additional information

Weight 1 kg
